Modular tooling system for lane tooling in a conversion press and method for the use thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 31, 2001
Grant Date -
N/A
app pub date -
Aug 25, 1999
filing date -
Oct 6, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

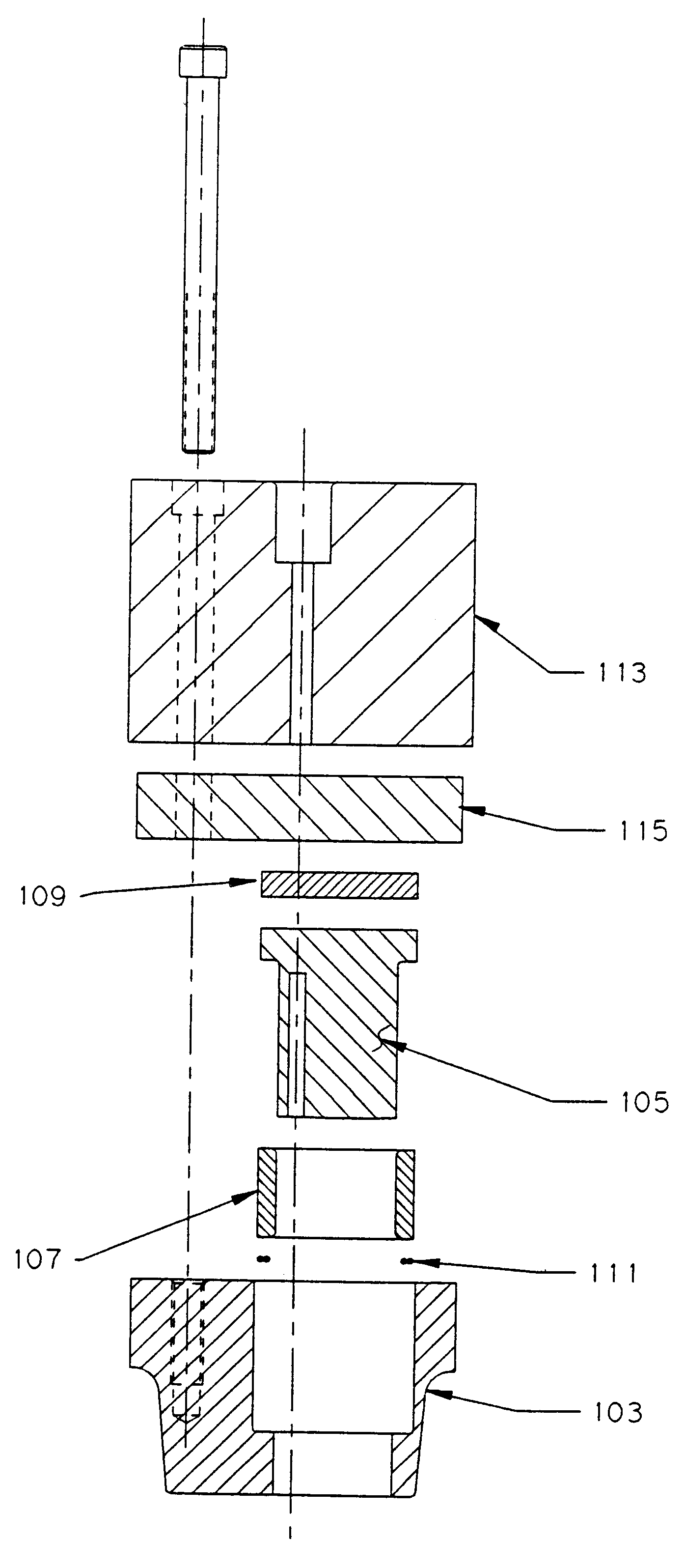

A modular tooling system for use in combination with a conversion press has an upper base member adapted to be removably mounting into the conversion press, a tooling holder, a tooling insert and means for retaining the tooling insert within the tooling holder. The tooling holder is adapted for attachment to the upper base member. The tooling holder defines a chamber therein extending therethrough. The chamber includes a shoulder portion. The tooling insert is adapted to be removably mounted in the tool holder. The insert has a first end, a second end, and a shoulder portion adapted to cooperate with the tooling holder shoulder portion. Bushings and spacers secure the insert within the tooling holder. Both the tooling holder chamber and the tooling insert are of a predetermined cross section which are adapted to correspond with each other and define a keyed relationship.
