Arrangement for a ring spinning machine for condensing a fiber strand and method of making same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 24, 2001
Grant Date -
N/A
app pub date -
Jul 27, 1999
filing date -
Aug 10, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

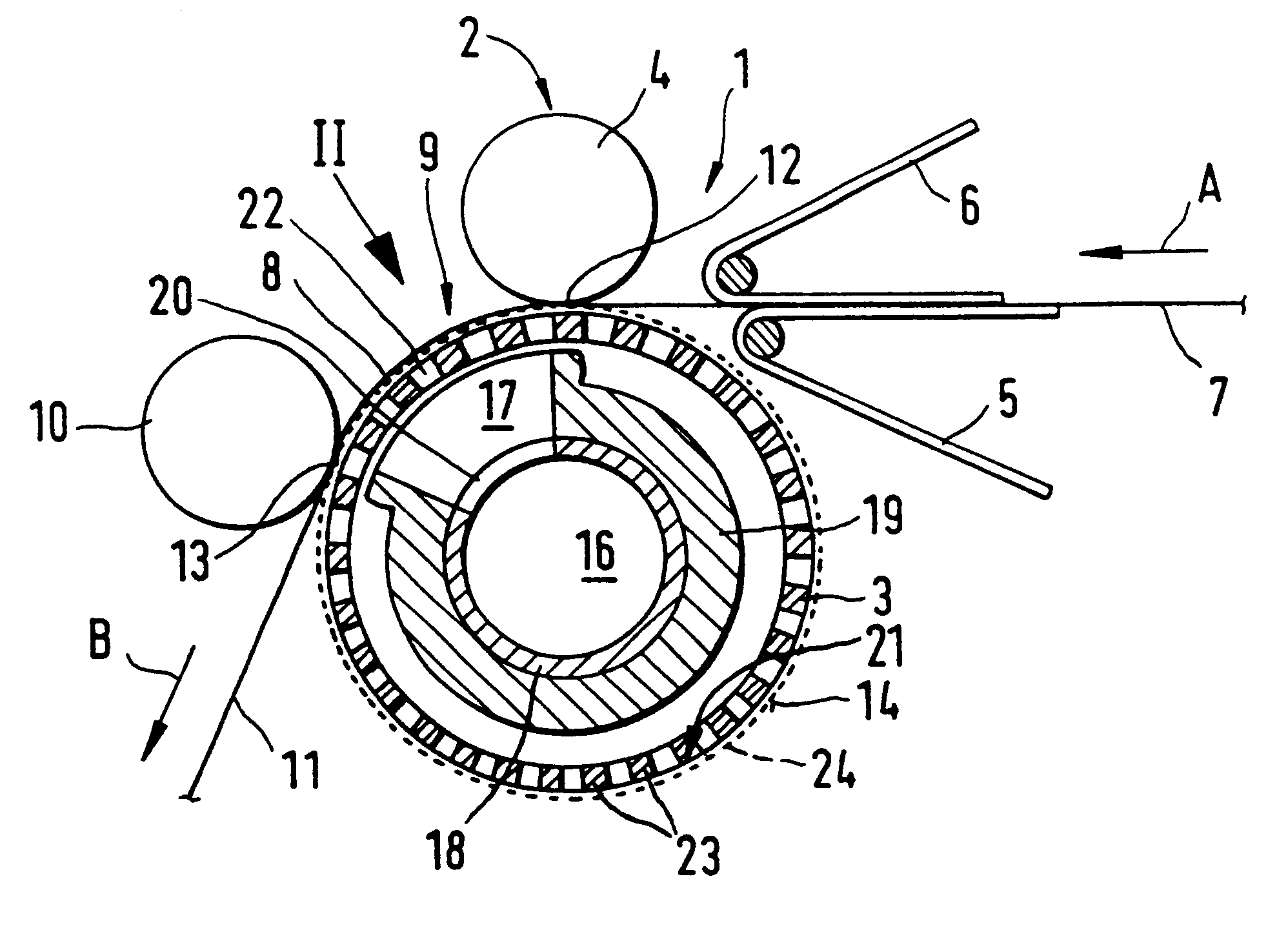

An arrangement for a ring spinning machine for condensing a drafted but untwisted fiber strand includes a drum which transports the fiber strand through a condensing zone. The drum is provided on its outer sleeve with a perforation. In order that the perforation can be particularly fine and close-meshed, the outer sleeve of the drum forms a supporting skeleton, which comprises openings, which are covered over by a thin sieve belt, preferably a woven tape. The sieve belt extends over a suction slit located in the condensing zone. The skeleton is so formed that in the area of nipping points, formed together with the drum, the skeleton is sufficiently resistant.
First Claim
Other Claims data not available
