Coulter assembly with an inside floating scraper assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2001
Grant Date -
N/A
app pub date -
Mar 15, 1999
filing date -
Feb 27, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

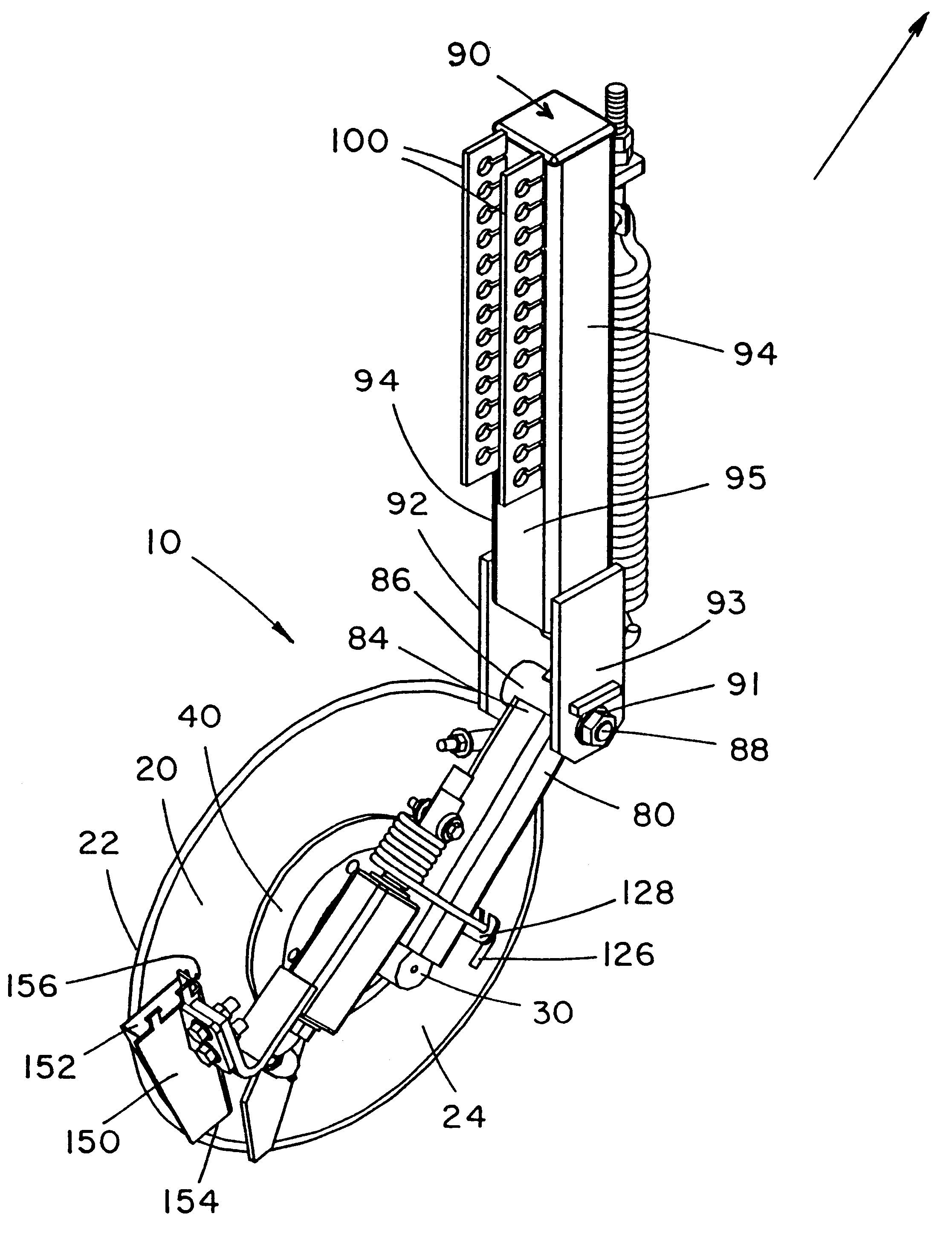

A coulter assembly is provided to create furrows in a field, while at the same time reducing the amount of soil and debris which accumulates on the coulter disc. The coulter assembly has a disc for creating furrows, with a floating scraper blade on the inner side to keep the inner side of the disc free of debris. The scraper blade also assists in maintaining the furrow once it has been opened by the disc. The scraper blade has a leading edge constructed of carbide and inserts attached to the scraper blade for reducing wear on the scraper blade during operation. A tine extends across the outer side of the disc in a configuration that prevents soil from adhering to the outer side of the disc, and in trash covered fields, trash will wrap around the tine to act as an organic wear pad between the disc and the tine.
First Claim
Other Claims data not available
