Clip for retaining a water spray nozzle within a pick box of a cutting head
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 10, 2001
Grant Date -
N/A
app pub date -
Jul 20, 1998
filing date -
Aug 22, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

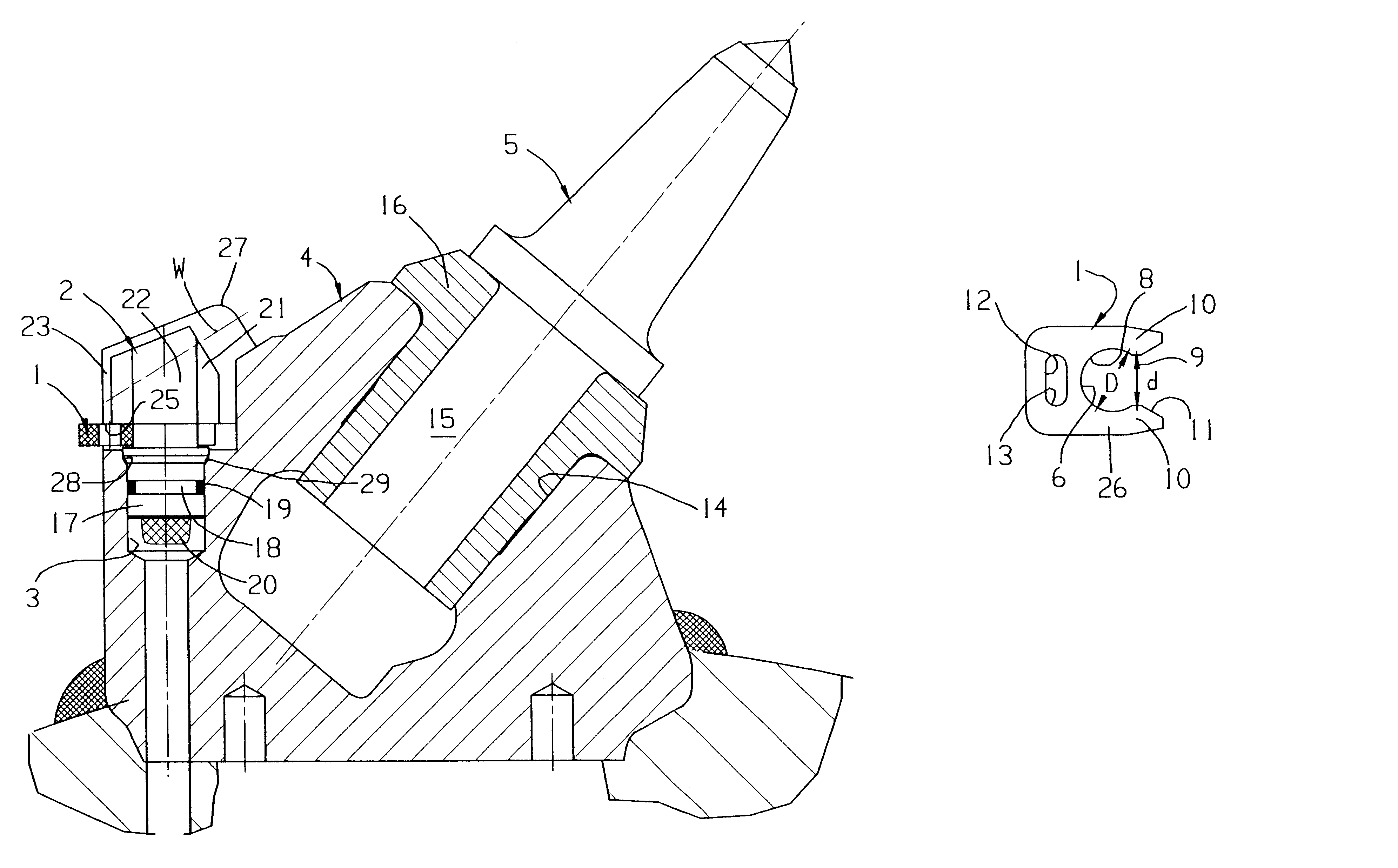

A push-in, prise-out, clip (1) for releasably retaining a replaceable water spray nozzle (2) in a receiving bore (3), comprises a plate-like member of suitable resilient material, generally of 'V' or 'U'-shape having 'C'-shaped recess (6) subtending an arc greater than 180.degree. and adapted, in use, to engage a correspondingly arcuate waist portion (7) of the water spray nozzle (2). The recess (6) is defined in part by arcuate profiles (8) on mutually facing, inner surfaces (9) of each arm (10) of the 'V' or 'U', which arms (10) are adapted to splay apart resiliently during the fitting and the removal of a clip on the water spray nozzle (2), whilst a portion of the clip (1) is provided with a clip retraction surface (12). The invention also includes a water spray nozzle (2), a pick box (4), and a rotary mineral cutting head (36).
First Claim
Other Claims data not available
