Pistol having a safety for preventing accidental firing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 3, 2001
Grant Date -
N/A
app pub date -
Jun 4, 1999
filing date -
Jun 4, 1999
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

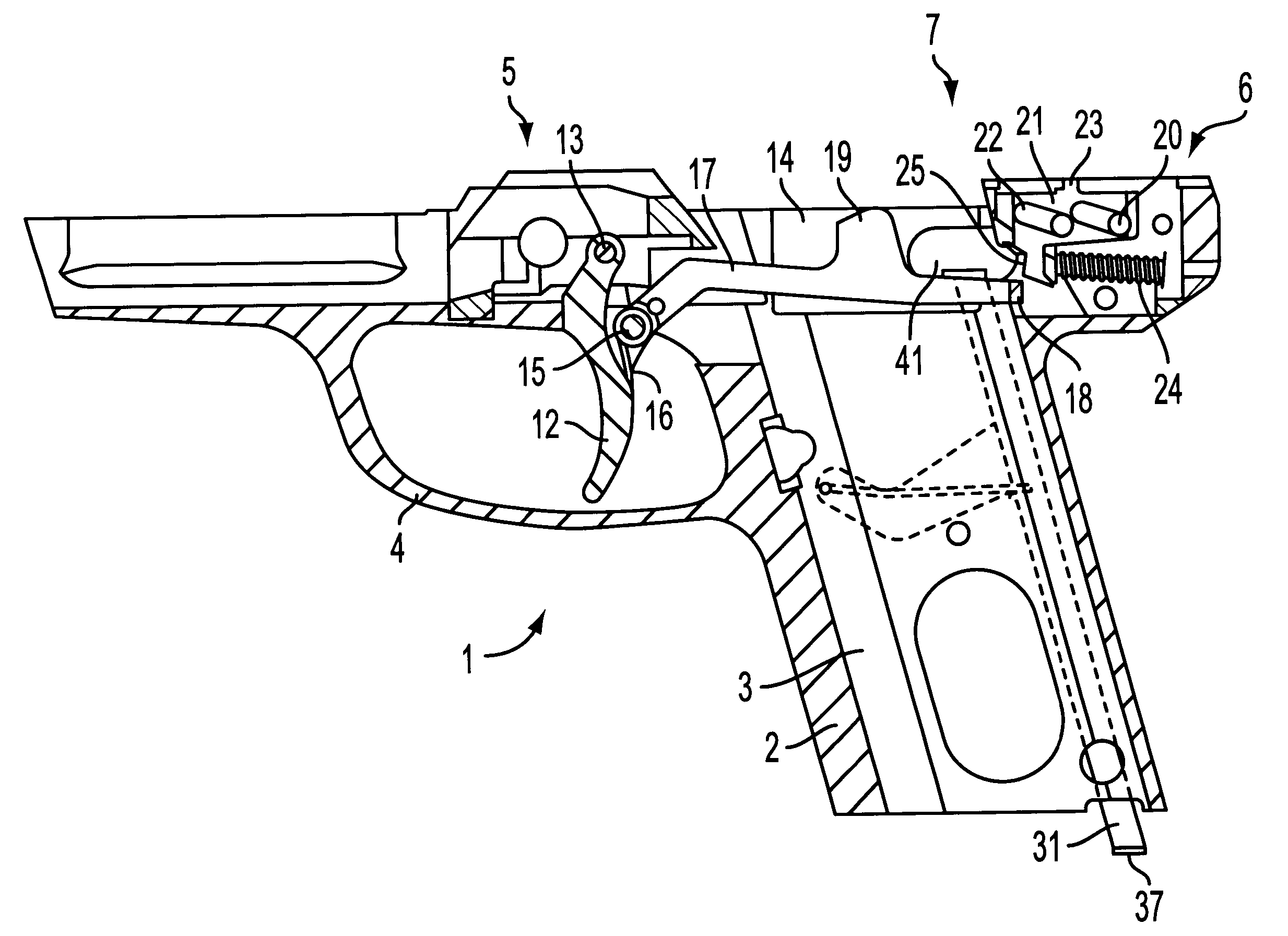

The pistol comprises a frame. A trigger is mounted in the frame and is pivotable between a release position and a firing position and spring urged into the release position. The frame comprises a grip portion with a magazine well in which a magazine is removably inserted. A trigger bar is pivotally attached to the trigger and spring urged upwardly. The trigger bar has an abutment member at its rear end which coacts with a sear member that is movably mounted in the frame. A safety member is mounted on the grip portion and is movable between two positions. At its upper end the safety member has a catch for engaging the trigger bar. A second spring urges the safety member into its first position in which the catch pulls the trigger bar down out of engagement with the sear member. The safety member has an abutment face which is engaged by a part of the magazine when the latter is inserted. The part pushes the safety member into its second position in which the catch is out of engagement with the trigger bar.
