Method and apparatus for inserting an insert into a cover
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 3, 2001
Grant Date -
N/A
app pub date -
Jul 6, 1998
filing date -
Apr 5, 1996
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

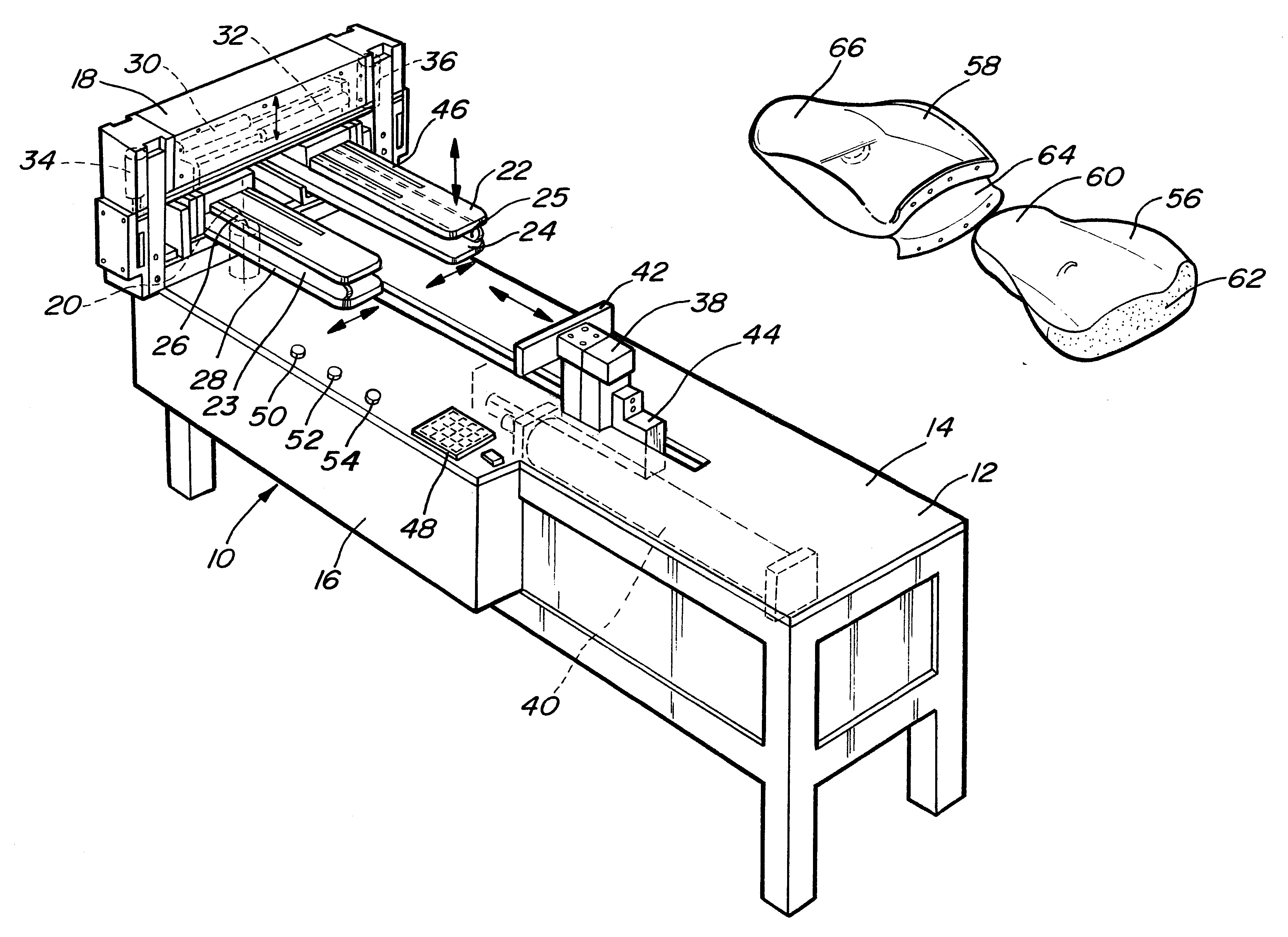

A method and apparatus for inserting a supporting insert, such as a set insert (bun) for a vehicle, into a cover, such as a seat cover for a vehicle. The apparatus of the present invention includes a bench upon which a cover holding assembly and a stuffing bracket are provided. The holding assembly comprises four self-adjusting blades which are substantially grouped together at the beginning of the fitting cycle. After an inside-out seat cover's open end is fitted onto the blades, the blades move away from each other into the corners of the cover to expand the cover to its maximum size. The insert is then positioned between the top (closed) end of the covering material and the stuffing bracket. The stuffing bracket then drives the seat insert into the inside-out covering material, gradually turning the material outside-out as the insert is moved forward.
First Claim
Other Claims data not available
