Furnace video camera apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 29, 2001
Issued Date -
N/A
app pub date -
Dec 8, 1999
filing date -
Sep 26, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

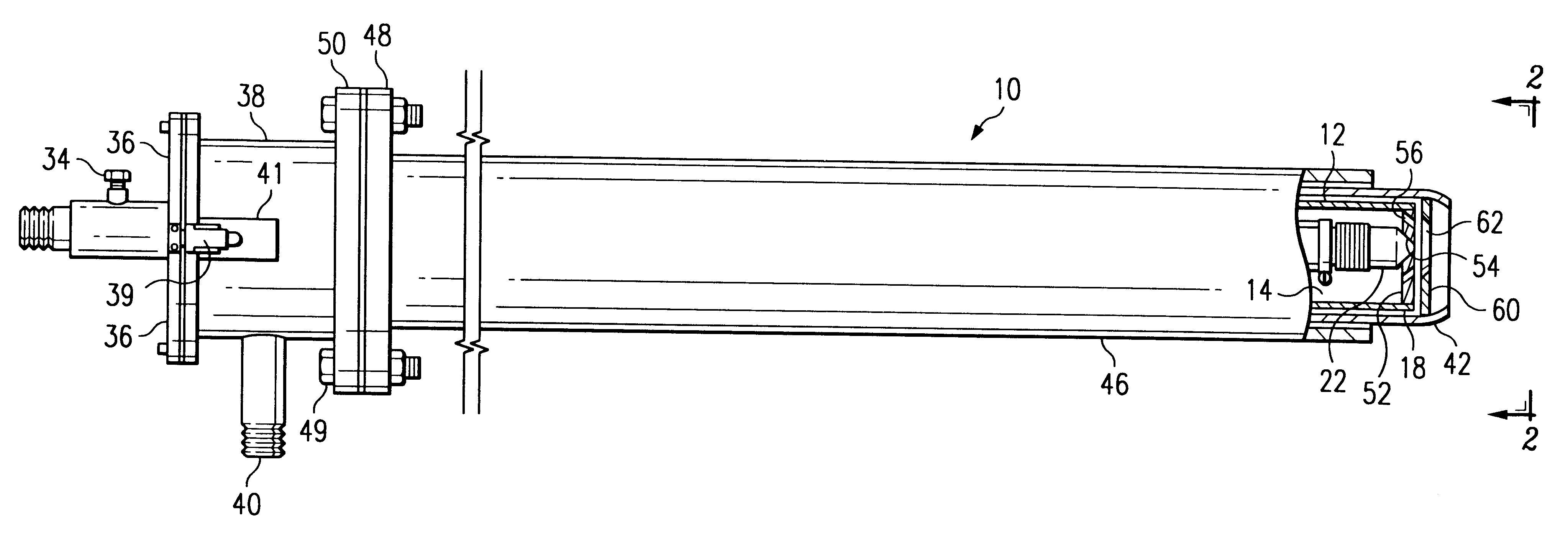

A high temperature camera apparatus having an elongated steel camera housing tube and an elongated steel camera housing tube and an elongated camera support member, supporting a video camera at the furnace interior end of the camera housing tube. A ceramic heat shield tube telescopically surrounds at least a portion of the camera, and preferably the portion of the camera housing tube which contains the camera. The exterior surface of the camera housing tube is plated and polished to provide a highly reflective surface, and the ceramic heat shield tube is telescopically surrounded by an outer steel tube. The ceramic heat shield is spaced in position around the camera housing tube by a plurality of spacers projecting outwardly from the outer surface of the camera housing tube. A steel end plate is fixed at the furnace interior end of the camera housing tube, and is provided with an image hole aligned with the image axis of the camera, and a plurality of spaced ventilation holes surrounding the image hole. A ceramic end plate is mounted in an inturned end of the ceramic heat shield tube, and seated against a plurality of spacers distributed on the steel end plate by a plurality of springs. Alternatively, the ceramic heat shield is mounted to the end plate with a tubular shroud within it. A liquid coolant jacket may also be formed on radially opposite sides of the camera housing tube.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- H04N Class
- 1.83 % this patent is cited more than
- 24 Age
