Ball stud, method and apparatus for production thereof, and ball joint
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2001
Grant Date -
N/A
app pub date -
Jun 2, 1999
filing date -
Jun 9, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

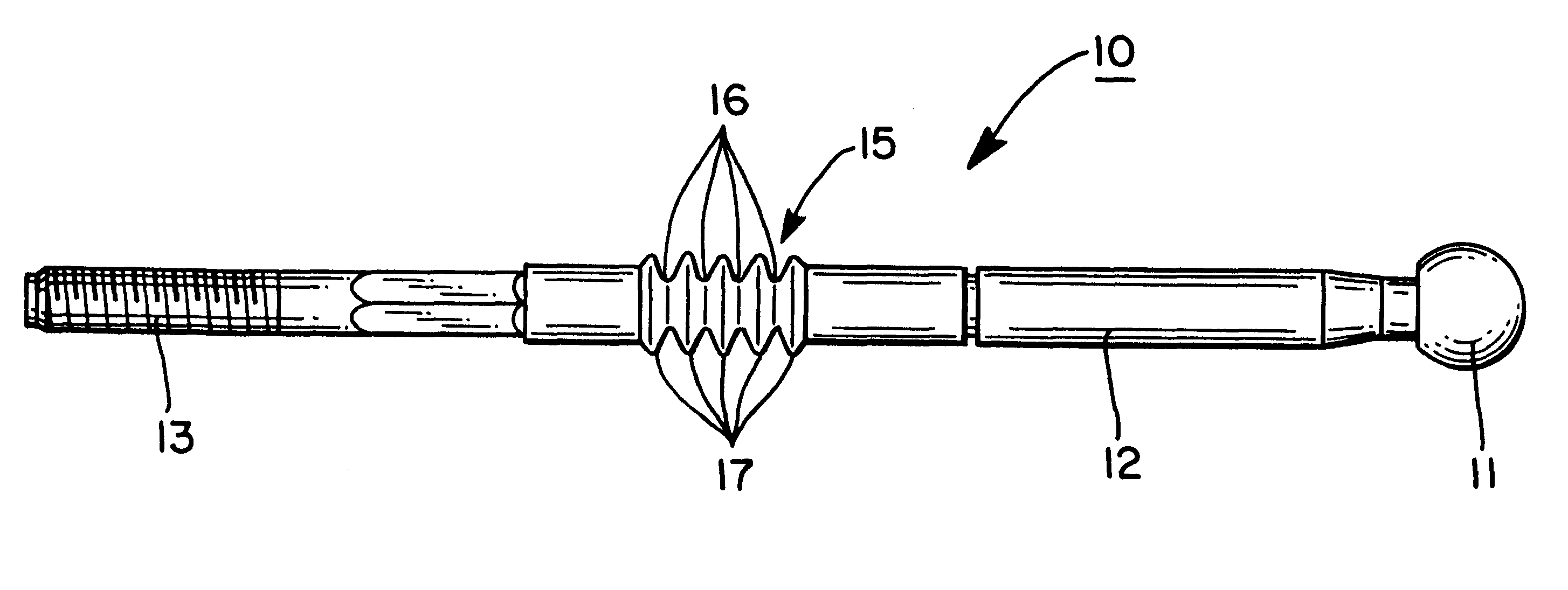

A ball stud has a buckle portion designed to buckle under an appropriate amount of longitudinal pressure. The buckle portion is formed by a rolling process resulting in furrowed portions and raised portions integrally formed in an accordion shape along a portion of the ball stud. The raised portions are formed from the surplus material displaced from forming the furrowed portions. The buckling strength is variable depending on the number of furrowed portions and raised portions in the ball stud. A ball head, connected to the ball stud is inserted into an opening of a housing. The process of making the ball stud requires minimal pressure in the rolling process, resulting in reduced production costs and roller wear.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16C Class
- 3.29 % this patent is cited more than
- 24 Age
