Method and device for bonding solder balls to a substrate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2001
Grant Date -
N/A
app pub date -
Apr 16, 1998
filing date -
Jun 20, 1997
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

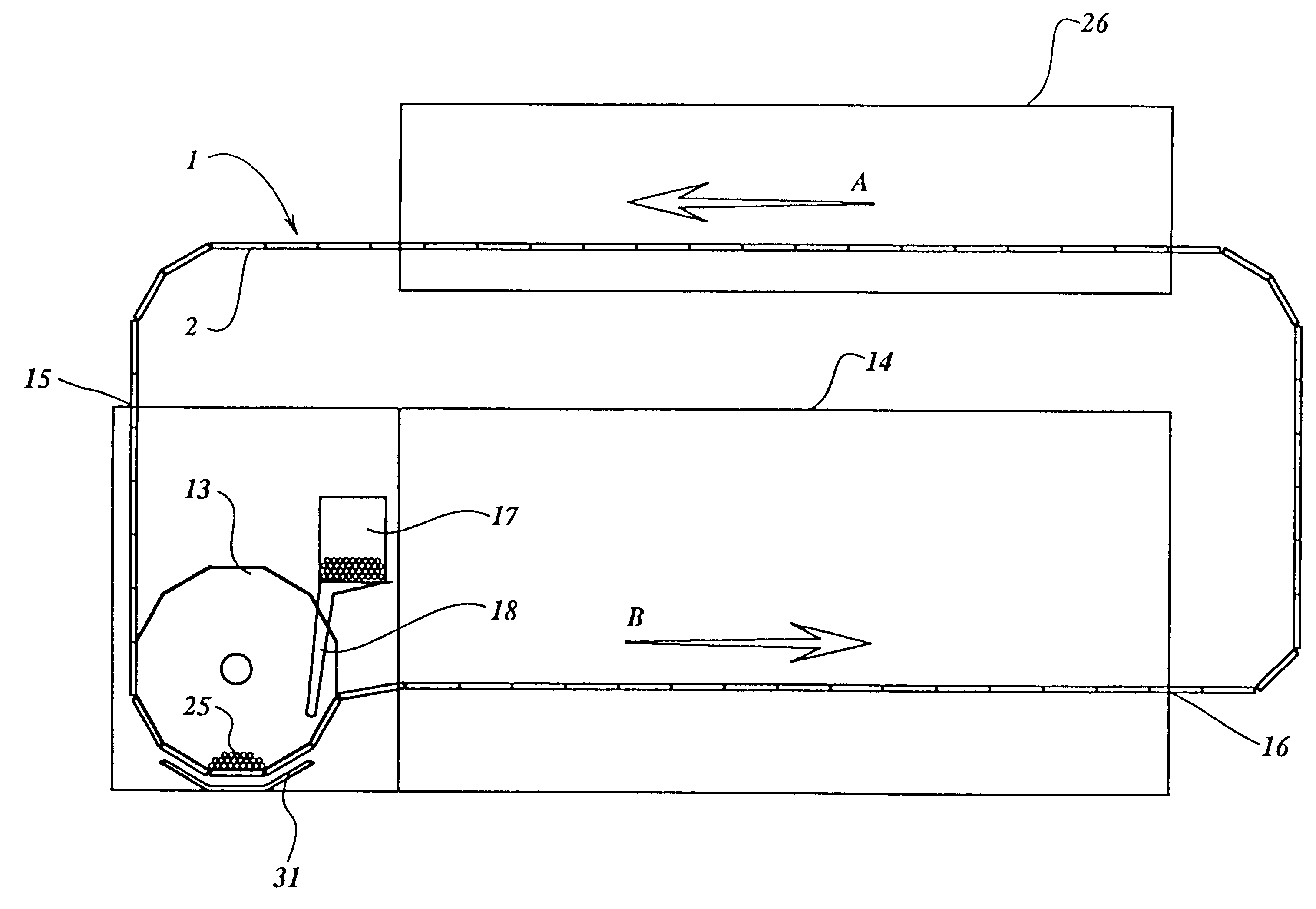

The invention relates to a method and a device for bonding solder balls to connecting points which are provided on a substrate in a predetermined pattern. The solder balls are placed into holes provided in a plate-shaped element, which holes are each capable of accommodating one solder ball, and which are provided in the plate-shaped element in a pattern which corresponds with the pattern of the connecting points on the substrate. A combination of at least one substrate and a plate-shaped element containing solder balls is passed, by means of a conveying element, through a housing in which the solder balls are subjected to a heat treatment. The combinations, which each consist of at least one plate-shaped element and at least one substrate, are passed through the housing by the conveying element via lock mechanisms disposed near an inlet and near an outlet of the housing. Inside the housing the solder balls are placed into the holes provided in the plate-shaped element.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| NL | C2 | NL1006366 | Jun 20, 1997 |
| EP | A1 | EP0885683 | Apr 24, 1998 |
| TW | B | TW420968 | May 13, 1998 |
| SG | A1 | SG71788 | May 15, 1998 |
| CA | A1 | CA2238072 | May 20, 1998 |
| ID | A | ID21148 | May 25, 1998 |
| KR | A | KR19990007124 | Jun 19, 1998 |
| JP | A | JPH1187430 | Jun 22, 1998 |
International Classification(s)
- 1998 Application Filing Year
- B23K Class
- 756 Applications Filed
- 373 Patents Issued To-Date
- 49.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- B23K Class
- 63.60 % this patent is cited more than
- 24 Age
