Double-sided exposure system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 3, 2001
Grant Date -
N/A
app pub date -
Mar 10, 2000
filing date -
Mar 10, 2000
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

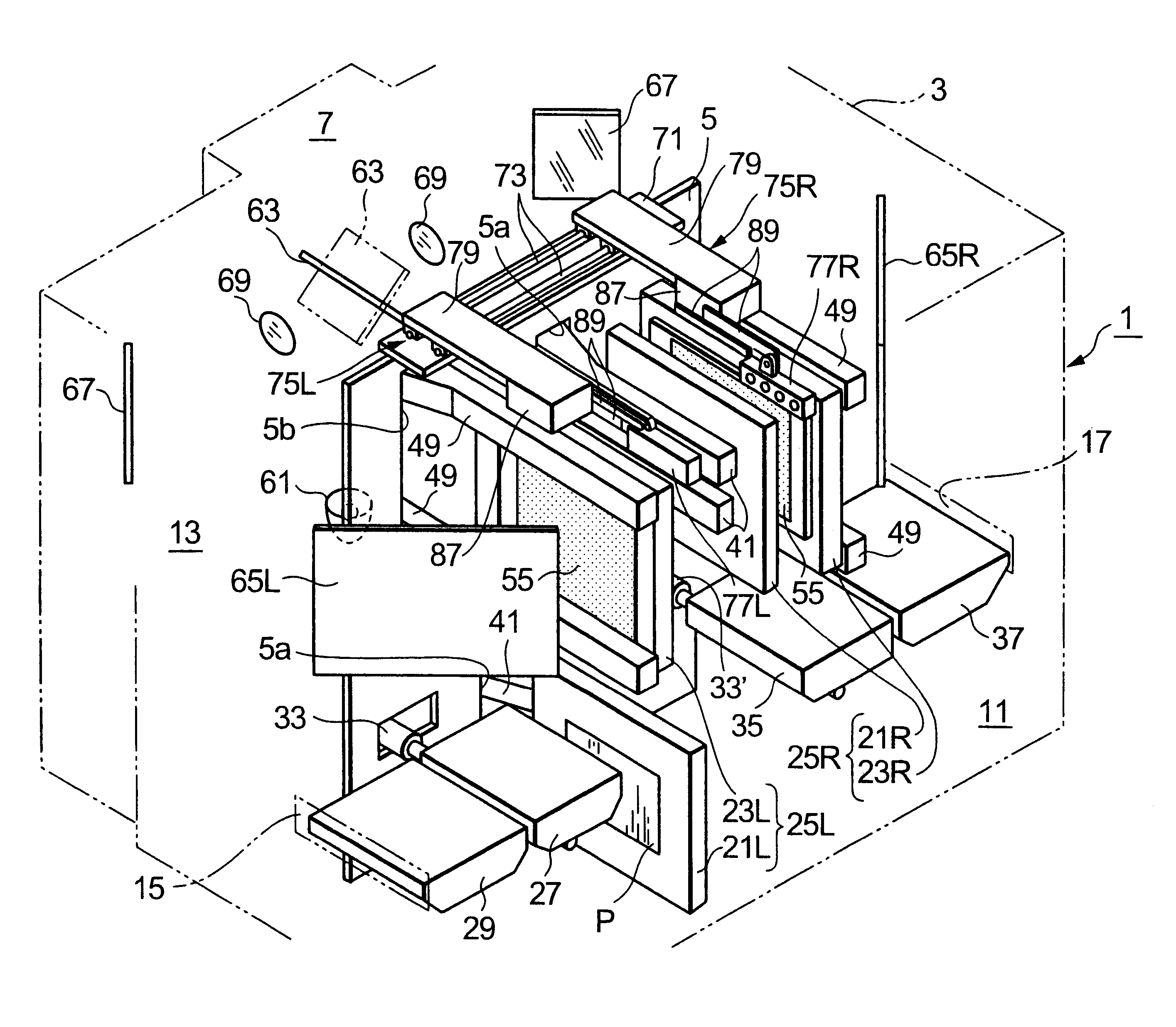

A double-sided exposure system (1) has a first work holding device (21L) for holding a substrate (P) opposite to an exposure mask (55) to expose a first surface of the substrate (P) through the exposure mask (55) to light, and a second work holding device (21R) for holding the substrate (P) opposite to another exposure mask (55) to exposure a second surface of the substrate (P) through the exposure mask (55) to light. Phases of operations for receiving, transferring and pretreating an unexposed substrate, and those of operations for transferring, exposing and pretreating the substrate having one surface processed by an exposure operation can be staggered to prevent time loss due to waiting during an exposure operation can be prevented even if the double-sided exposure system is provided with a single light source.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- G03B Class
- 64.04 % this patent is cited more than
- 24 Age
