Mass flow meter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 27, 2001
Grant Date -
N/A
app pub date -
Mar 14, 2000
filing date -
Aug 12, 1996
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

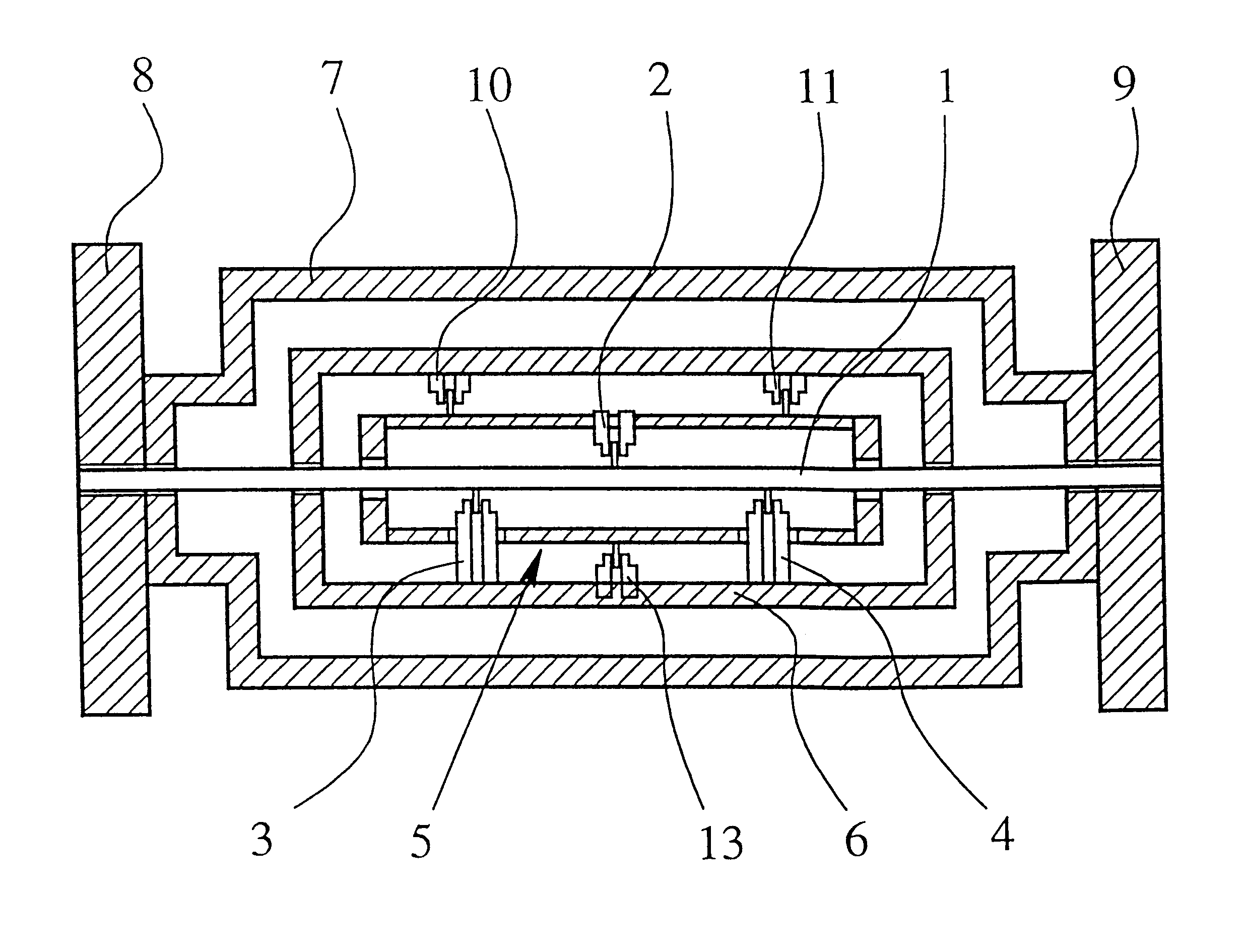

A mass flowmeter for flowing media, which operates according to the Coriolis principle, with one at least basically straight Coriolis line guiding the flowing medium, with at least one oscillation generator acting on the Coriolis line, with at least one sensor detecting Coriolis oscillations based on a Coriolis force and/or Coriolis forces, and with a compensation cylinder, the Coriolis line being located within the compensation cylinder and mechanically connected with the compensation cylinder. According to the invention, the mass flowmeter is designed and further developed so that the oscillation properties of the compensation cylinder essentially correspond to those of the Coriolis line, so that, during operation, the compensation cylinder and the Coriolis line oscillate opposite one another in the manner of a tuning fork.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01F Class
- 3.51 % this patent is cited more than
- 24 Age
