Top-of-rail lubrication rate control by the hydraulic pulse width modulation method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2001
Grant Date -
N/A
app pub date -
Jun 15, 2000
filing date -
Mar 23, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

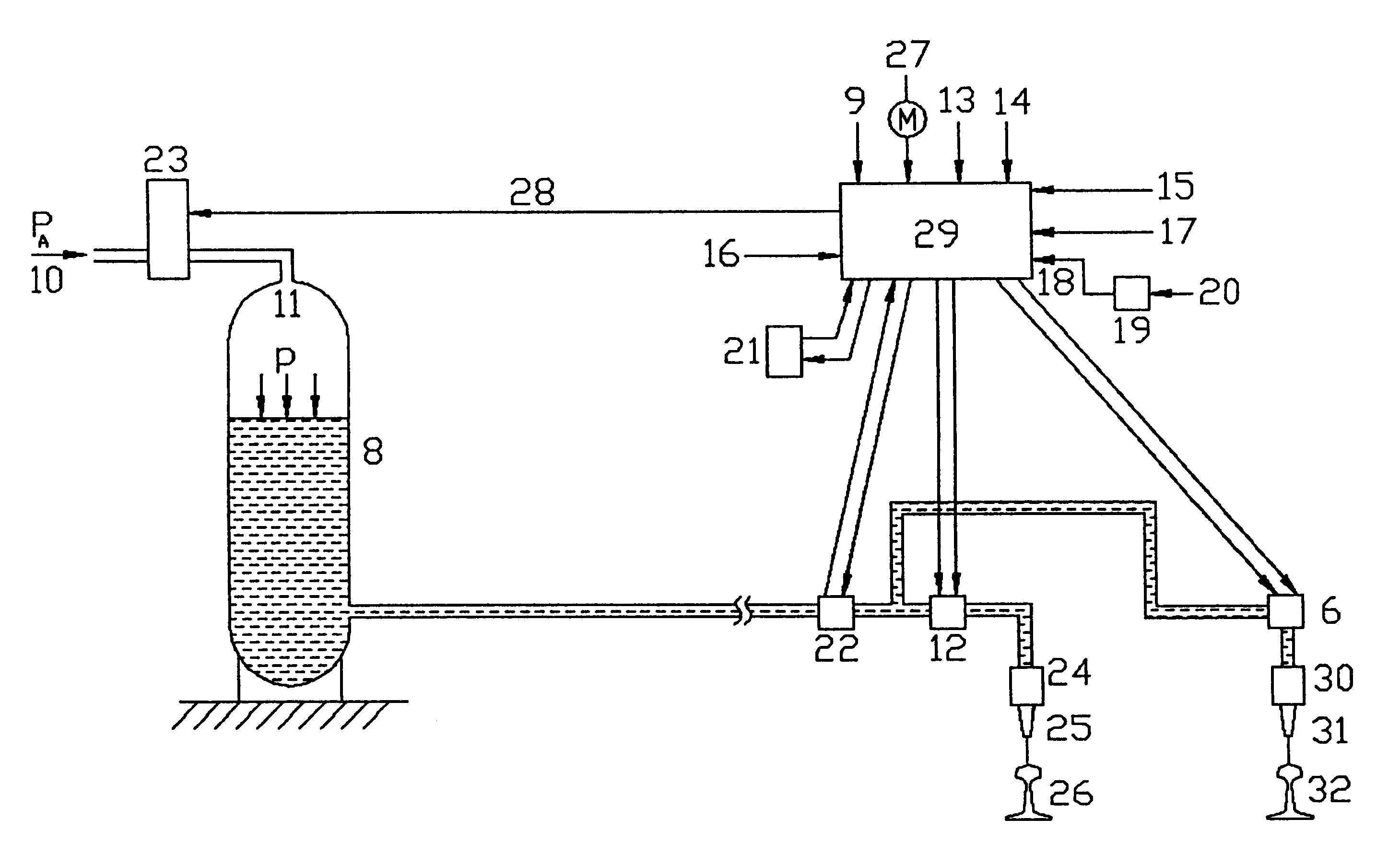

A lubrication system for a railroad locomotive applies a lubricant with great accuracy in computer-controlled, precise quantities behind the last axle of the last locomotive such that the lubricant is consumed by the time the entire train has passed under all track, speed, temperature and train size conditions. Hydraulic pulse-width modulation (PWM or %PWM) controls the quantity of lubricant delivered. Time is divided into a series of windows each consisting of a few seconds. Lubricant delivered from a pressurized tank through long hoses to a solenoid controlled valve is then metered by the duration within this time window for which the computer computes and opens the valve. Compensation is provided for train tonnage and lubricant temperature as well as track curvature and train speed.
First Claim
Other Claims data not available
