Method of mixing viscous fluids
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2001
Grant Date -
N/A
app pub date -
Apr 21, 2000
filing date -
Dec 5, 1995
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

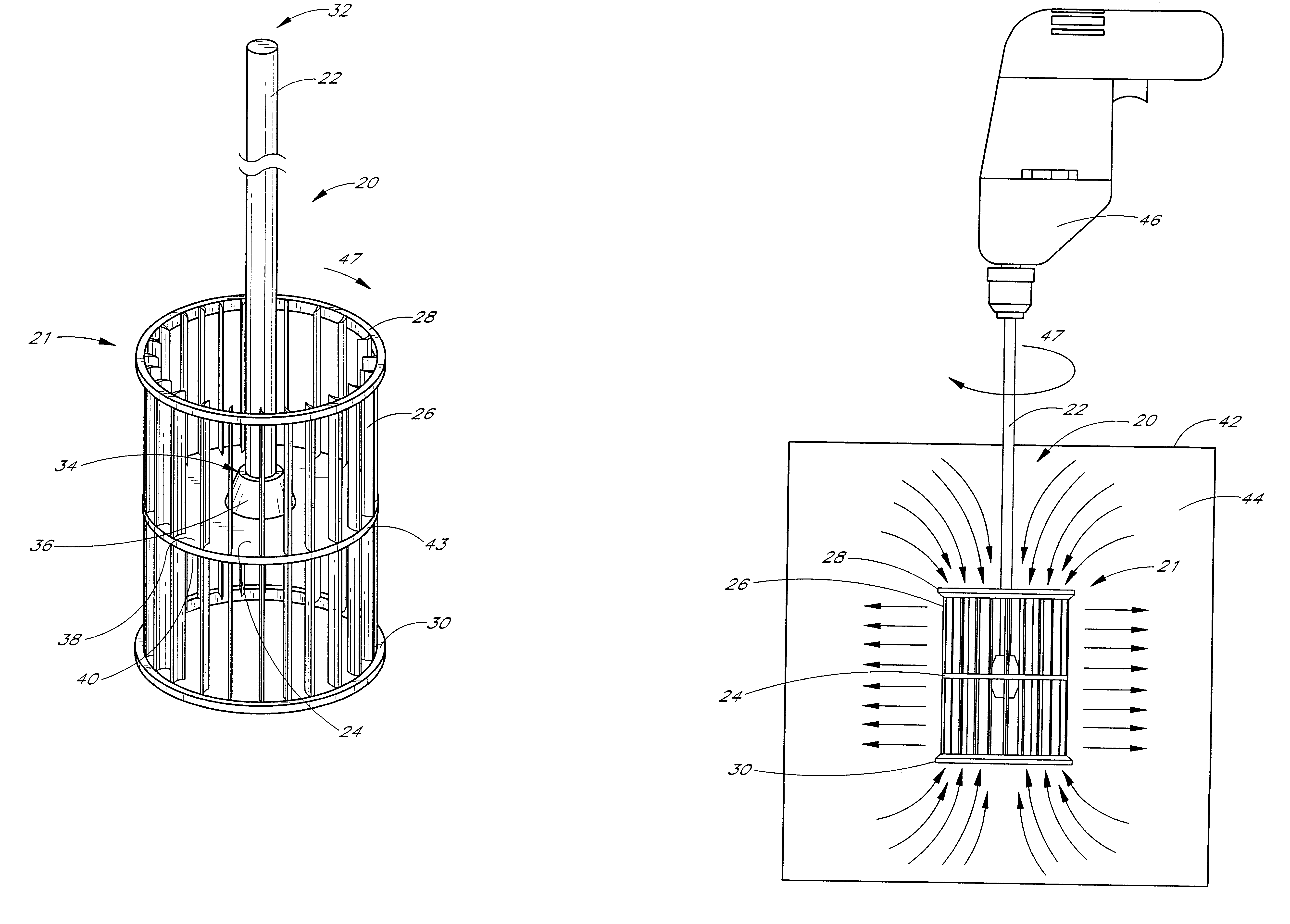

A method of mixing viscous fluids is disclosed. The method comprises rotating a mixing apparatus (20) in a container (42) of fluid (44). The mixing apparatus comprises a cage (21) located at the end of a shaft (22). The cage (21) comprises a central circular disc (24) with an outer edge (43) and top (38) and bottom (40) sides. A number of vanes (26) extend from each side of the disc (24), the vanes (26) spacedly located near the outer edge of the plate. The free ends of the vanes (26) are connected by a hoop (38, 40) to maintain their spaced relationship.
First Claim
Other Claims data not available
