Strike-off device for a paving screed
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2001
Grant Date -
N/A
app pub date -
Jul 29, 1999
filing date -
Jul 29, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

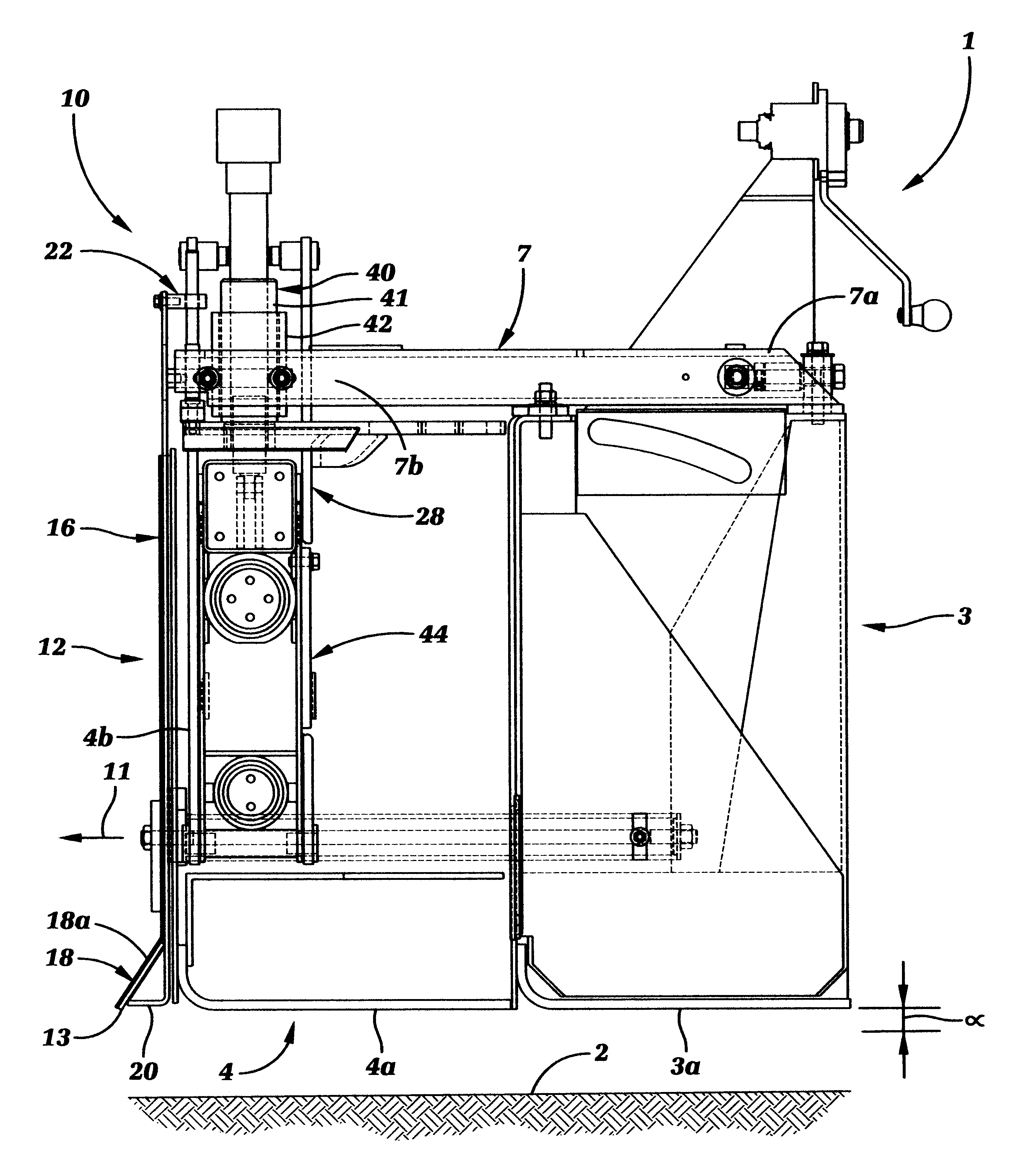

A strike-off device is for a paving screed having a main screed and a screed extension attached to the main screed, the screed extension having a generally vertical front surface. The strike-off device includes a plate disposed frontwardly of and adjacent to the screed extension. The plate has a generally horizontal working edge extending laterally along the front vertical surface of the screed extension. Two connective members extend between the strike-off plate and the screed extension and are configured to adjustably attach the plate to the screed extension, such that vertical displacement of the connective members adjusts a vertical position of the strike-off working edge. Preferably, the connective members are each a threaded rod having a first end engaged with the strike-off plate and a second end engaged with the screed extension, such that rotation of the rods displace the strike-off plate in vertical directions.
First Claim
Other Claims data not available
