Heater and heater control with selective power rating
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2001
Grant Date -
N/A
app pub date -
Mar 9, 1998
filing date -
Mar 9, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

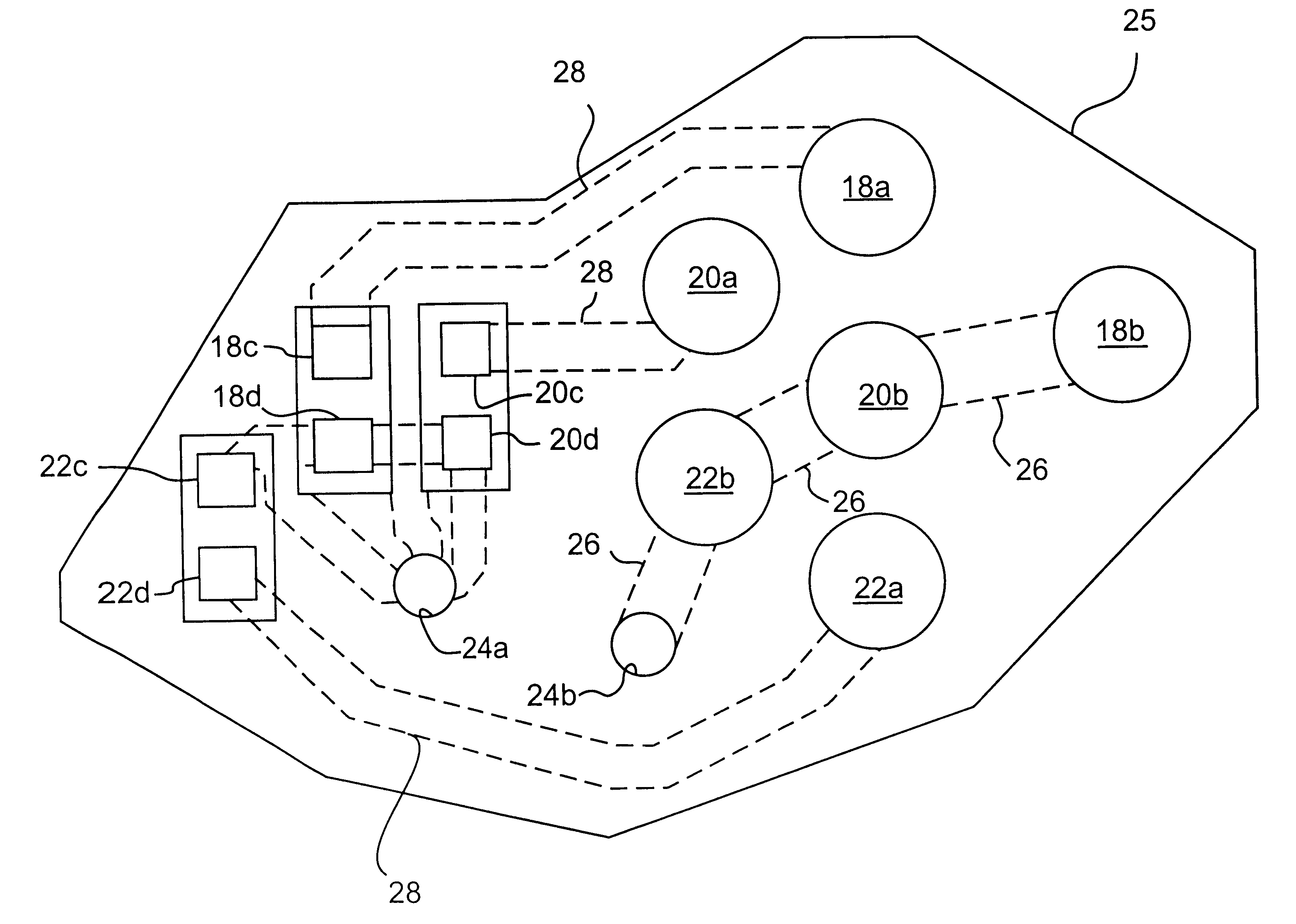

A heater having selective power rating includes a source of electric current, at least one heating unit and at least one electric conductor having an input and an output. Each conductor is permanently fixed at its input and its output so that the conductor is in electric communication with the source. Each conductor is in one of two states. In a conducting state, the conductor is electrically continuous between its input and its output. In a nonconducting state, the conductor is severed between its input and its output. A first conductor is disposed with respect to the source and a first heating unit so that the first heating unit operates at a power level that is dependent on the state of the first conductor. The source and the at least one heating unit are configured to produce one of a plurality of a desired power levels depending on the state of the first conductor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H05B Class
- 2.90 % this patent is cited more than
- 24 Age
