Single facer with resilient small diameter corrugating roll
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2001
Grant Date -
N/A
app pub date -
Jun 18, 1999
filing date -
Jun 18, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

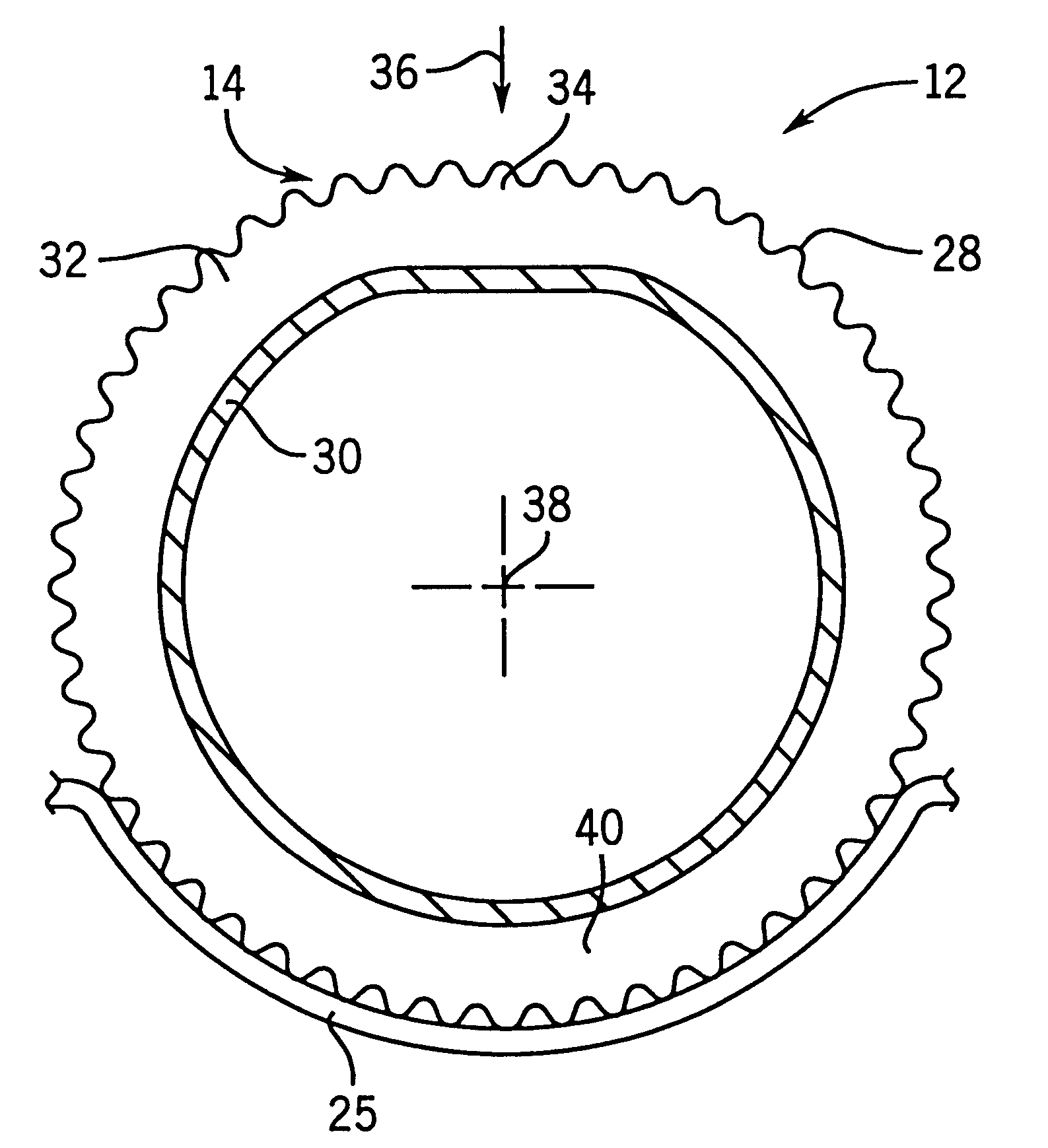

A single facer for corrugated paperboard of the type using a very large diameter fluted bonding roll and a much smaller diameter fluted corrugating roll which engages the bonding roll to provide a corrugating nip. The small diameter corrugating roll is made to be resilient so that it is capable of inward deflection in the vicinity of the corrugating nip in order to cushion impact as the rolls interengage along the corrugating nip. This cushioning deflection absorbs vibrational movement due to chordal action of the interengaging flutes, and thereby reduces noise levels, roll wear and improves the quality and consistency of corrugation.
First Claim
Other Claims data not available
