Bookbinding system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 5, 2000
Grant Date -
N/A
app pub date -
Mar 15, 1999
filing date -
Sep 4, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

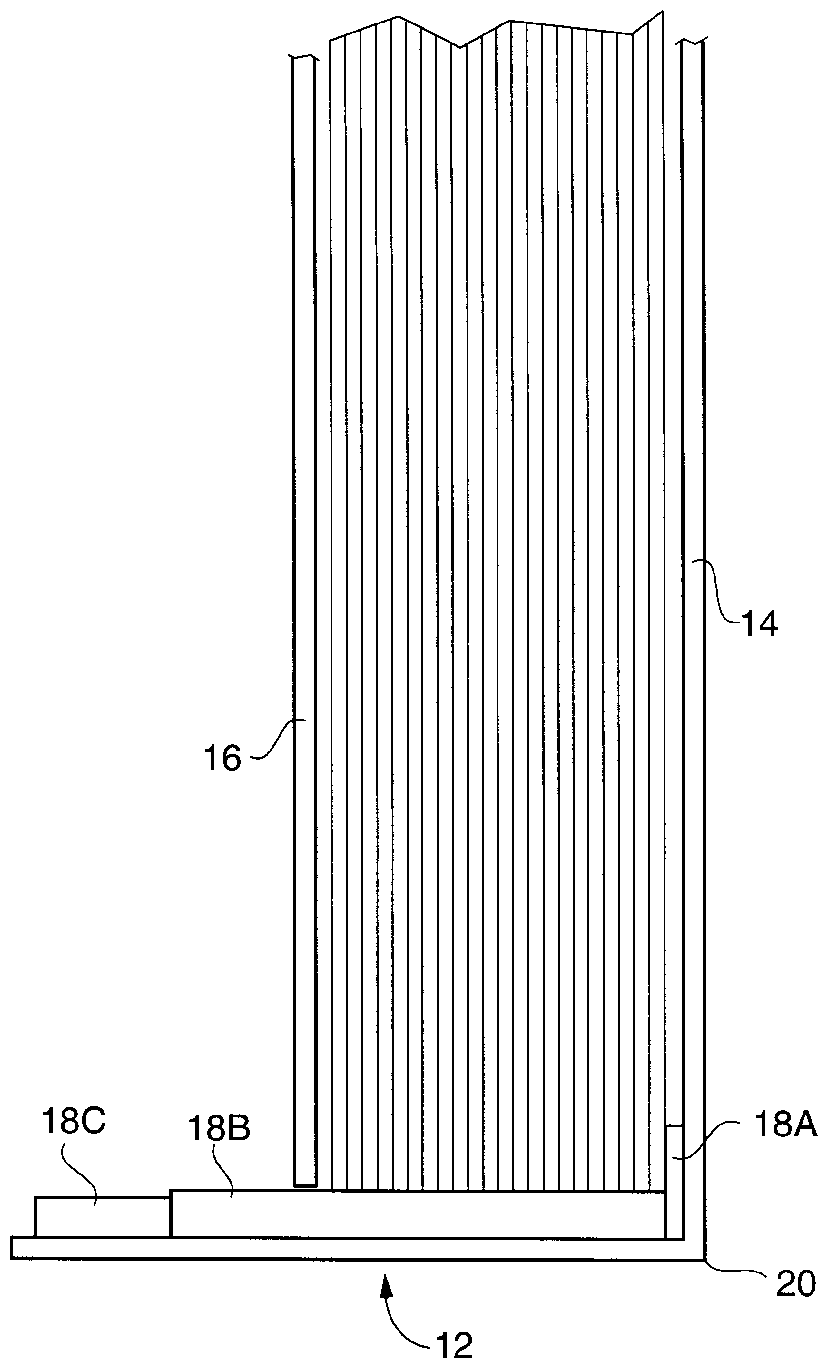

A bookbinding system and method of binding books including a cover/spine assembly having a relatively rigid cover section with a length and width at least as great as that of the stack of sheets to be bound and a spine section having a width greater than the height of the stack. The cover/spine assembly and the spine section are secured together along the length of the cover section so that the spine section can be folded along a first edge with respect to the cover/spine assembly. A heat activated matrix is disposed on the spine section including a central adhesive band and an outer band disposed between the central adhesive band and a second edge of the spine section. Binding is carried out by placing the stack over the cover section and folding the spine section over the edge of the stack. Preferably a second relatively rigid cover section is placed on top of the stack so that the outer adhesive band on the spine section will extend over second cover section. The central adhesive band is a low viscosity adhesive which, when activated, bonds the sheets of the stack to the spine section to form the spine of the bound book. The outer adhesive band, when activated, bonds the second cover to the spine section thereby forming a hardcover book having the feel and appearance of a book bound using conventional techniques.
First Claim
Other Claims data not available
