Quick-detachable computer housing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2000
Grant Date -
N/A
app pub date -
Aug 26, 1998
filing date -
Aug 26, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

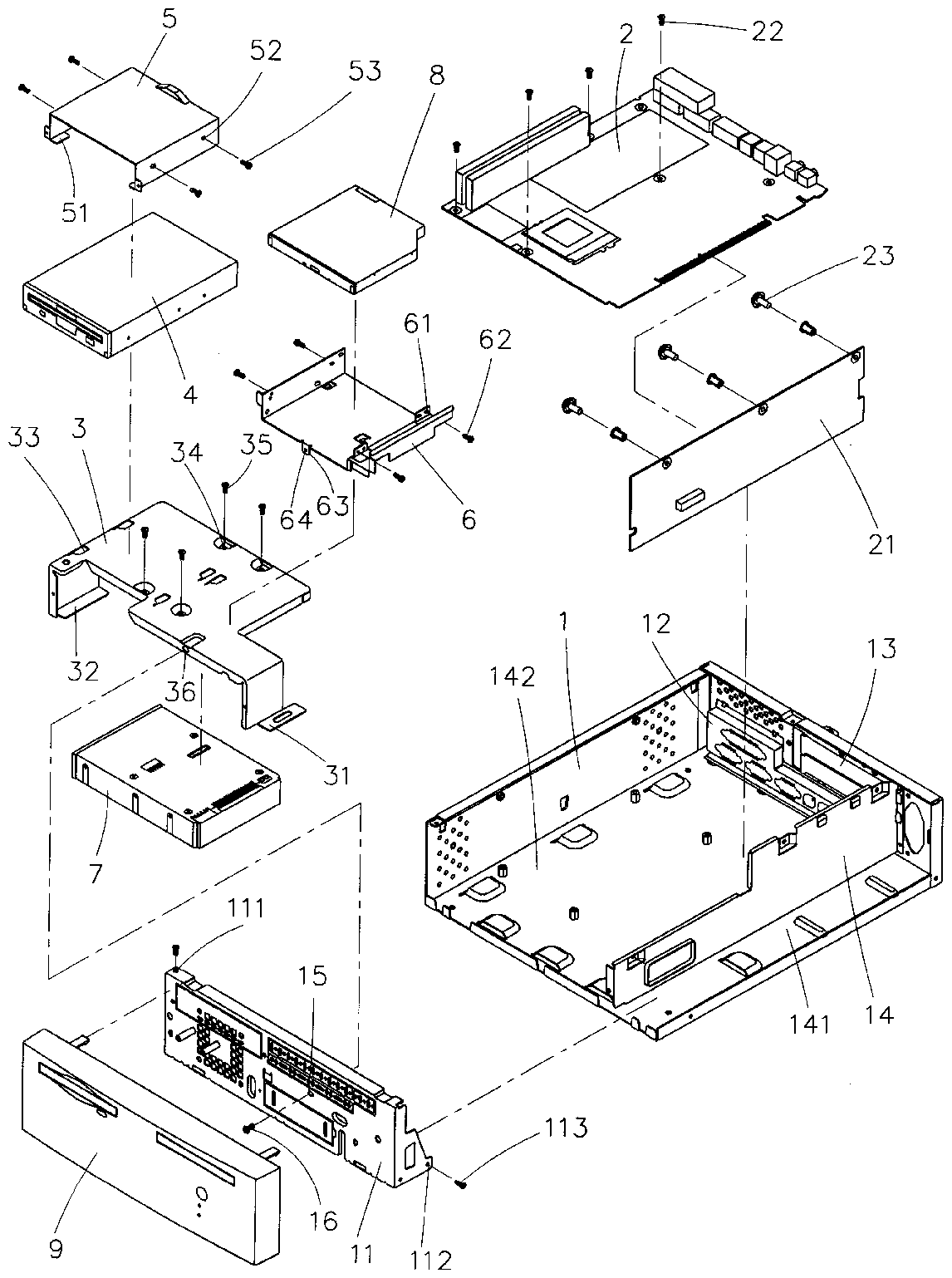

A quick-detachable computer housing includes a mainframe shell separated by an upright partition board into a mother board chamber for holding a mother board and a circuit board for interface card at the mother board and a power chamber for holding a power supply device, an upright front panel detachably fastened to a front side of the mainframe shell by screws, a face panel covered on the upright front panel, a bridge frame detachably fastened to the upright front panel inside the mother board chamber by screws, a locating frame detachably hooked on the bridge frame top hold a hard diskdrive, and a CD-ROM rack hung on the bridge frame and secured in place by a screw to hold a CD-ROM player.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 32 Citation Count
- G06F Class
- 68.89 % this patent is cited more than
- 25 Age
