Water-cooled firing grate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 14, 2000
Grant Date -
N/A
app pub date -
May 12, 1999
filing date -
Dec 6, 1996
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

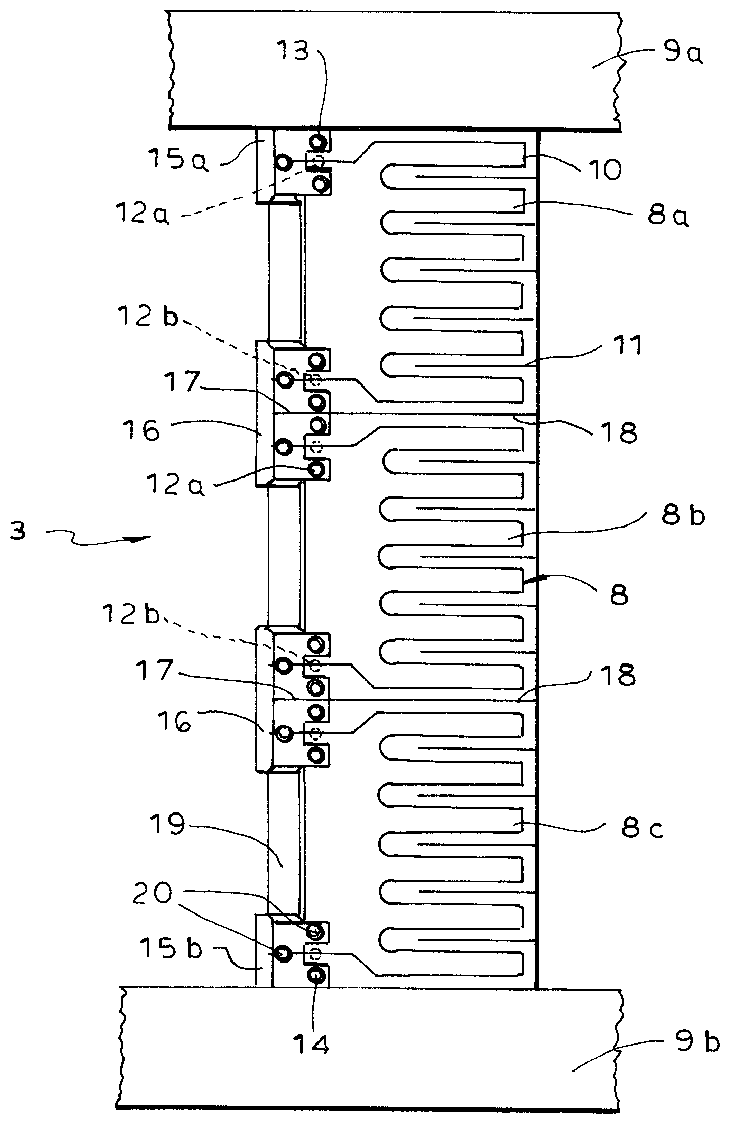

A water-cooled firing grate made up of grate bar blocks extending over the width of the grate and each having a plurality of grate bars mounted on a grate bar carrier and interconnected by connecting pieces communicating between meandering shaped channels in the grate bar and a pair of end pieces forming an inlet and an outlet at the outer boundaries of the block and connected to an inlet and an outlet for the cooling water. The pieces are so fixed to the bars that they maintain a clearance between the bars of 1 to 1.5 mm.
First Claim
Other Claims data not available
