Automatic barbeque assembly with bypass lever
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2000
Grant Date -
N/A
app pub date -
Aug 31, 1999
filing date -
Aug 31, 1999
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

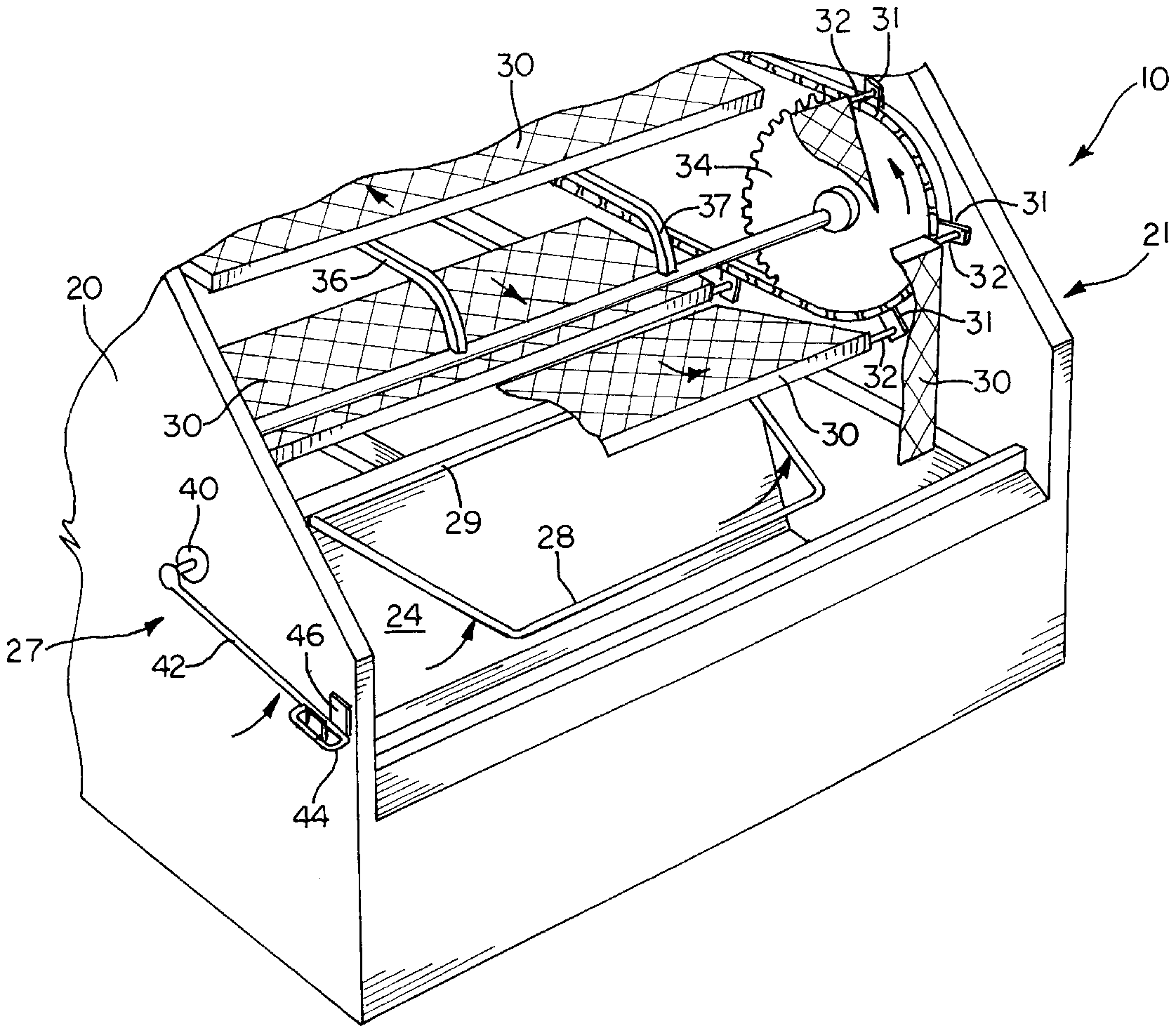

An automatic barbeque assembly is provided having a cooking oven, a conveyor mechanism mounted in the oven, a sauce tank mounted in the oven for holding sauce, a food carrying mechanism connected to the conveyor mechanism for carrying food products in the oven and into the sauce, and a bypass mechanism for preventing the food carrying mechanism from dipping into the sauce wherein the bypass mechanism can be activated from the exterior of the cooking oven using only one hand. The bypass mechanism includes a by-pass lever and a bypass lever rod wherein the bypass lever is permanently affixed at points along the length of the bypass lever rod. The bypass lever rod is rotatably mounted within the oven. The bypass lever and bypass lever rod together form a trapezoidal shape. The bypass lever rod extends through an aperture in the oven and rotates within the aperture. An activation rod is mounted to an end of the bypass lever rod on the exterior of the oven. The activation rod has a handle for activating the bypass mechanism. A latch is provided on the automatic barbeque assembly for holding the bypass mechanism in place.
First Claim
Other Claims data not available
