Removable personal watercraft storage system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2000
Issued Date -
N/A
app pub date -
Sep 14, 1998
filing date -
Apr 1, 1997
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

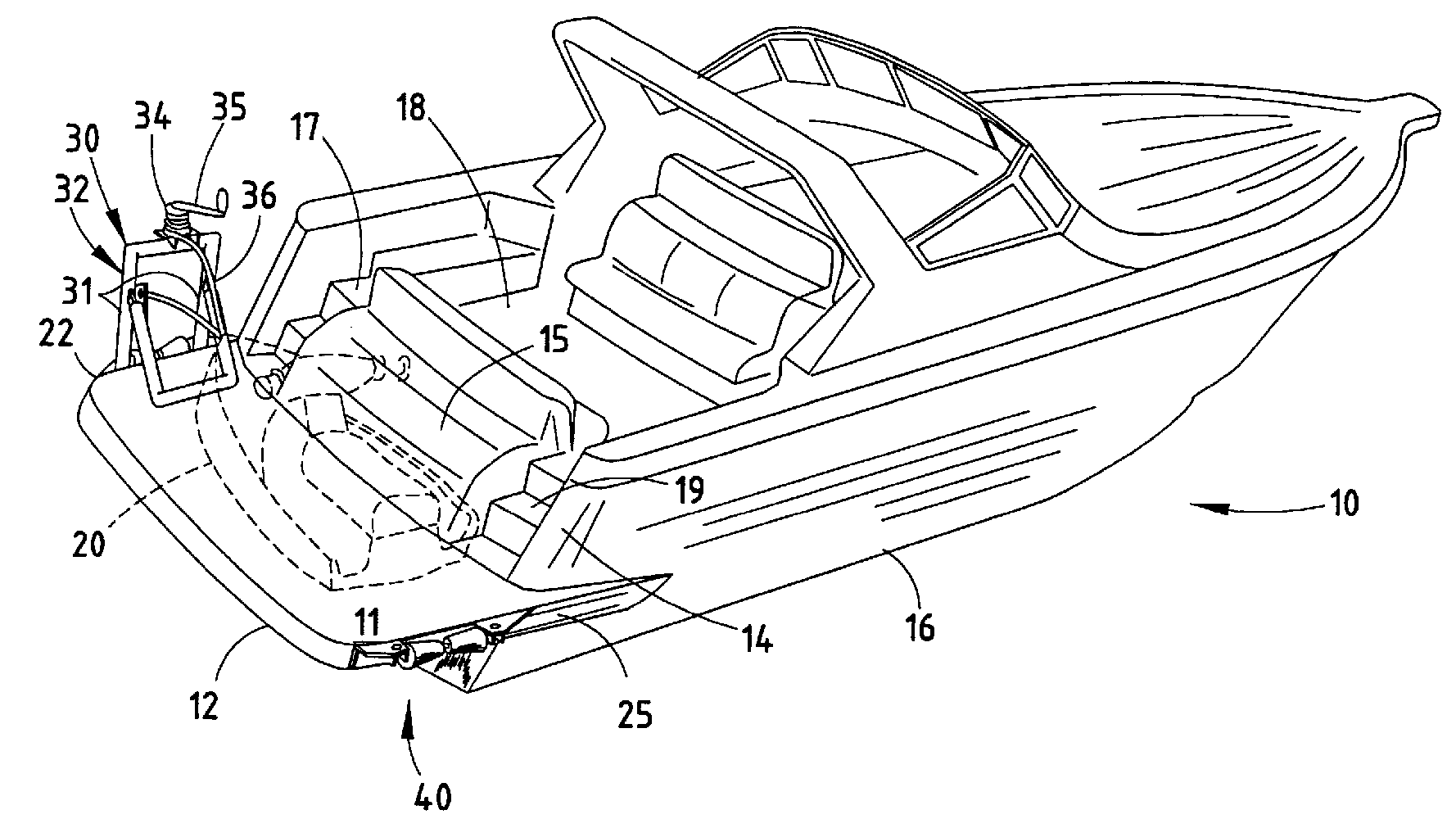

A storage system has a relatively unobtrusive mounting plate which is permanently secured to the edge of a vessel's swim platform and removably receives and captively holds a roller assembly. The mounting plate comprises a generally planar rectangular plate configured to conform to the edge shape of the swim platform and includes a generally U-shaped channel extending around the periphery and open at the top to receive the roller assembly. The roller assembly includes a generally rectangular roller supporting plate shaped to fit within the channel of the mounting plate and be captively held therein and a pair of spaced mounting bosses between which there is mounted a roller which extends above the surface of the swim platform for assisting in the loading and unloading of a personal watercraft onto the swim platform. Locking pins extend between the roller plate and the mounting plate for locking the roller assembly in position for use.
First Claim
Other Claims data not available
