Railway truck with underslung equilizer beams
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2000
Grant Date -
N/A
app pub date -
Mar 24, 1998
filing date -
Mar 24, 1998
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

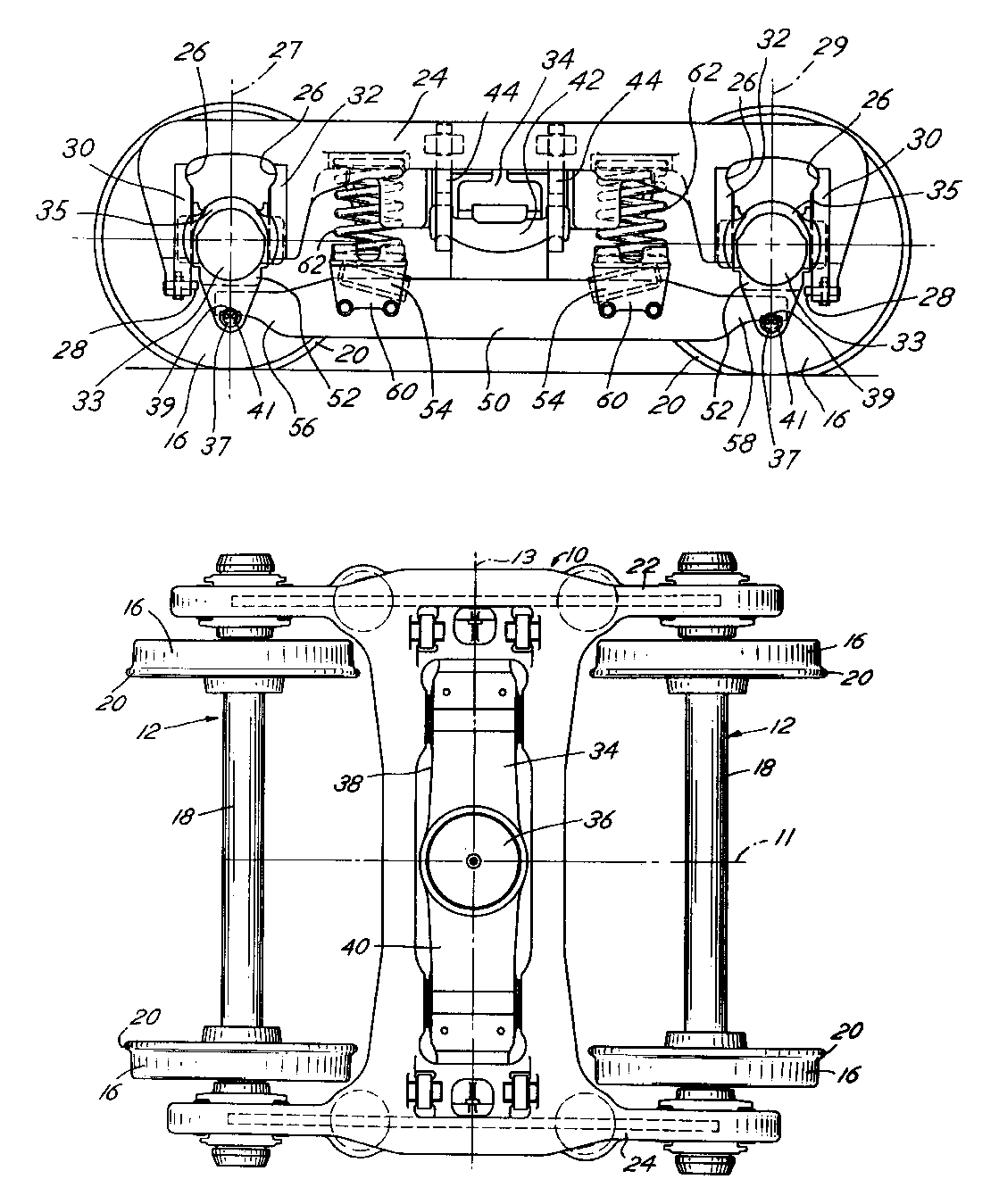

A railway vehicle truck assembly comprises the following, in part: wheel sets having longitudinally spaced, transversely extending axles, and wheels mounted to the axles; transversely spaced longitudinally extending truck frames mounted to the axles; and a transversely extending bolster mounted to the truck frames. The bolster has a center bowl and opposed, elongated bolster arms extending from the center bowl. An underslung equalizer beam is located below the axles and mounted to the axle boxes. Brake beam guides are located in the equalizer spring seats which are located on the underslung equalizer beam. The equalizer beam is hot-box detector compatible so as to not interfere with the axle bearing detection scanners located alongside the railroad track.
First Claim
Other Claims data not available
