Method of treating pulp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2000
Grant Date -
N/A
app pub date -
Jan 27, 1998
filing date -
Jan 31, 1997
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

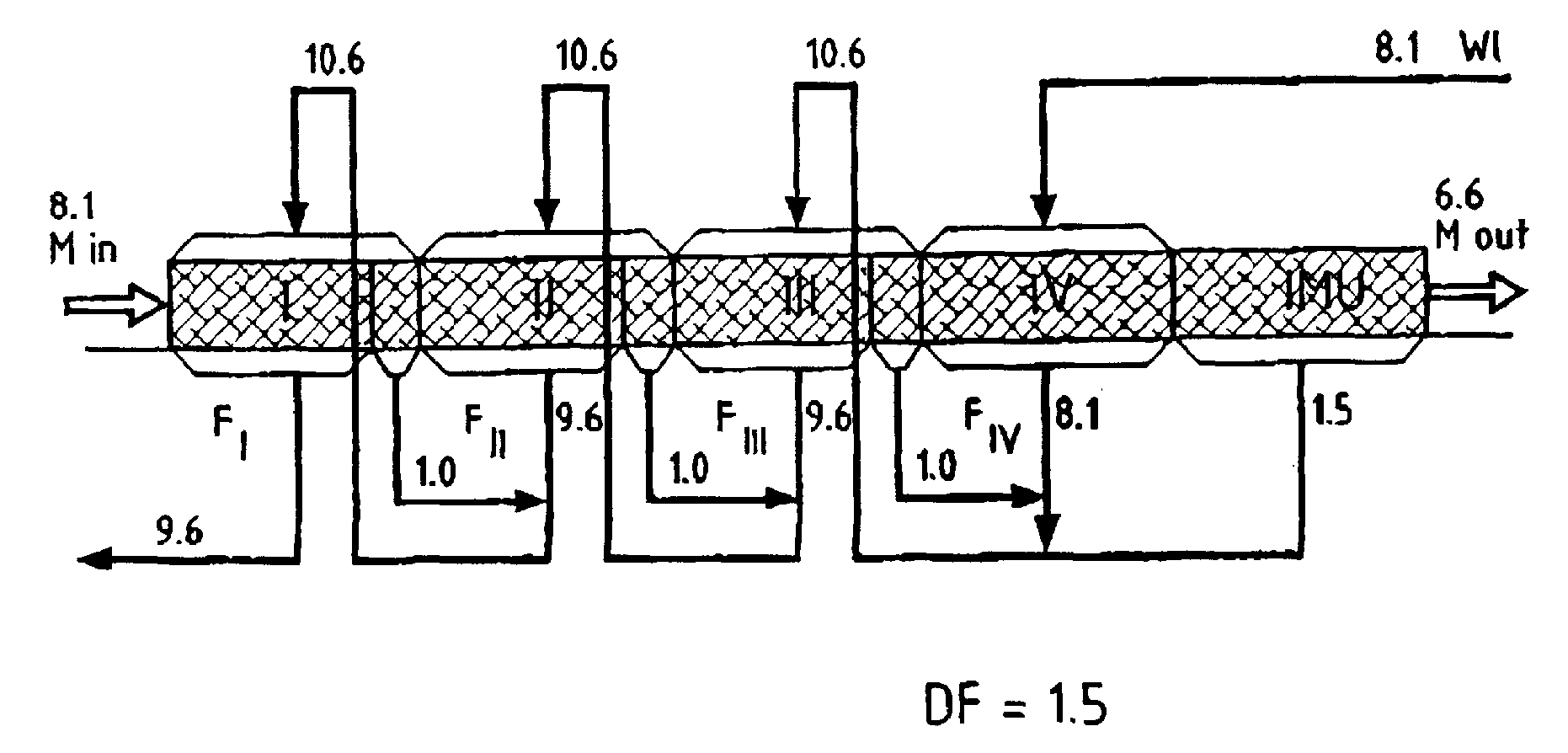

A method is provided by which it possible to intensify a cellulose pulp wash without requiring the purchase of additional equipment. In a washing system having a plurality of stages with a filtrate from each stage, the stages in sequence being N, N+1, etc., and each stage including filtrates F.sub.N and F.sub.N+1, etc., part of the filtrate F.sub.N (e.g. about 5-30 %) is combined with all or part of the filtrate for F.sub.N+1 to produce a combined filtrate, and the combined filtrate is fed in washing stage N as wash liquid. The part of the filtrate F.sub.N that is taken for use as wash liquid in stage N is typically from the end of the washing stage N. The process may be repeated for most of the stages of the washing system.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
AHLSTROM MACHINERY OY | LARS SONCKIN KAARI 12 ESPOO FIN-0 |
International Classification(s)

- 1998 Application Filing Year
- D21C Class
- 99 Applications Filed
- 45 Patents Issued To-Date
- 45.46 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Qvintus, Harri | Glens Falls, NY | 9 | 42 |
# of filed Patents : 9 Total Citations : 42 | |||
Tervola, Pekka | Helsinki, FI | 14 | 40 |
# of filed Patents : 14 Total Citations : 40 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 4 Citation Count
- D21C Class
- 2.17 % this patent is cited more than
- 25 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Sep 01, 2008 | AS | ASSIGNMENT | free format text: CHANGE OF NAME;ASSIGNOR:DE LA RUE CASH SYSTEMS INC.;REEL/FRAME:021590/0318 Owner name: TALARIS INC., WISCONSIN Effective Date: Sep 01, 2008 |
Apr 14, 2004 | FPAY | FEE PAYMENT | year of fee payment: 12 |
May 08, 2000 | FPAY | FEE PAYMENT | year of fee payment: 8 |
Dec 11, 1995 | FPAY | FEE PAYMENT | year of fee payment: 4 |
Dec 01, 1995 | FEPP | FEE PAYMENT PROCEDURE | free format text: PAYOR NUMBER ASSIGNED (ORIGINAL EVENT CODE: ASPN); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY |
Oct 20, 1993 | AS | ASSIGNMENT | free format text: SECURITY INTEREST;ASSIGNOR:BRANDT, INC.;REEL/FRAME:006740/0056 Owner name: SANWA BUSINESS CREDIT CORPORATION, ILLINOIS Effective Date: Oct 20, 1993 |
Dec 04, 1992 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST.;ASSIGNORS:ADAMS, THOMAS P.;VANDER HEYDEN, JOHN H.;REEL/FRAME:006344/0238 Owner name: BRANDT, INC., WISCONSIN Effective Date: Dec 04, 1992 |
Nov 17, 1992 | I | Issuance | |
Nov 05, 1992 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Jun 12, 1991 | F | Filing | |
Jun 12, 1991 | PD | Priority Date |
