Diaphragm type carburetor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2000
Grant Date -
N/A
app pub date -
May 18, 1998
filing date -
May 27, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

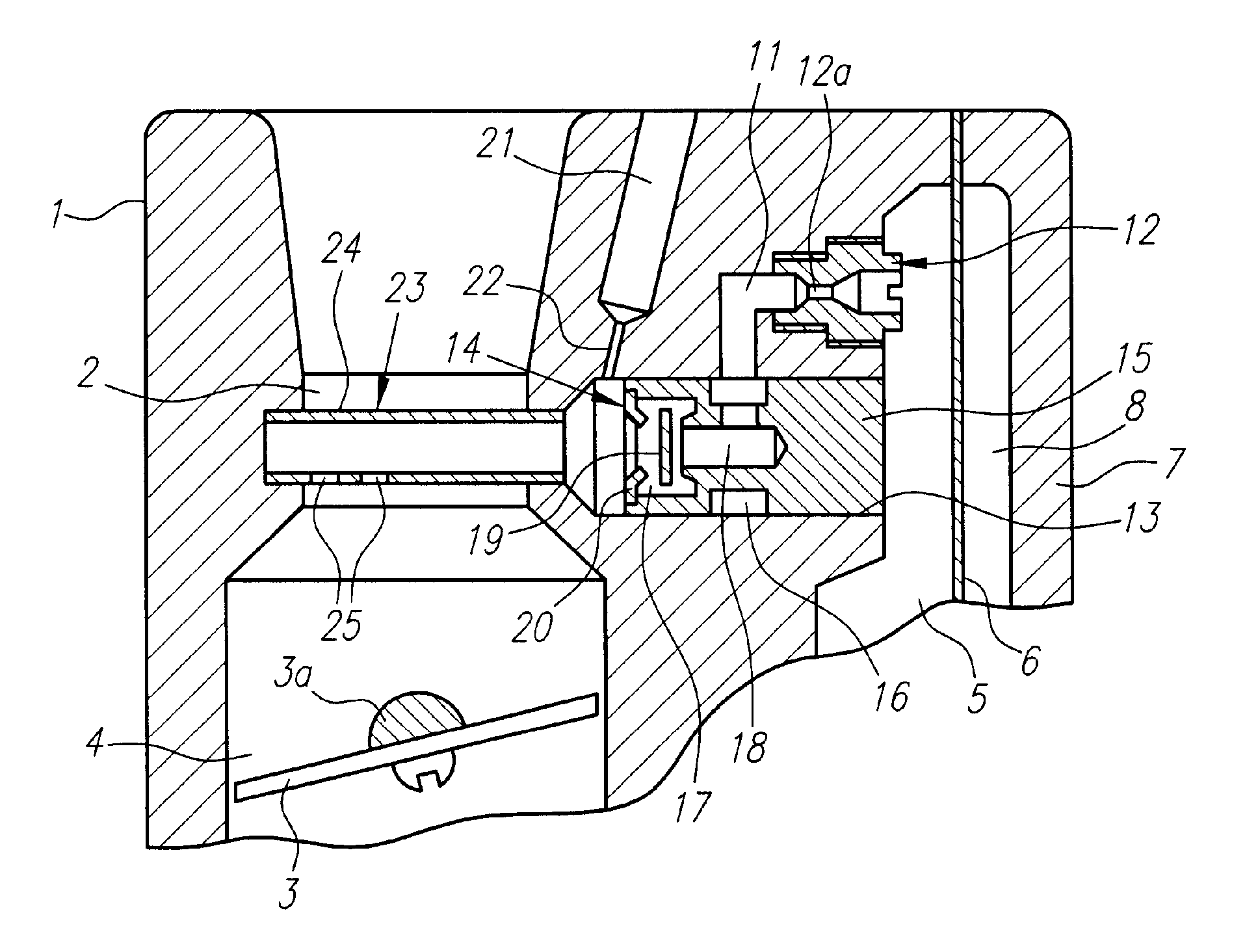

The present invention serves to facilitate atomization of fuel in a diaphragm type carburetor for all-purpose two-cycle engines. A check valve used to prevent back flow is installed in the fuel passage leading from a constant-fuel chamber to a main nozzle, and an air bleed passage is connected at a position on the downstream side of the check valve. The main nozzle is constructed by forming nozzle openings which face downstream with respect to the engine intake air flow. The nozzle openings are located in a tubular member which cuts across a central axial line of the venturi so that the tubular member bridges the neck of the venturi.
First Claim
Other Claims data not available
