Cradle for feeding of non-uniform sheets in a printer or copier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2000
Grant Date -
N/A
app pub date -
May 26, 1998
filing date -
May 26, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

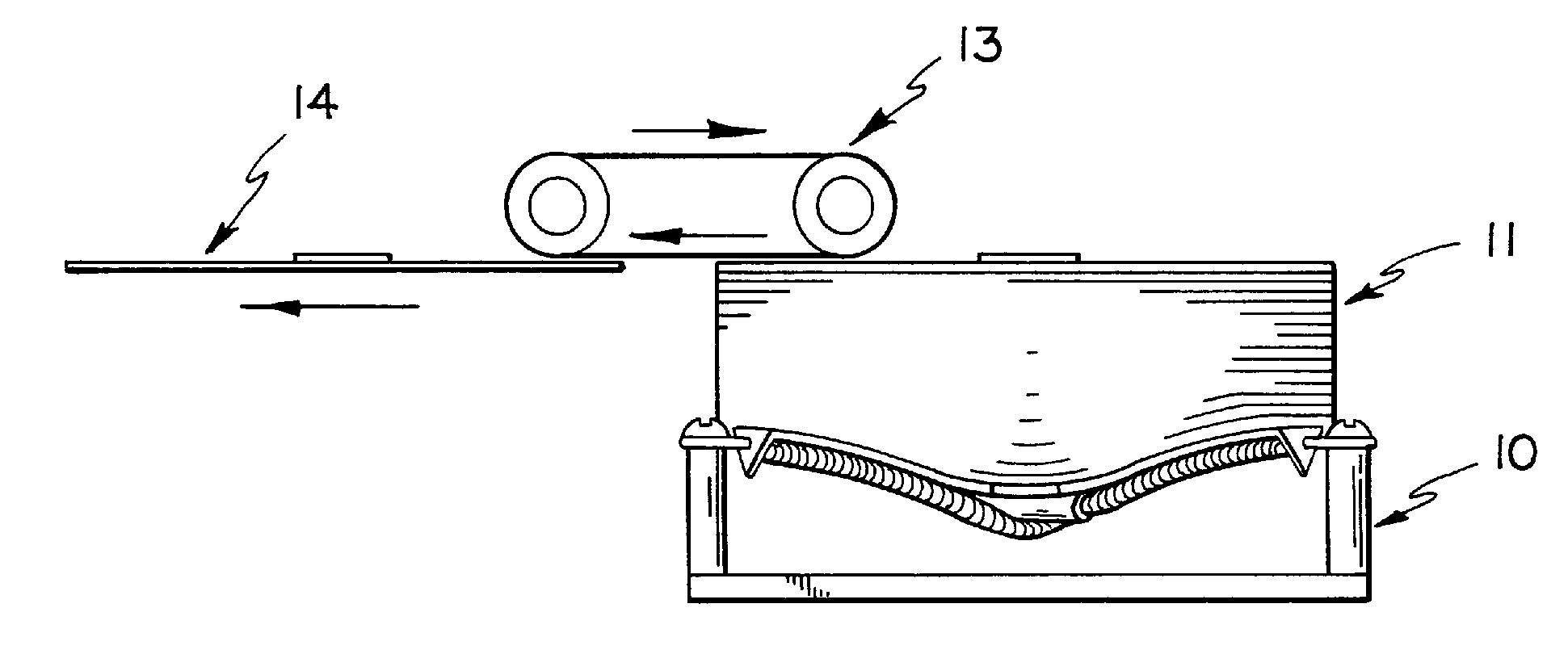

A cradle for holding and feeding a stack of sheets in a printer or copier which compensates for non-uniformities in the stack, and especially non-uniformities in the central portion of the stack, thereby presenting a level top sheet to a sheet feeder regardless of how many sheets are in the stack. The cradle broadly comprises a rectangular base plate and four support posts arranged proximate the corners of the base plate. Two extension springs are arranged diametrically with respect to one another, each spring supported at its ends by the support posts, with the springs intersecting one another at approximately the center of the base plate. The extension springs support a plastic sheet, upon which the stack of sheets is laid.
First Claim
Other Claims data not available
