Vented fireplace construction
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 29, 2000
Issued Date -
N/A
app pub date -
Oct 28, 1998
filing date -
Jan 23, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

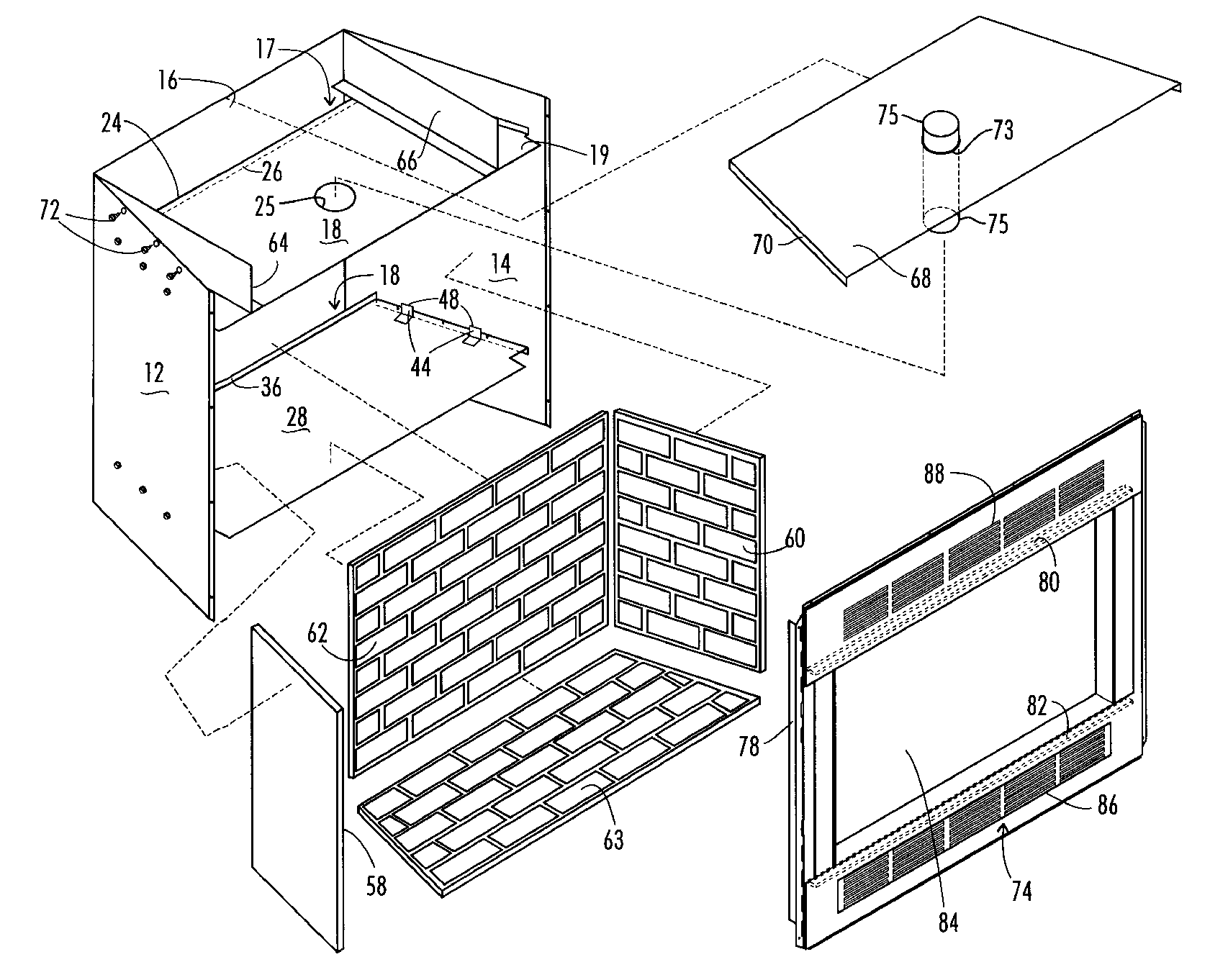

A vented wood or gas-log fireplace is formed from a sheet metal member bent to form side and rear panels. A pair of spaced apart sheet metal plates are connected between the side panels and have rear edges spaced from the rear panel. The rear edges of the plates are bent to form lips extending in a direction toward the opposite plate. Bracket members are secured to the plates adjacent the side panels. A rear refractory member is positioned between the plates in engagement with the lips, and side refractory panels are positioned in abutment with a respective side sheet metal panel and held in place by the bracket members, the side ceramic panels abutting the rear ceramic panel at the sides thereof. A top panel is fastened to the top edges of the side panels above the top plate and a conduit extends through the top plate with the top panel to communicate the combustion chamber with an exhaust pipe or chimney. An air duct is formed between the top panel and the top plate, and a front face assembly having upper and lower grids permits air to flow beneath the lower plate, upwardly between the rear ceramic panel and the rear sheet metal panel, and over the upper plate, below a top panel, the front face assembly having rearwardly extending ledges which provide support for the plates adjacent the front edges thereof.
