Printer having improved print head mechanism and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 22, 2000
Grant Date -
N/A
app pub date -
Oct 14, 1997
filing date -
Oct 14, 1997
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

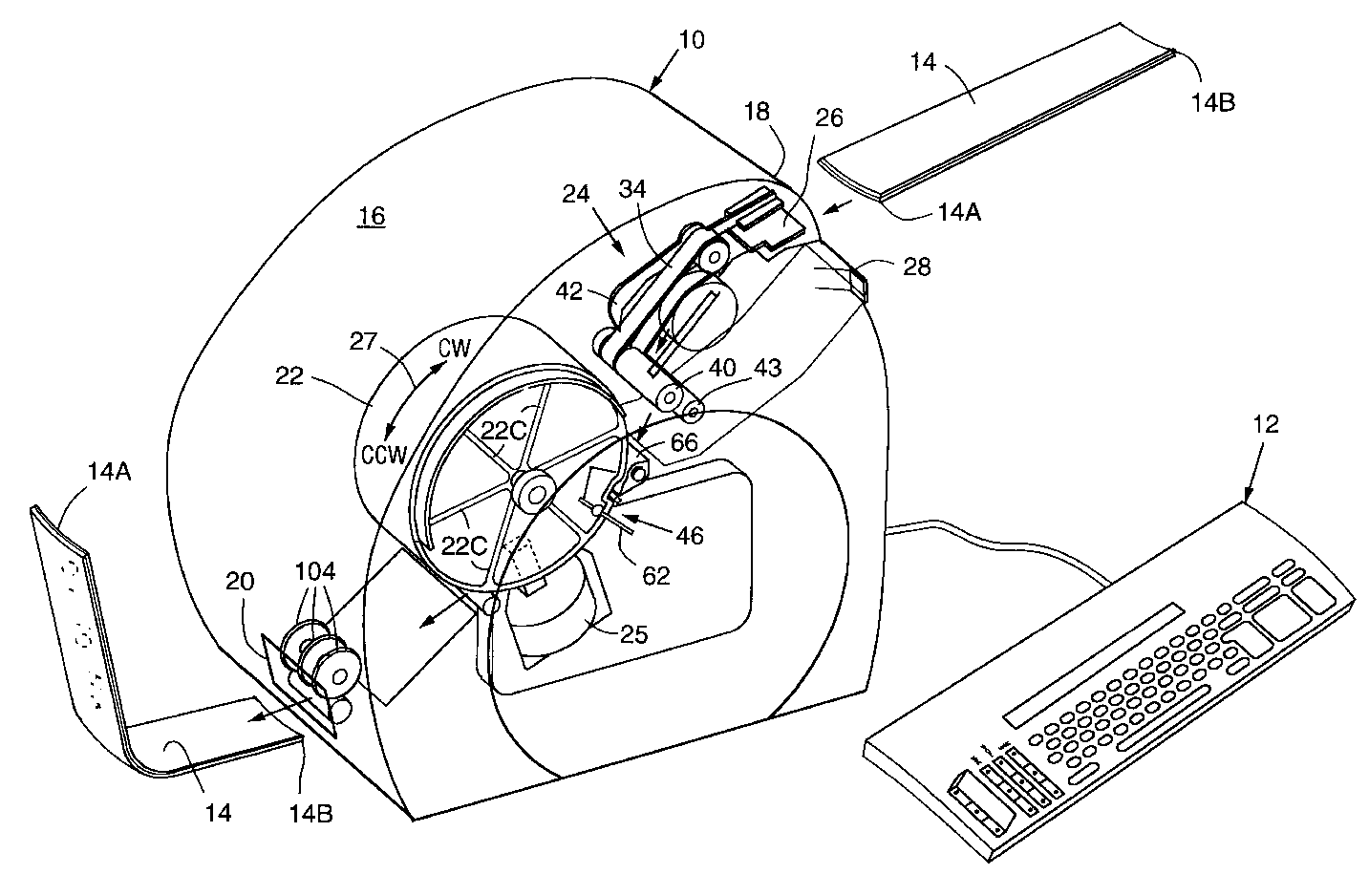

A printer having a platen for supporting a binder strip to be printed, a ribbon positioned adjacent the platen and print head mechanism having print pins, driver coils associated with each print pin and a heating element for heating the print pins. A driver applies energy to the coils such that a drive force is applied to the print pins up to the time the pins force the ribbon against the binder strip and for a fixed time thereafter. The driver is controlled by a print head controller so as to carry out printing on the binder strip.
First Claim
Other Claims data not available
Family
Loading Family data...
