Liquid crystal display device of reflection type
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2000
Grant Date -
N/A
app pub date -
Jul 3, 1997
filing date -
Jul 4, 1996
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

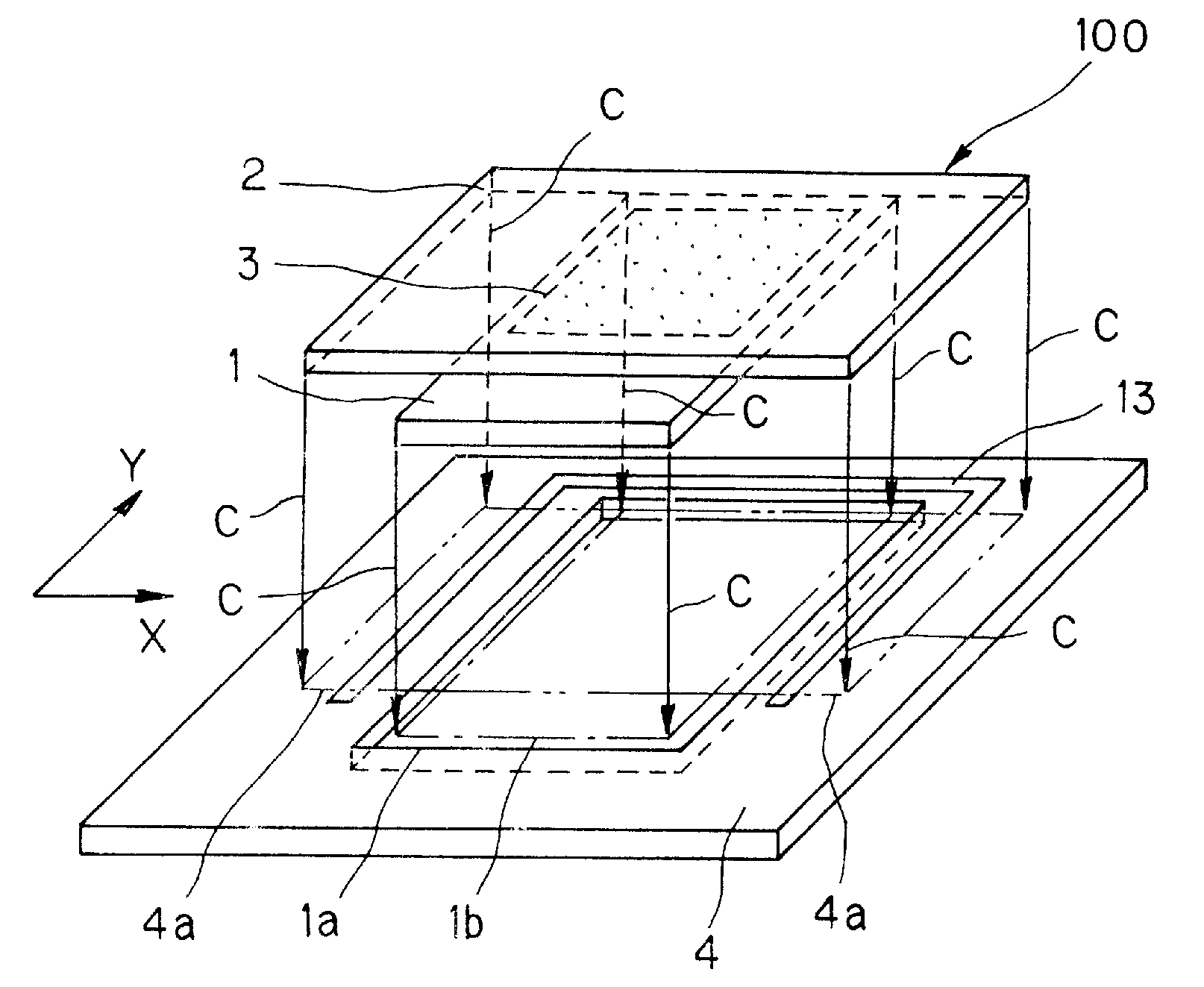

A liquid crystal display device of reflection type has a liquid crystal display panel and a fixture substrate for fixing the liquid crystal display panel. The liquid crystal display panel is provided with: a semiconductor substrate; a transparent substrate opposed to the semiconductor substrate and on which a transparent electrode is formed, the transparent substrate having a width in a first direction along a surface thereof wider than the semiconductor substrate; a liquid crystal layer sealed between the semiconductor substrate and the transparent substrate; a plurality of switching elements formed on the semiconductor substrate in a matrix manner in correspondence with a pixel arrangement; and a plurality of pixel electrodes formed in the matrix manner in correspondence with the pixel arrangement each connected to respective one of the switching elements. The fixture substrate is provided with an aperture portion to which an aperture, which area is larger than an outline of the semiconductor substrate and which width in the first direction is narrower than the transparent substrate, is formed. The semiconductor substrate is disposed within the aperture. And that, both of edge portions in the first direction of the transparent substrate are adhered on the fixture substrate at a peripheral of the aperture by an adhesive agent.
