Method for coating heterogeneous substrates with homogeneous layers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 2, 1999
Issued Date -
N/A
app pub date -
Nov 6, 1996
filing date -
Sep 29, 1995
priority date (Note) -
In Force
status (Latency Note)
Importance

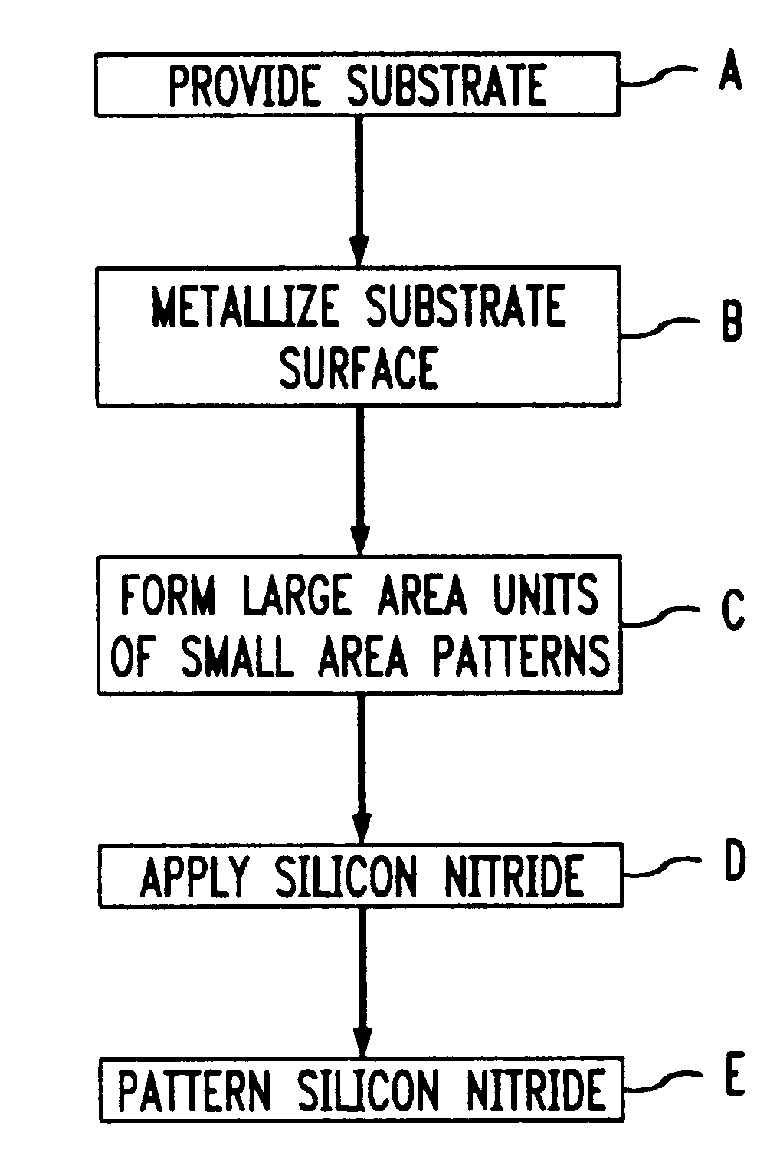

Abstract
The present invention is predicated on applicants' discovery that inhomogeneity in films deposited on heated heterogeneous substrates can be substantially reduced by patterning the large area metal structures. Specifically, metal structures having areas in excess of about 2 mm.sup.2 are patterned so that the metal is within 1 mm of a metal edge. Thus, for example, a normally solid chromium bonding pad on a glass substrate is conveniently made as a patterned, open grid of 1 mm chromium lines. With such patterning, a subsequently deposited layer of silicon nitride has enhanced homogeneity over a large area, including enhanced uniformity of etching rate.
First Claim
Other Claims data not available
