Rotatable striking elements for a handbell
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 2, 1999
Grant Date -
N/A
app pub date -
Feb 26, 1998
filing date -
Mar 17, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

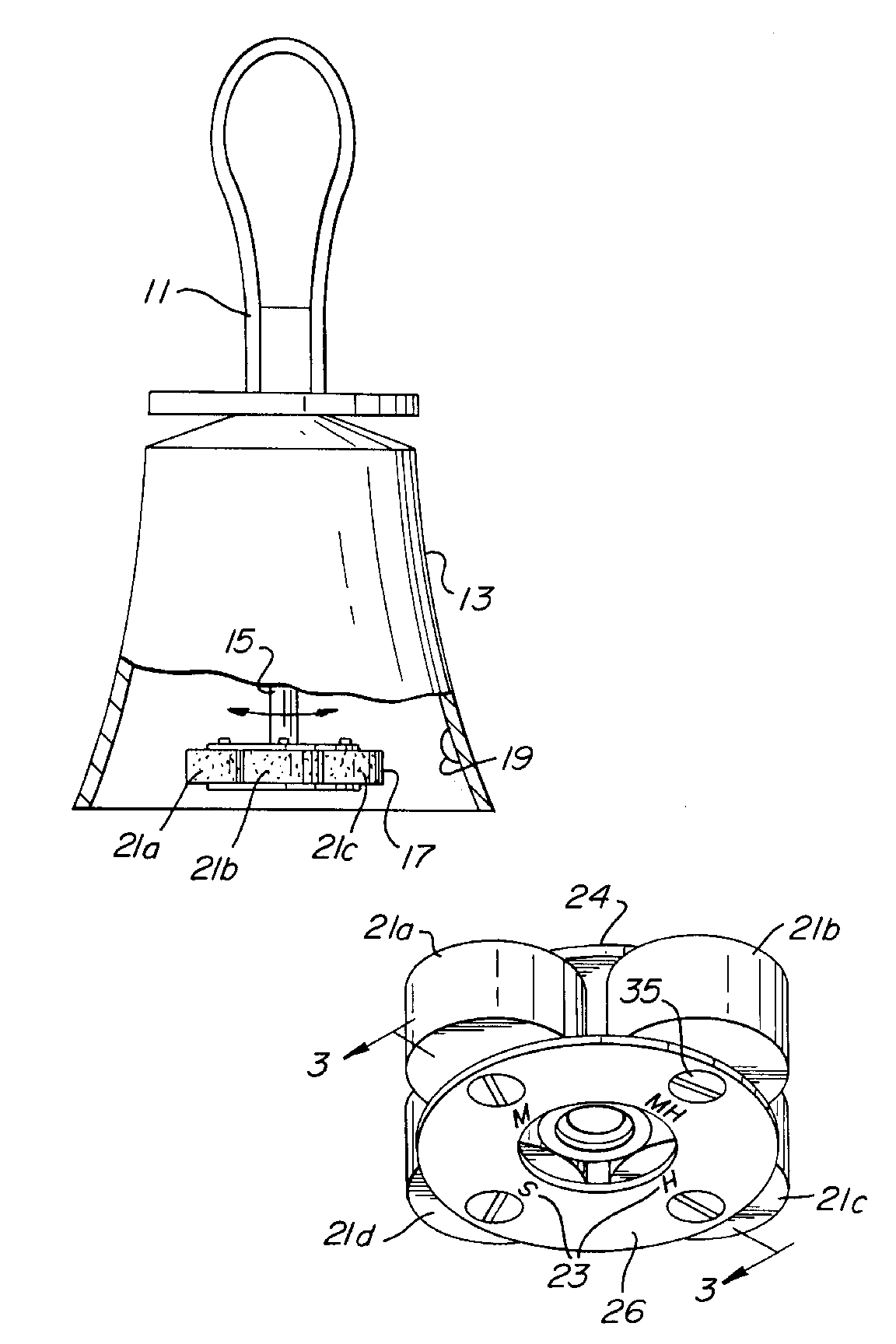

A clapper assembly includes circular strikers which can be individually rotated so that a new portion of the surface of the striker is presented in the direction of the clapper stroke. A pair of opposing plates located at the end of the clapper bar retain circular, donut-shaped striking elements. Each striker is secured between the plates by a retaining screw through the axis of the striking element. By loosening the screws, the individual strikers may be rotated. Thus, when a portion of the striker becomes worn, it may be loosened and manually rotated to a new position so that a fresh unused area is presented. In addition, the entire clapper assembly may be rotated so that strikers of different compressibility can be interchanged.
First Claim
Other Claims data not available
