Air-fuel ratio adjustment device for carburetor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 7, 1999
Issued Date -
N/A
app pub date -
Jun 13, 1997
filing date -
Jun 13, 1996
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

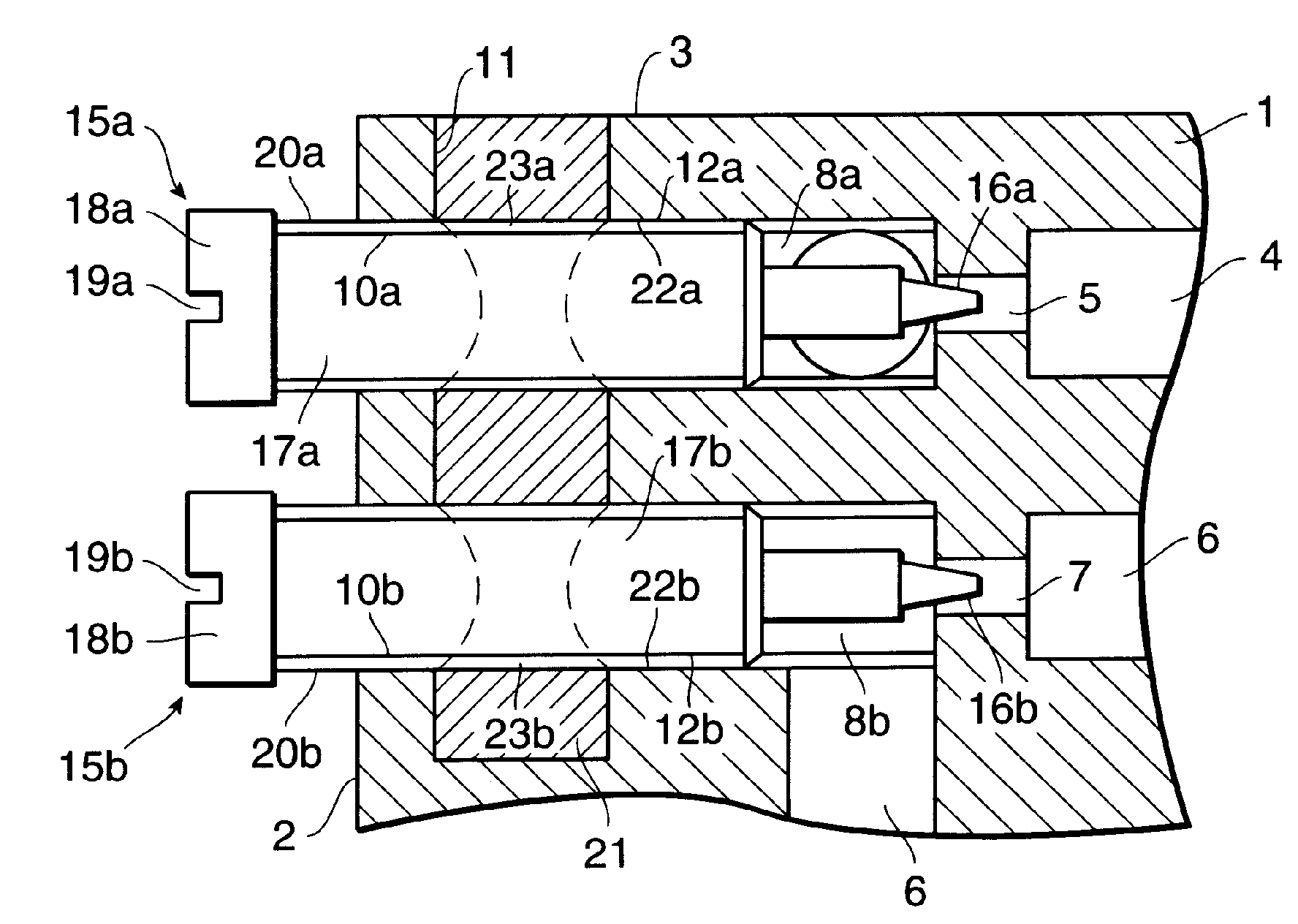

A fastening member made of an elastic material is press-fitted in a gapless manner in an insertion hole that divides screw holes in a carburetor body into forward and rearward sections. Screw rods of adjustment valves are screwed into the screw holes and through screw through-holes formed in the fastening member. The screw through-holes have female screw-threads formed by thread rolling. The female screw-threads maintain pressing contact with the surfaces of male screw-threads on the screw rods as a result of the elastic recovery force of the female screw-threads, so that rattling and fuel leakage tend to be prevented.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- F02M Class
- 3.56 % this patent is cited more than
- 26 Age
