Cartridged ammunition
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 10, 1999
Grant Date -
N/A
app pub date -
May 11, 1998
filing date -
Jul 28, 1995
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

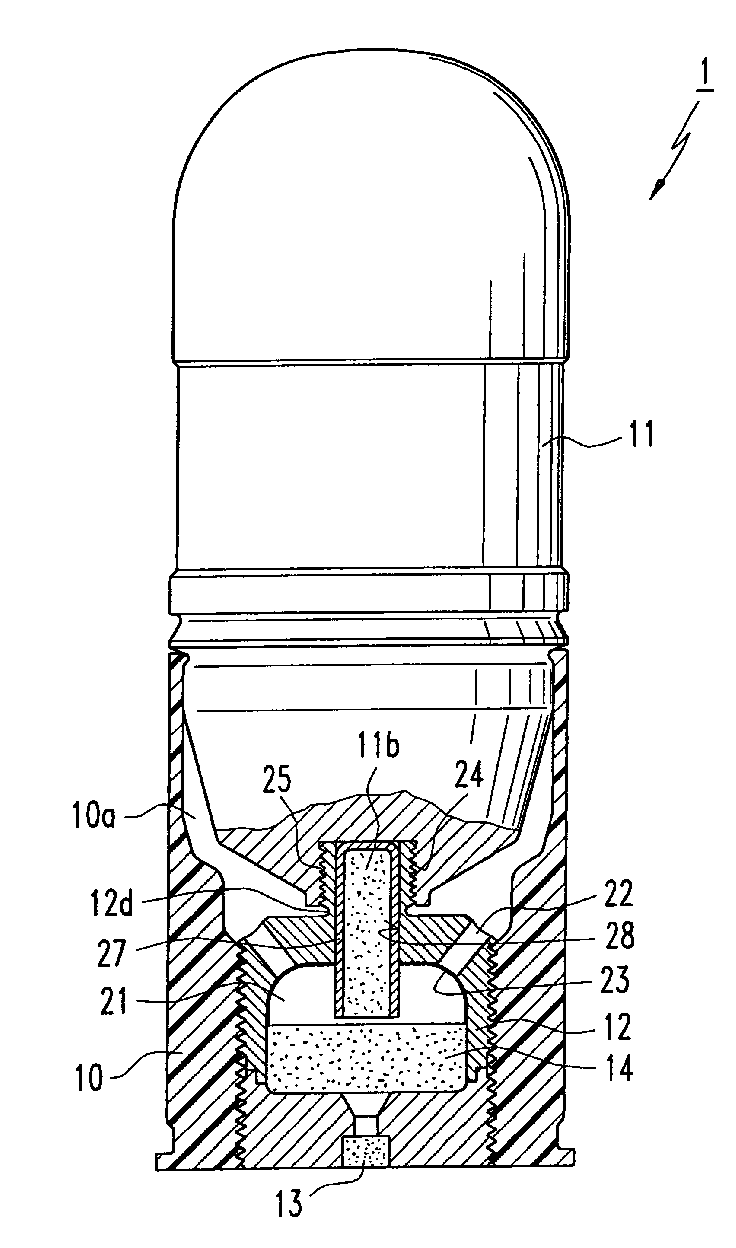

The cartridged ammunition comprises a projectile (11) and a cartridge case (10) receiving the latter. The cartridge case (10) contains a cartridge (12) limiting a high-pressure space (21) in which a propelling charge (14) is located. The cartridge (12) is surrounded by a low-pressure space (10a) limited by the inside walls of the cartridge case (10) and a part of the base of the projectile (11). At the rear of the projectile (11) a tracer composition (11b) is arranged in a tube (27) which protrudes through the upper wall of the cartridge (12) into the high-pressure space (21). Projectile and cartridge case are interconnected via a rated breaking point (12d). The pressure for expelling the projectile (11) from the cartridge case is supplied by the pressure both in the high-pressure space (21) and in the low-pressure space (10a). Upon expulsion the volume of the high-pressure space (21) is furthermore enlarged when the tracer composition is pulled out thereof. These measures avoid steep pressure peaks in the march of pressure upon expulsion of the projectile. At the same time, approximately the entire projectile volume is available for a service charge.
First Claim
Other Claims data not available
