Method for reduction of plasma charging damage during chemical vapor deposition
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 15, 1999
Grant Date -
N/A
app pub date -
Dec 23, 1996
filing date -
Dec 23, 1996
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

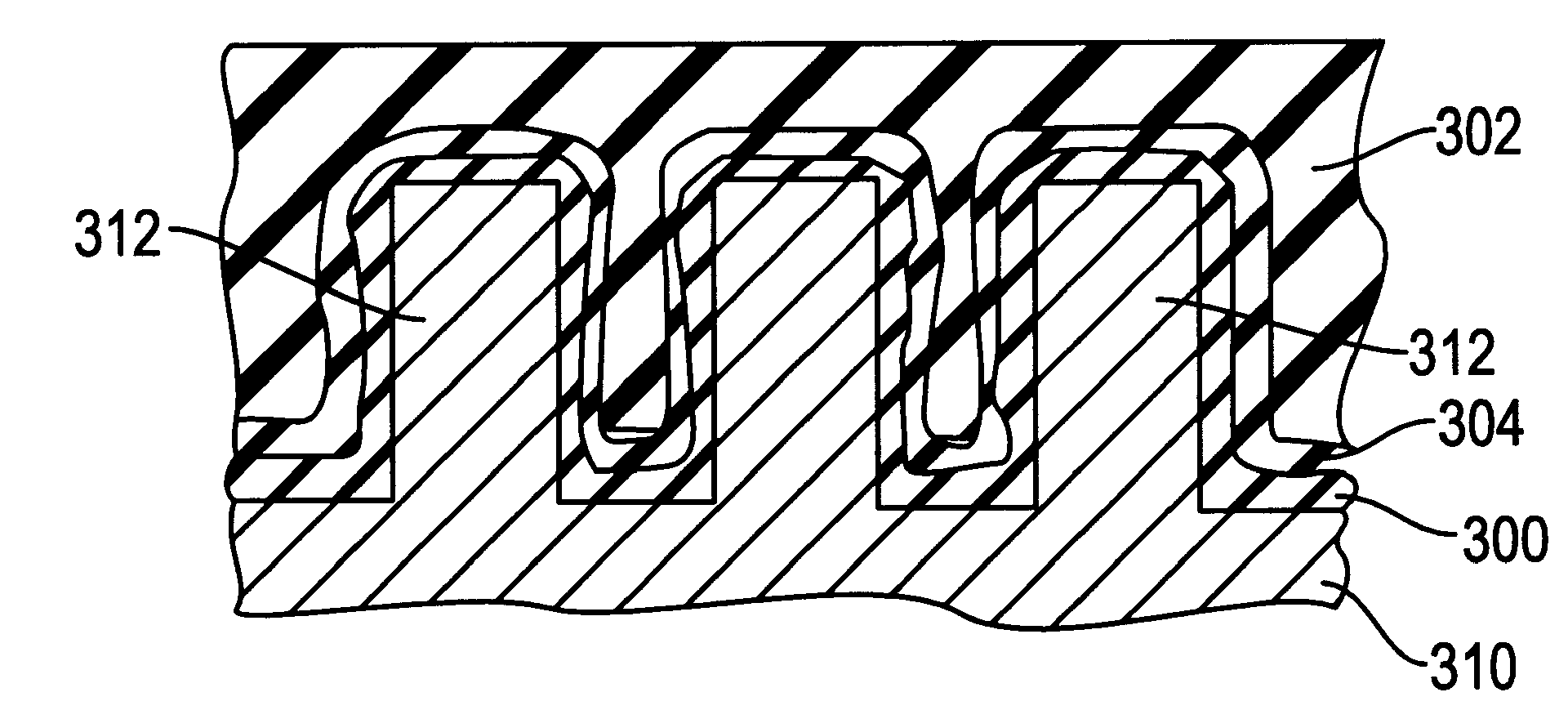

A graded gap fill process in which, in a high density plasma processing chamber, an insulating layer is deposited on a substrate without causing plasma charge-related damage to the substrate. The insulating layer is disposed above a first layer having trenches formed therein and below a subsequently deposited second layer. A protection layer is first deposited above the first layer using a first set of deposition parameters. This protection layer coats a surface of the first layer in a substantially conformal manner without forming voids in the trenches. A fill layer is then deposited above the protection layer using a second set of deposition parameters. The first set of deposition parameters is selected to reduce plasma charge-related damage relative to the second set of deposition parameters. The combination of the protection layer and the fill layer sufficiently electrically isolates the first layer from the second layer.
