Variable control of electronic power supplies
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 1, 1999
Issued Date -
N/A
app pub date -
Dec 3, 1996
filing date -
Nov 16, 1995
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

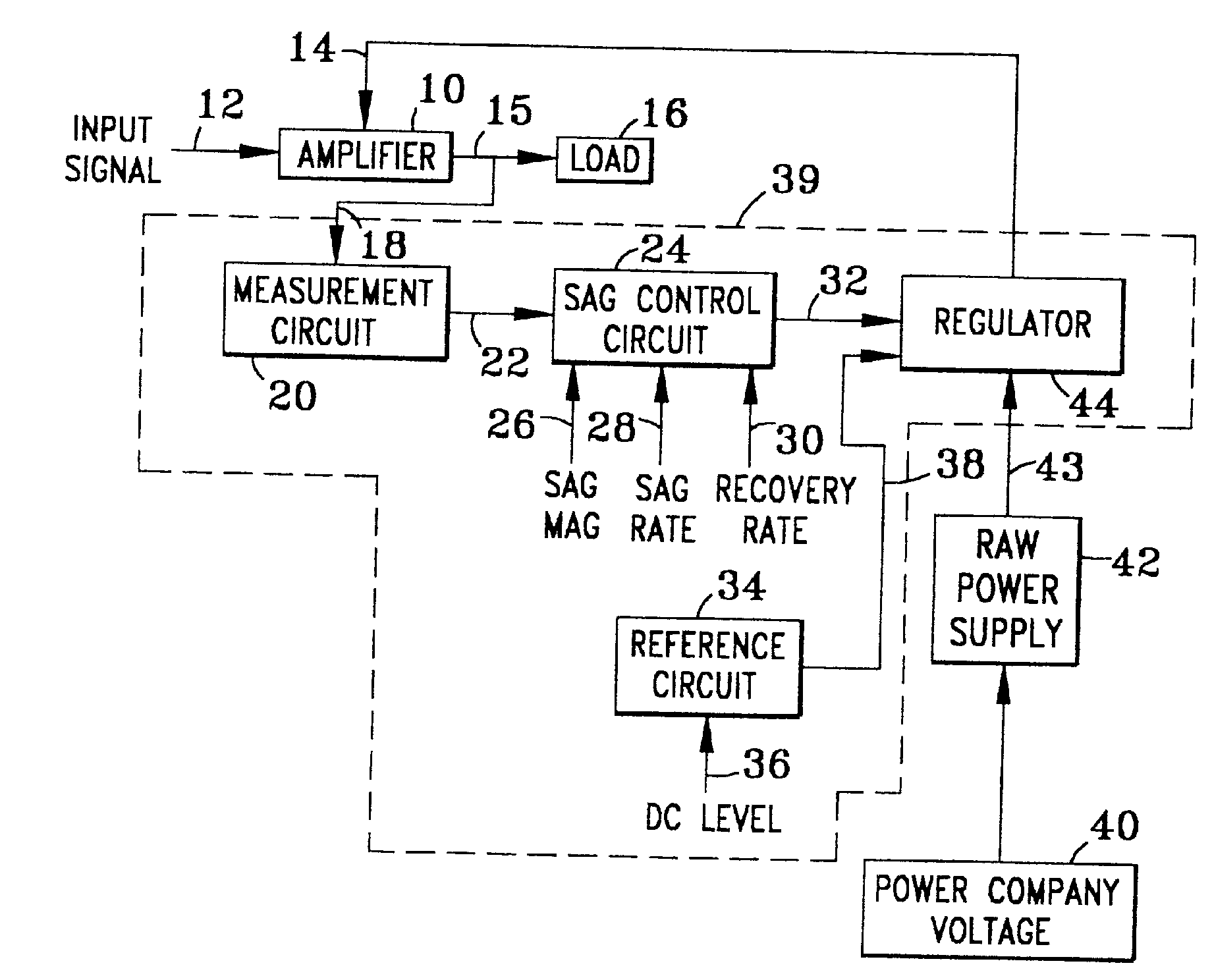

Sag of a power signal delivered to of an amplifier is controlled. The maximum amount of sag is limited to limit crossover distortion. A measuring circuit monitors an observed signal to generate a measured signal. A sag control circuit receives the measured signal and one or more input control signals, and in response generates a sag control signal. A regulator circuit receives the sag control signal and a raw power supply signal and in response generates a regulated DC power supply signal for the amplifier. The regulator circuit decreases the maximum power available to the amplifier as the sag control signal magnitude increases, so as to increase distortion and compression in the output signal (e.g., and achieve a 'warm', 'airy' or 'forgiving' sound quality resembling or improving the sound of a vacuum tube amplifier).
First Claim
Other Claims data not available
Family
International Classification(s)
- Non-US Classification not provided for expired patents
Cited Art Landscape
Patent Citation Ranking
- Citation Ranking not provided for expired patents
