Inspection method and device of wafer surface

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 5903342
SERIAL NO

08629266

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

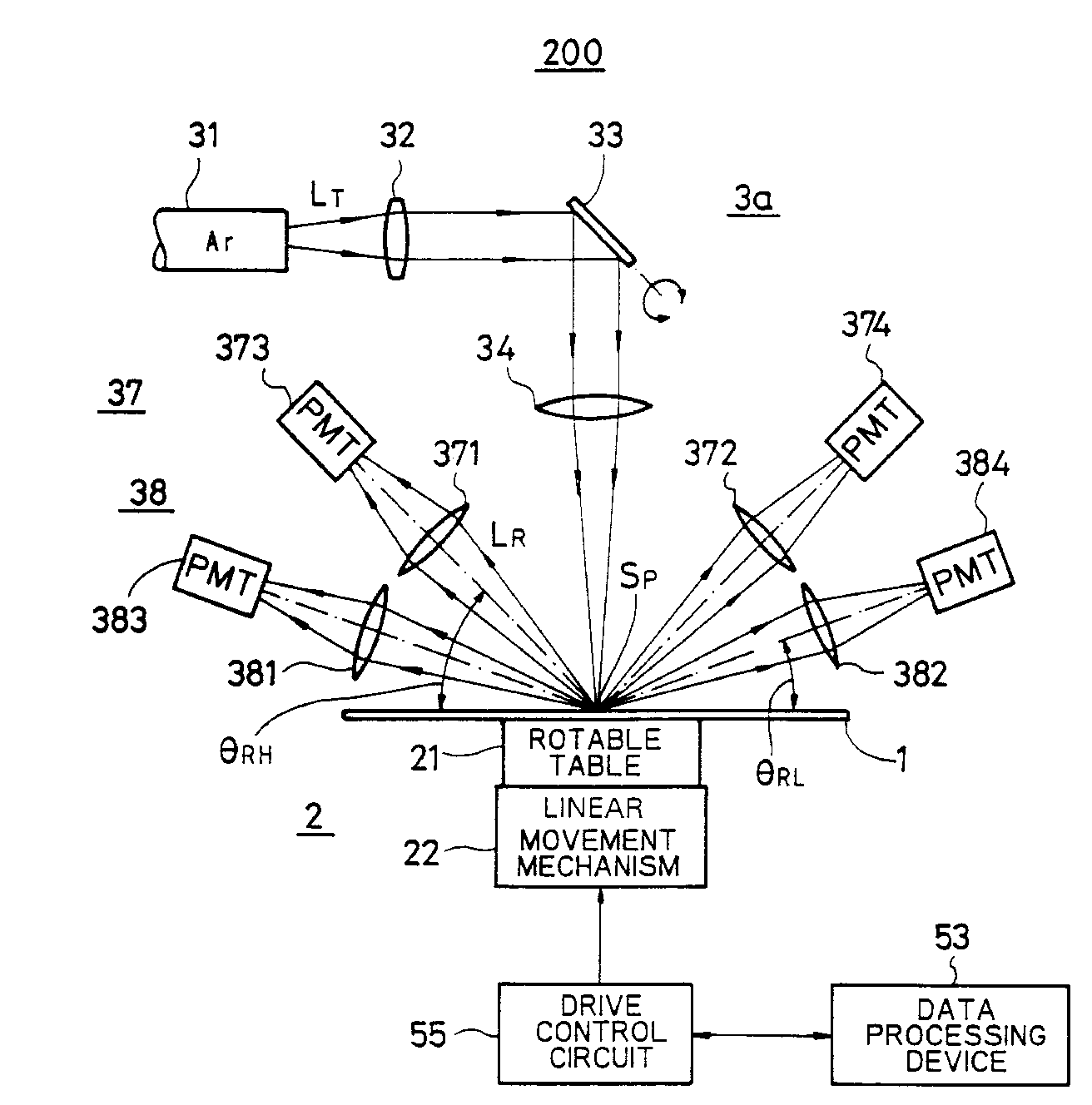

A wafer surface inspection method and device including a low angle light receiving system having an elevation angle less than 30.degree. with reference to the wafer surface, and a high angle light receiving system having an elevation angle equal to or larger than 30.degree., scans the wafer with a laser beam, receives scattered light to perform extraneous substance detection in response to the scanning, and detects wafer defects only by the high angle light receiving system, and sticking extraneous substances by either the low angle receiving system or by both the low angle light receiving system and the high angle light receiving system.
