Electromechanical relay
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 13, 1999
Grant Date -
N/A
app pub date -
May 6, 1998
filing date -
May 6, 1998
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

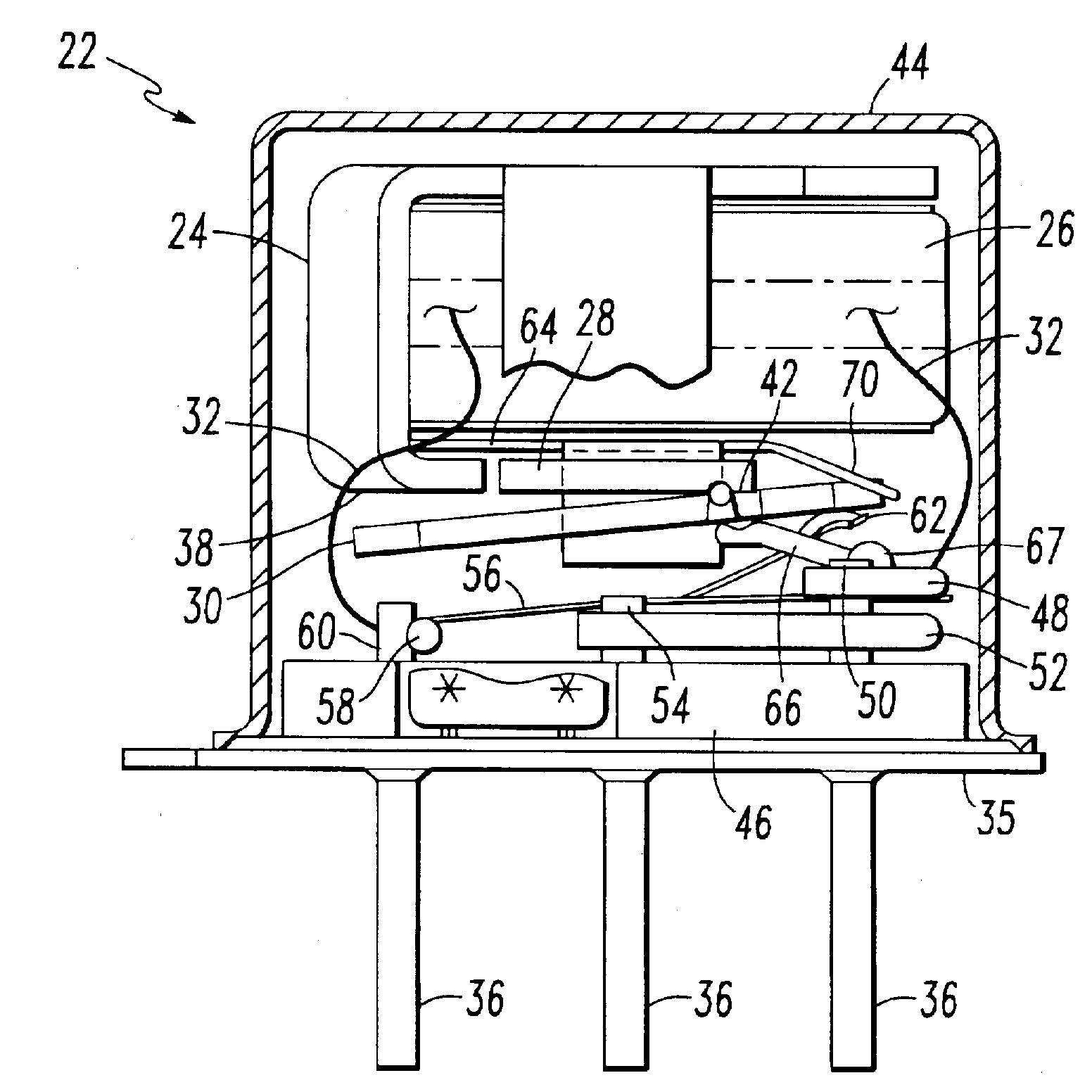

The present disclosure is directed to a relay. The relay includes a frame and a header seal assembly base having contacts and a return spring. The relay also includes an armature assembly which engages the return spring. The armature assembly has at least one actuator. The relay further includes a core assembly located on the armature assembly. The core assembly has an end engaging the frame. The relay also includes a coil shim having a cutout section. The coil shim is connected to the frame and the cutout section engages the armature assembly when the relay is in the de-energized state. The coil shim has an opening for accepting the core assembly. The relay also includes a coil engaging the coil shim. The coil has an opening for accepting the core assembly.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- H01H Class
- 6.72 % this patent is cited more than
- 26 Age
