Digital multi-channel demultiplexer/multiplex (MCD/M architecture)
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 2, 1999
Grant Date -
N/A
app pub date -
Jun 27, 1997
filing date -
Jun 27, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

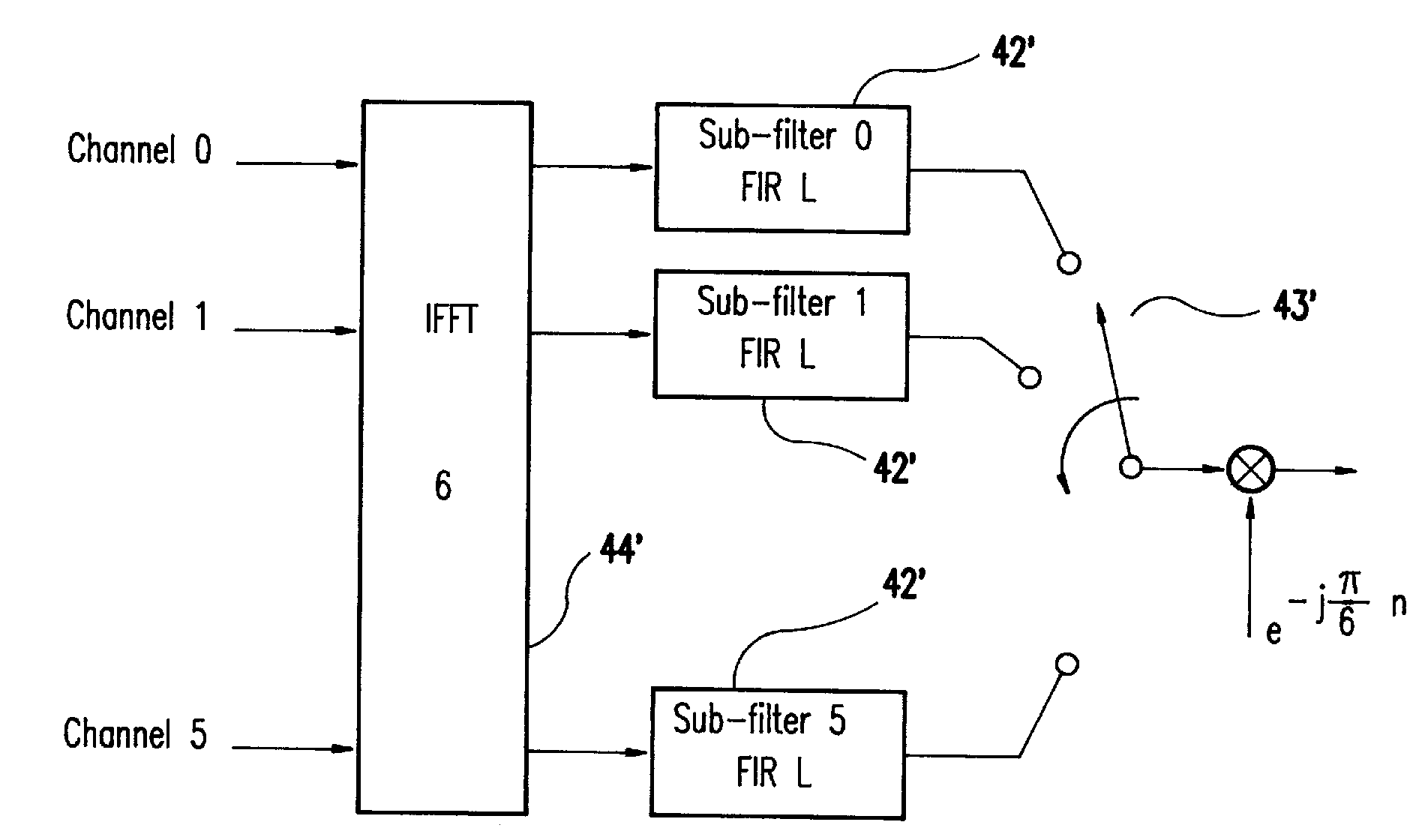

A digital signal processing system for multiplexing/demultiplexing a large number of closely spaced FDM channels in which sub-band definition filtering divides the FDM spectral band comprised of 'N' channels into 'K' sub-bands in order to reduce the dimension of the polyphase filter fast Fourier transform structure required to complete the multiplexing/demultiplexing. This reduces the order of the required prototype filter by a factor proportional to K. The number of sub-bands K is chosen so that it is large enough to ensure the polyphase filter, fast Fourier transform structure for each sub-band is realizable within a finite word length, fixed point arithmetic implementation compatible with a low power consumption. To facilitate efficient sub-band definition filtering, the real basebanded composite signal is inputted at a spectral offset from DC equal to one quarter the FDM channel bandwidth for the N channels and the signal is sampled at a frequency 50% greater than the applicable Nyquist rate. The quarter band spectral offset and oversampling by 50% above the theoretical Nyquist rate facilitate the use of computationally efficient bandshift and symmetric half-band Finite Impulse Response (FIR) filtering.
