Assembly including preloaded bearings
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 19, 1999
Grant Date -
N/A
app pub date -
Sep 12, 1997
filing date -
Sep 12, 1997
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

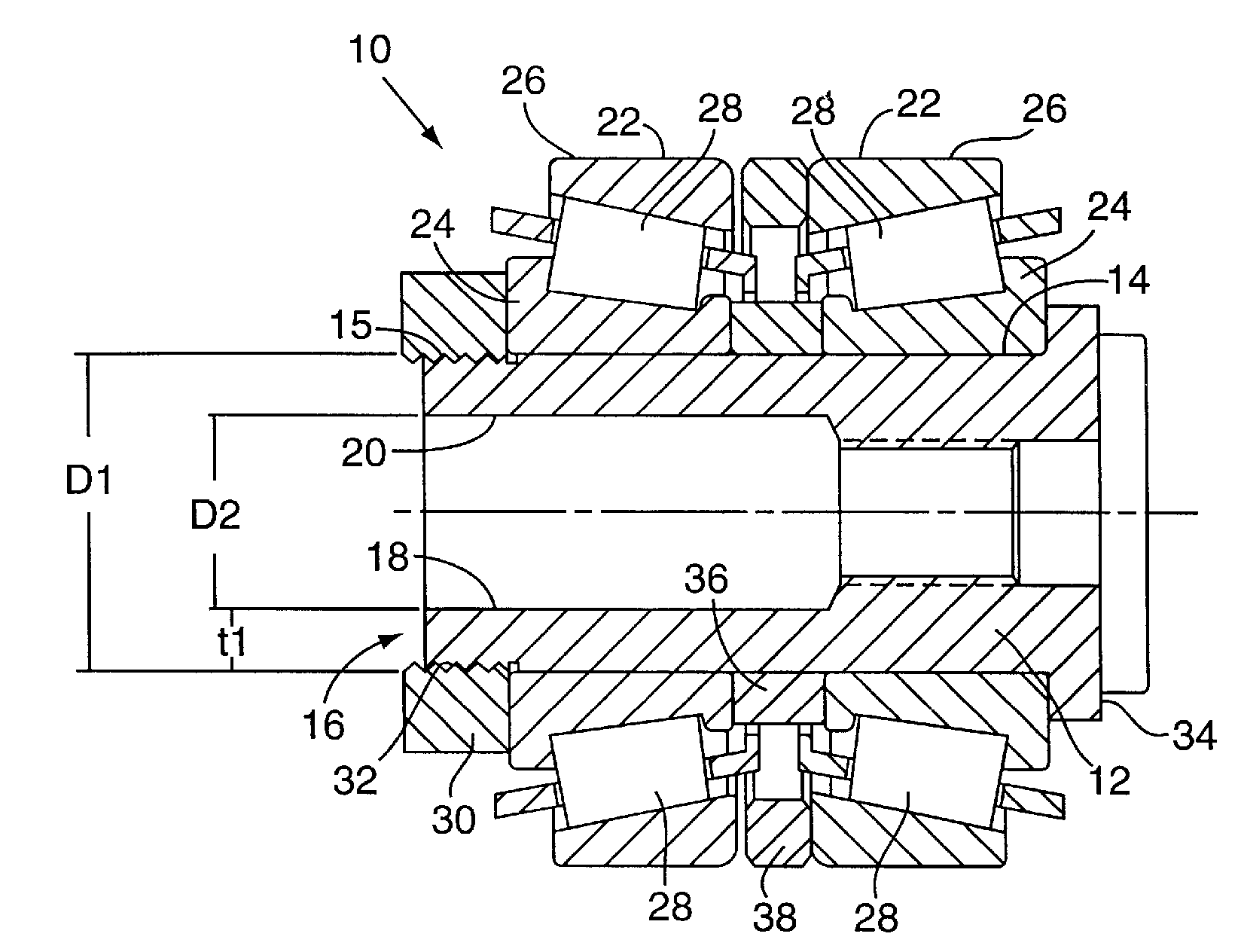

In an assembly including preloaded bearings, a sleeve is provided and has an exterior surface and an externally threaded section adjacent to an end of the sleeve. At least two bearings, each having an inner bearing race, an outer bearing race, and a plurality of rolling elements positioned between the inner and outer bearing races, are slidably mounted on the exterior surface of the sleeve. The sleeve further includes a bore extending part-way into the sleeve adjacent to the externally threaded section, the bore defining inner interior surface. A bearing retainer is also provided and includes an internally threaded section engaged with the external threads of the sleeve for urging the inner bearing race of one of the bearings toward the inner bearing race of the other bearing, thereby preloading the bearings. The exterior surface of the sleeve and the interior surface of the bore cooperate to define a cylindrical sleeve thickness that allows the sleeve to stretch as the bearing retainer is tightened against the inner race of one of the bearings, thereby urging the external threads of the sleeve against the internal threads of the retainer, preventing the retainer from loosening as the machine in which the assembly is installed, is operated.
