Agitator paddle rotor for mash kettles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 29, 1998
Grant Date -
N/A
app pub date -
Oct 29, 1996
filing date -
Oct 30, 1995
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

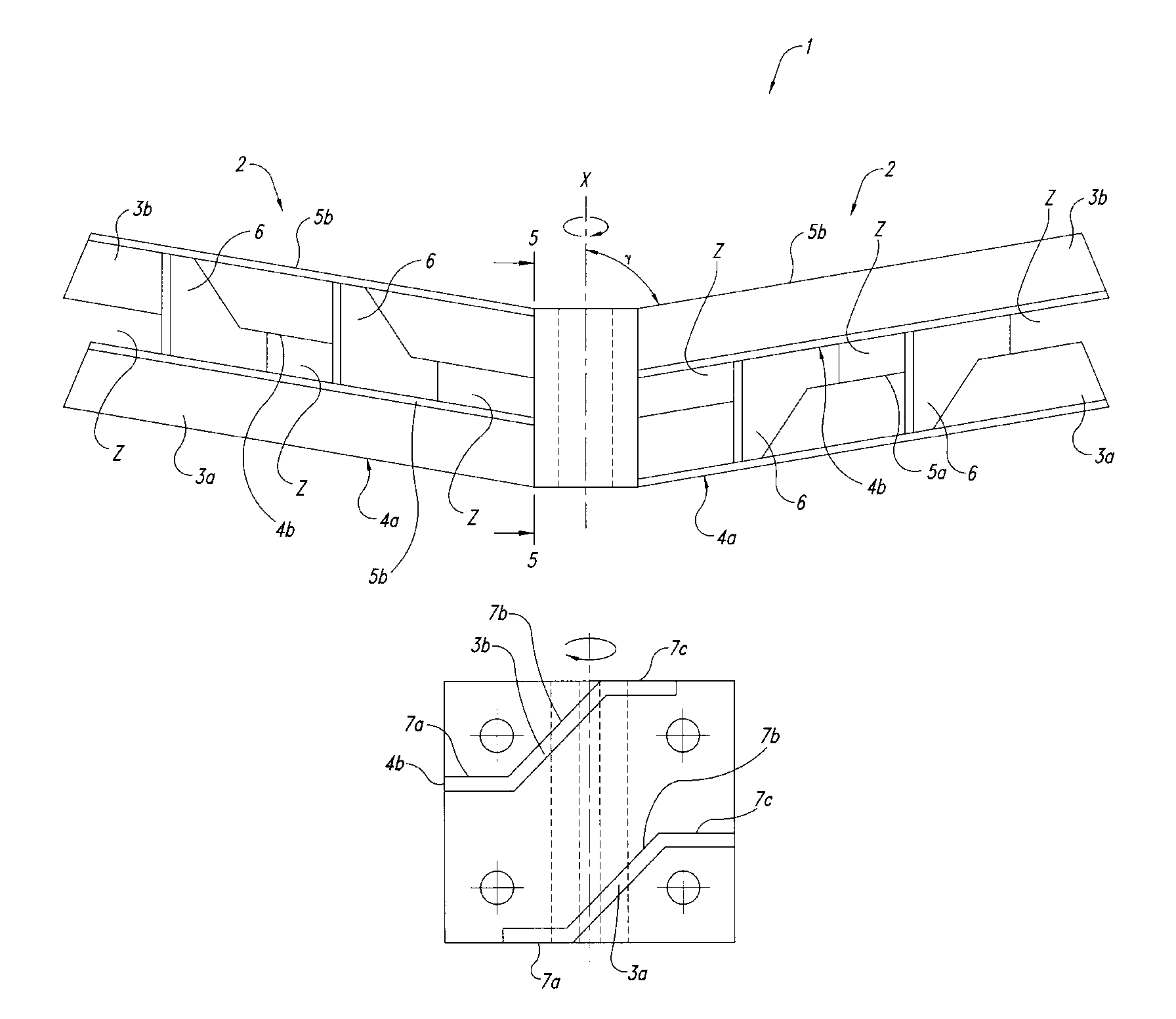

An agitator paddle rotor for mash kettles in brewing, the rotor being rotatingly arranged above the bottom of the mash kettle, comprising at least two radially extending agitator paddles of which each comprises at least one obliquely oriented paddle section. To obtain an effective thorough mixing, at least one paddle section has a front paddle portion which is the front one in rotational direction and which substantially ends in parallel with the bottom of the mash kettle, an upwardly oriented central paddle portion, and a rear paddle portion which is the rear one in rotational direction and is substantially oriented in parallel with the bottom of the mash kettle.
First Claim
Other Claims data not available
