Method of making window frame for concrete wall panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 1998
Issued Date -
N/A
app pub date -
Aug 9, 1996
filing date -
Apr 8, 1992
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

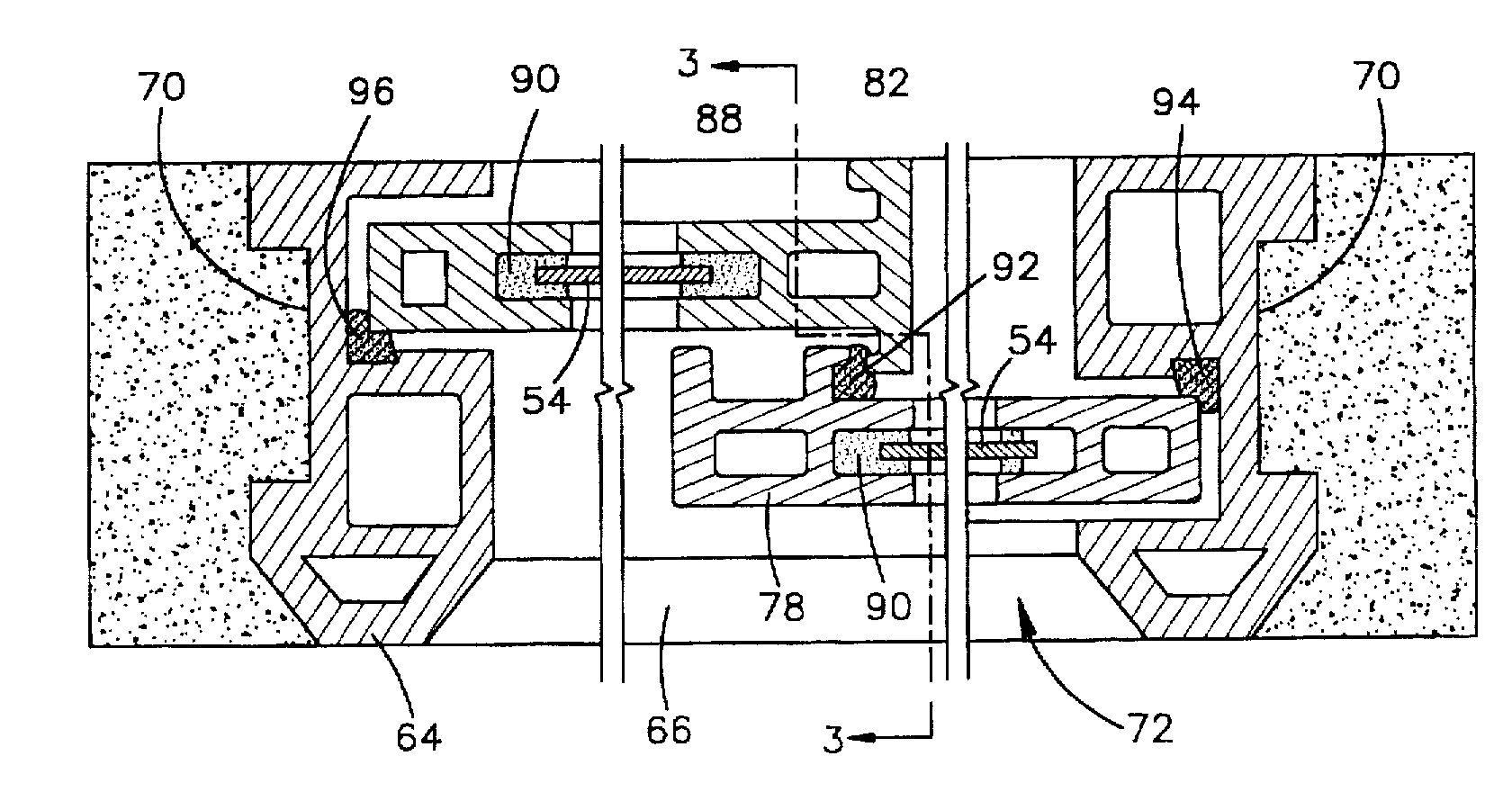

A method of making a combination concrete panel wall, concrete window frame, and concrete sash glazing frame. The sill, lintel, and jambs of the window frame are fiber-reinforced concrete extrusions which are cut to length and cemented together. The hardened frame is placed in a concrete panel molding frame to locate and define a window opening. The concrete panel wall grout is then poured and dovetail-type mortise and tenon joints are precast in the exterior faces of the window frame which abut the poured concrete wall panel plastic grout, to permanently mold and interlock the window frame to the panel wall. The sash members are fitted about a window pane which is located in interior grooves in the sash members and then glazed. Sealing means interconnect the sash to the window frame to provide a condensation-resistant, water-tight, air-tight, heat and fire-resistant concrete wall closure.
First Claim
Other Claims data not available
