Die member for use in cross-head die apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 21, 1998
Issued Date -
N/A
app pub date -
Jun 16, 1997
filing date -
Jan 2, 1996
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

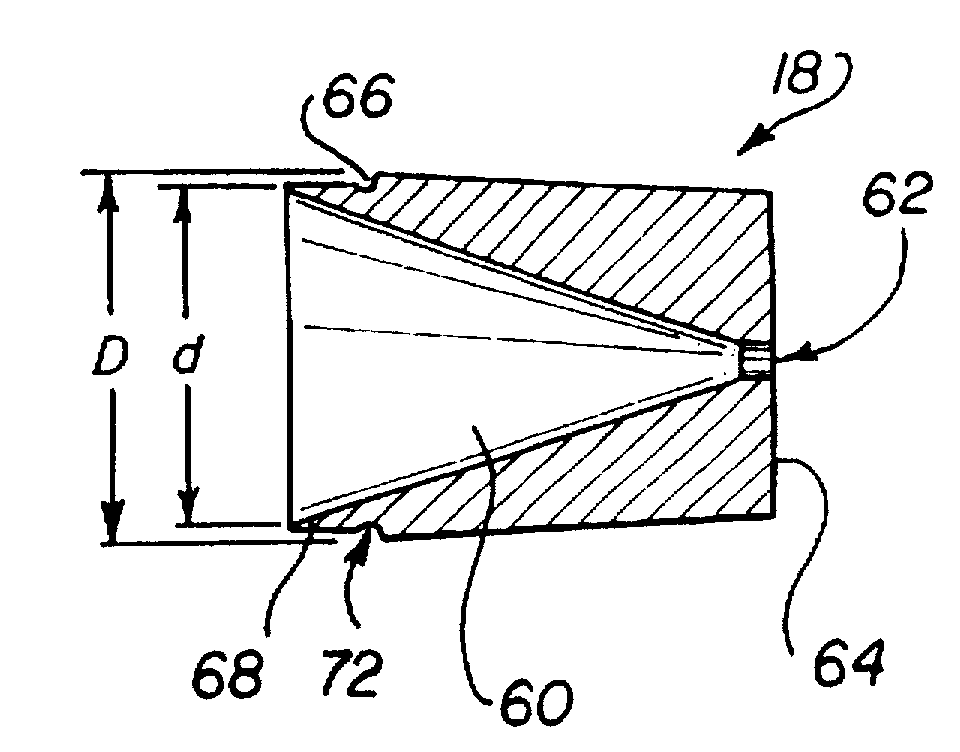

A novel die member for positioning in a uniformly tapering, frustoconical portion of a through bore in a body member of co-extrusion, cross-head coating apparatus. The die member has an external surface with a first, frustoconical portion dimensioned for mating engagement with the body member bore extending from the front end of the die member and tapering outwardly to terminate in a plane parallel to and intermediate of the planes of the front and rear ends of the member. A second, cylindrical, external surface portion, of smaller diameter than the adjacent, larger end of the first surface portion, extends to the rear end of the die member. An annular groove of substantially semi-circular cross section extends into and 360.degree. about the second surface portion rearwardly adjacent the first surface portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 27 Age
