Tape cassette holder seperating mechanism of magnetic recording and reproducing apparatus having multiple thread worm for permitting moving of the cassette holder when unpowered
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 1998
Issued Date -
N/A
app pub date -
Jan 8, 1997
filing date -
Nov 21, 1992
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

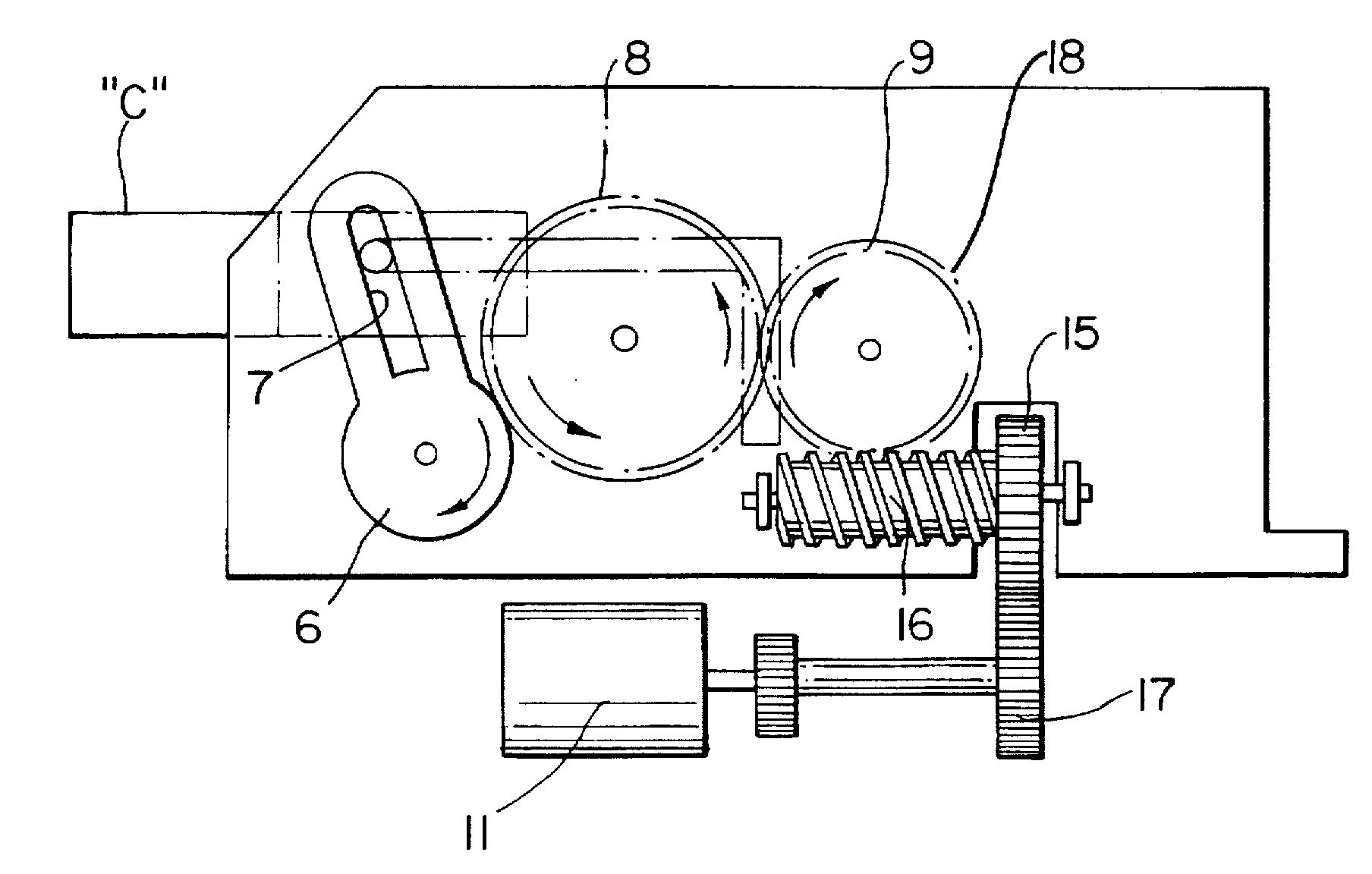

A front loading device of a magnetic recording and reproducing apparatus comprises a plurality of gears gearing into each other, a worm and a worm gear. One of the plurality of gears engages with an arm gear moving a cassette holder. The worm and the worm gear engage with each other in order to reversibly rotate each other. The worm is coaxially connected to a loading motor in order to cooperate with the loading motor, and the worm gear is integrally formed with another one of the plurality of gears. The device allows a cassette along with the cassette holder to smoothly move inward along a guide opening of a bracket when the cassette is mistakenly inserted into the cassette holder and forcibly pushed such as by a child under the condition that a loading motor is applied with no electric power. Damage to the elements of the device is thereby prevented.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G11B Class
- 5.07 % this patent is cited more than
- 27 Age
