Method and apparatus for operating a diesel engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 1998
Grant Date -
N/A
app pub date -
Nov 20, 1996
filing date -
Nov 20, 1995
priority date (Note) -
In Force
status (Latency Note)
Importance

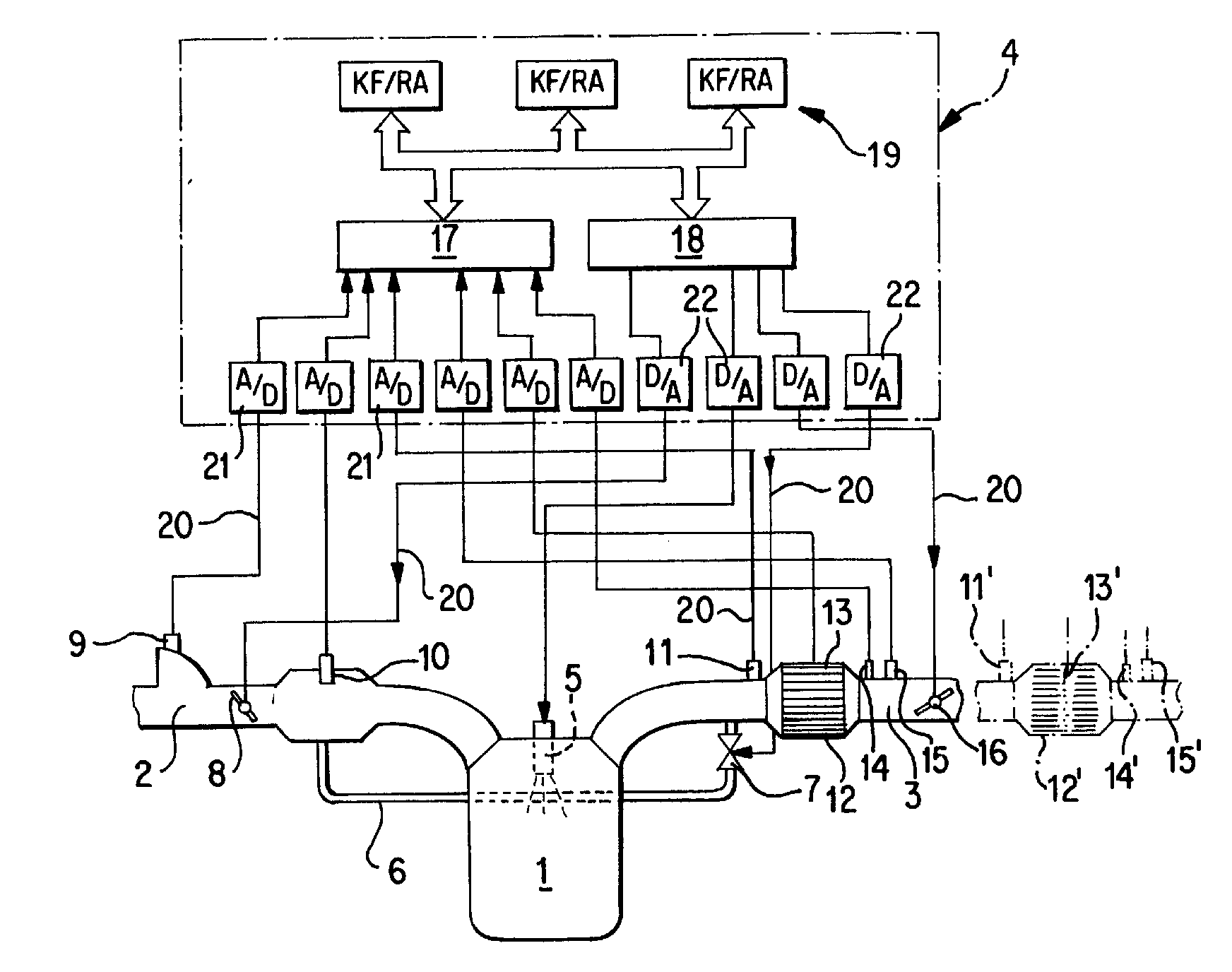

Abstract
A method and an apparatus are provided for operating a diesel engine with an exhaust feedback device located between the exhaust line and the intake air line, with an adjusting element that can be operated by an adjusting drive actuated by an auxiliary force to operate the exhaust feedback device as a function of signals from an electronic control device. An engine regulator permits rich/lean regulation of the diesel engine as a function of its operating parameters. A storage catalyst is located in the exhaust line, in which catalyst oxides of nitrogen (NO.sub.x) can be adsorbed, desorbed, and reduced. A sensor is located downstream from the storage catalyst for detecting the NO.sub.x concentration in the exhaust stream in such fashion that when an NO.sub.x storage threshold value is reached that varies in terms of its characteristics as a function of the rpm and the load, a switch is made from operation with a lambda value of larger than 1 to operation with a lambda value of less than 1.
First Claim
Other Claims data not available
