Process for continuously applying a water-based filler material to a substrate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 31, 1998
Grant Date -
N/A
app pub date -
Jan 11, 1996
filing date -
Oct 5, 1994
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

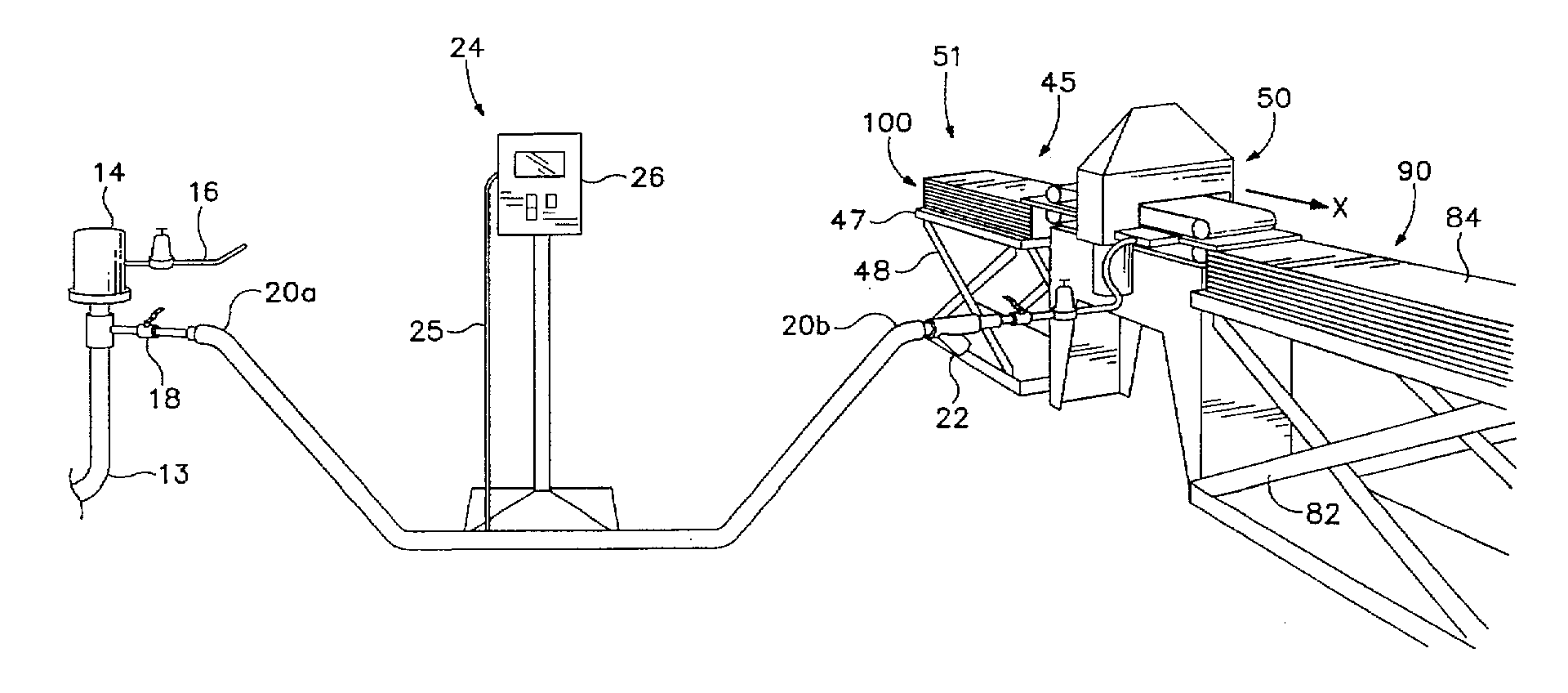

A process is provided for continuously applying a substantially uniform and smooth filler of a water-based filler material to underlying wood substrates. The process comprises introducing the underlying wood substrates into a filler application area. Then, the initial temperature of the outer surface of the underlying wood substrates is determined. Prior to applying the water-based filler material, the initial temperature of said water-based filler material is determined. Prior to applying same to said underlying wood substrates, the initial temperature of the water-based filler material is continuously adjusted, based on the initial temperature of the underlying wood substrate, so that the final temperature of the water-based filler material of the outer surface of the underlying substrate is maintained. The water-based filler material is continuously applied to the outer surface of the underlying wood substrates in the filler application area. Underlying wood substrates that are substantially uniformly and smoothly coated with said water-based filler material are formed by this process.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
WILLAMETTE VALLEY COMPANY | EUGENE OR |
International Classification(s)

- 1996 Application Filing Year
- B05D Class
- 988 Applications Filed
- 448 Patents Issued To-Date
- 45.35 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Arrington, Donald L | Dry Prong, LA | 2 | 5 |
# of filed Patents : 2 Total Citations : 5 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 3 Citation Count
- B05D Class
- 2.34 % this patent is cited more than
- 27 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Jan 06, 2025 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 8TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1552); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 8 |
Sep 30, 2020 | MAFP | MAINTENANCE FEE PAYMENT | free format text: PAYMENT OF MAINTENANCE FEE, 4TH YEAR, LARGE ENTITY (ORIGINAL EVENT CODE: M1551); ENTITY STATUS OF PATENT OWNER: LARGE ENTITY year of fee payment: 4 |
Jul 04, 2017 | I | Issuance | |
Jun 14, 2017 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Nov 05, 2015 | P | Published | |
Jul 14, 2015 | F | Filing | |
Mar 13, 2009 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:MCGINNIS, PETER B.;HOFMANN, DOUGLAS A.;REEL/FRAME:036687/0361 Owner name: OCV INTELLECTUAL CAPITAL, LLC, OHIO Effective Date: Mar 13, 2009 |
