Method for testing a ball grid array semiconductor device and a device for such testing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 24, 1998
Grant Date -
N/A
app pub date -
Jan 26, 1996
filing date -
Jan 26, 1996
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

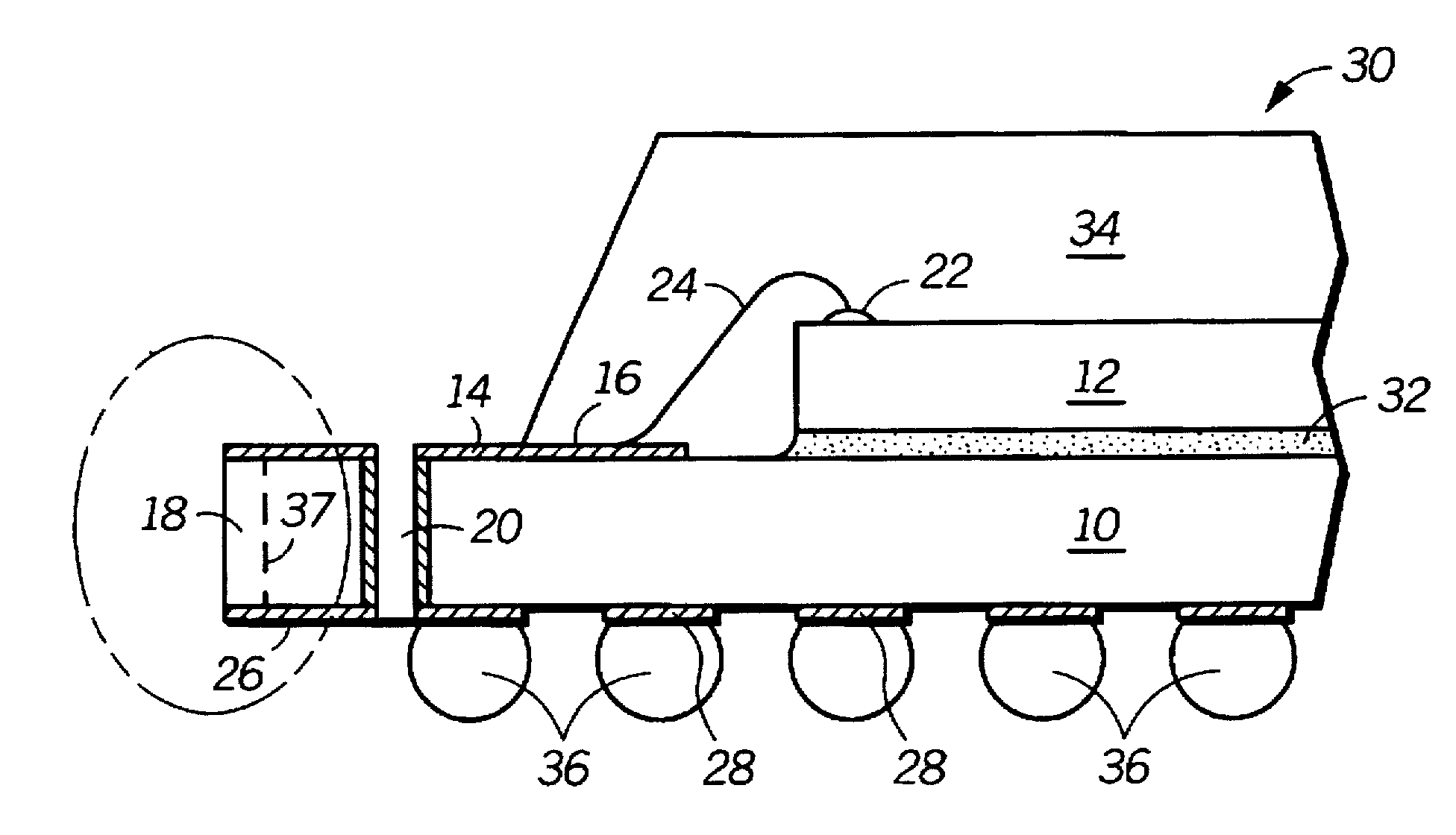

A ball grid array semiconductor device (30) includes a plurality of conductive balls (36) and a plurality of conductive castellations (18) around its periphery as redundant electrical connections to a semiconductor die (12). During testing of the device in a test socket (50), the conductive castellations are contacted by test contacts (54). The test contacts do not come in physical contact with the conductive balls. As a result, when testing is performed at elevated temperatures near the melting point of the conductive balls, the conductive balls are not deformed by the test contacts, thereby eliminating cosmetic-defects. Additionally, the absence of physical contact between the conductive balls and the test contacts during testing reduces the likelihood that conductive balls will inadvertently fuse to the test socket or create solder build-up on the test contacts.
