Cationic imidazole azo dyes

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 5708151
SERIAL NO

08552153

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

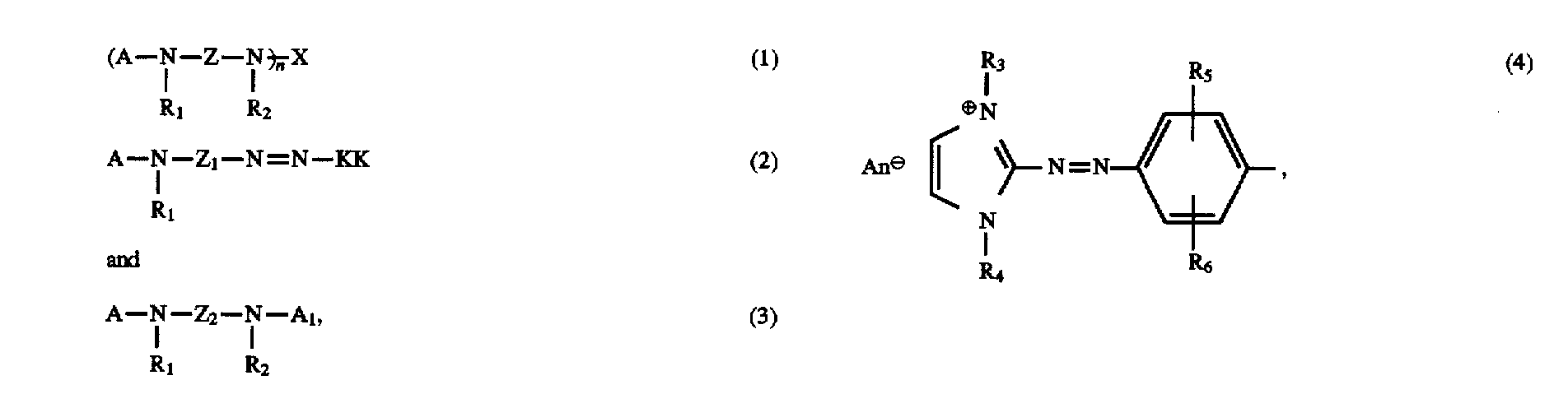

The cationic imidazole azo dyes of the formulae ##STR1## in which A and A.sub.1 independently of one another are each a radical of the formula ##STR2## Z is the radical of an aliphatic or aromatic diamine, R.sub.1 and R.sub.2 are each hydrogen or substituted or unsubstituted C.sub.1 -C.sub.4 alkyl or, together with the two nitrogen atoms to which they are attached and with Z, form a 5-, 6- or 7-membered ring, X is the radical of a bridging member, n is 2, 3 or 4, Z.sub.1 is the radical of an aromatic diamine, Z.sub.2 is the radical of an aliphatic diamine, KK is the radical of a coupling component, R.sub.3 and R.sub.4 are each hydrogen or substituted or unsubstituted C.sub.1 -C.sub.4 alkyl, R.sub.5 and R.sub.6 independently of one another are each hydrogen or substituted or unsubstituted C.sub.1 -C.sub.4 alkyl or C.sub.1 -C.sub.4 alkoxy and An.sup..crclbar. is a colorless anion, are particularly suitable for the dyeing of paper in red or violet shades having good fastness properties.

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
CIBA SPECIALTY CHEMICALS CORPORATIONTARRYTOWN NY

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Mockli, Peter Schonenbuch, CH 23 521
