Thermally activated vent damper
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 9, 1997
Grant Date -
N/A
app pub date -
Feb 8, 1995
filing date -
Feb 8, 1995
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

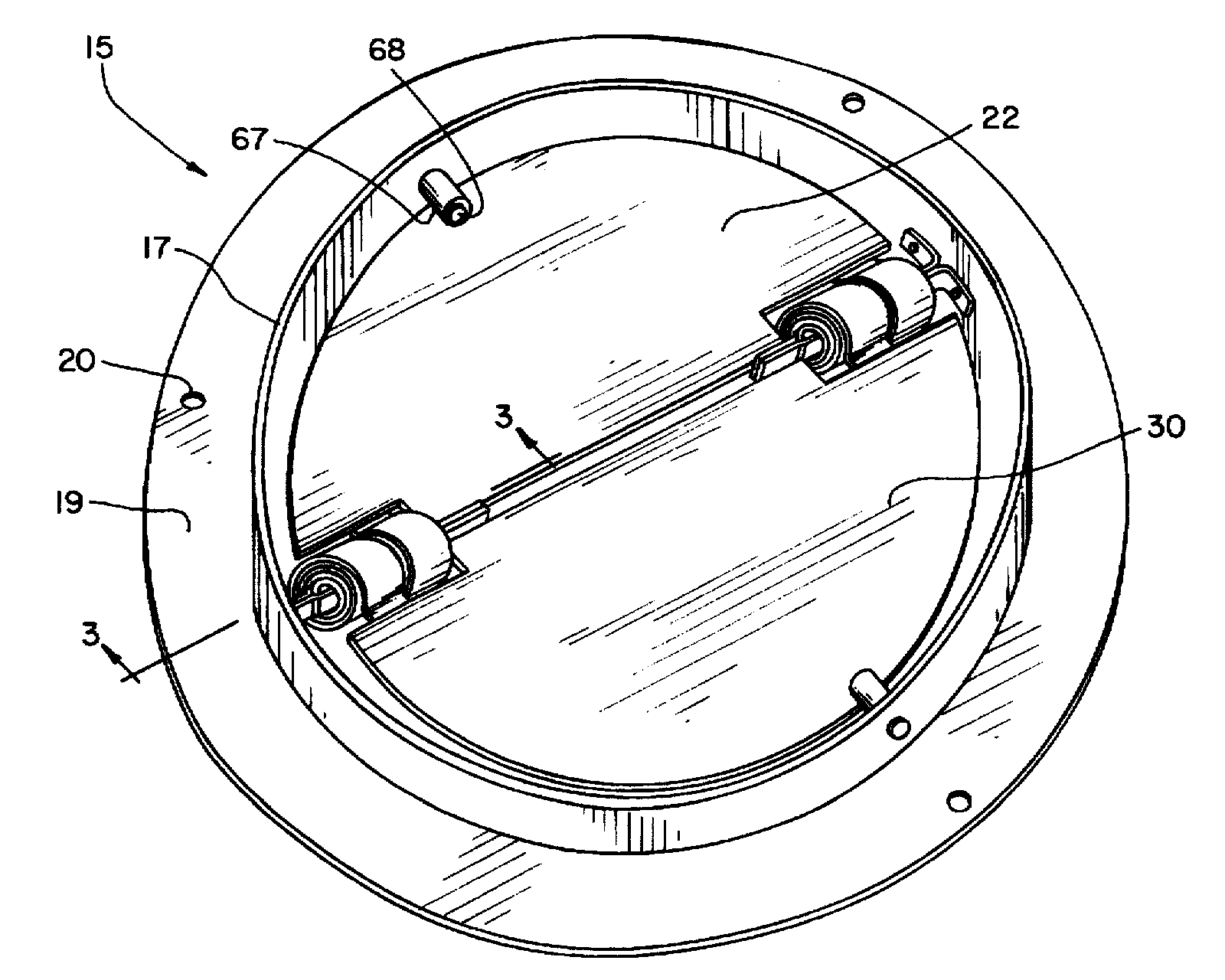

A thermally activated vent damper assembly for occluding passage of gases in a passageway such as a flue. The assembly includes first and second damper members which are pivotable about a common axis. Coaxial first and second support members which are spaced apart along the common axis support thermally activated biasing members which are attached to the damper members to thereby suspend the damper members within the flue. When heated, the biasing members pivot the first and second damper members about their common axis from a flue closing orientation to a flue opening orientation. The assembly may include a housing mountable to the flue and to which the first and second support members are attached.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- G05D Class
- 5.95 % this patent is cited more than
- 28 Age
