Tire-stacking device and accessories for use in cooperative arrangement with a lift truck
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 2, 1997
Grant Date -
N/A
app pub date -
Jun 19, 1996
filing date -
Jul 21, 1992
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

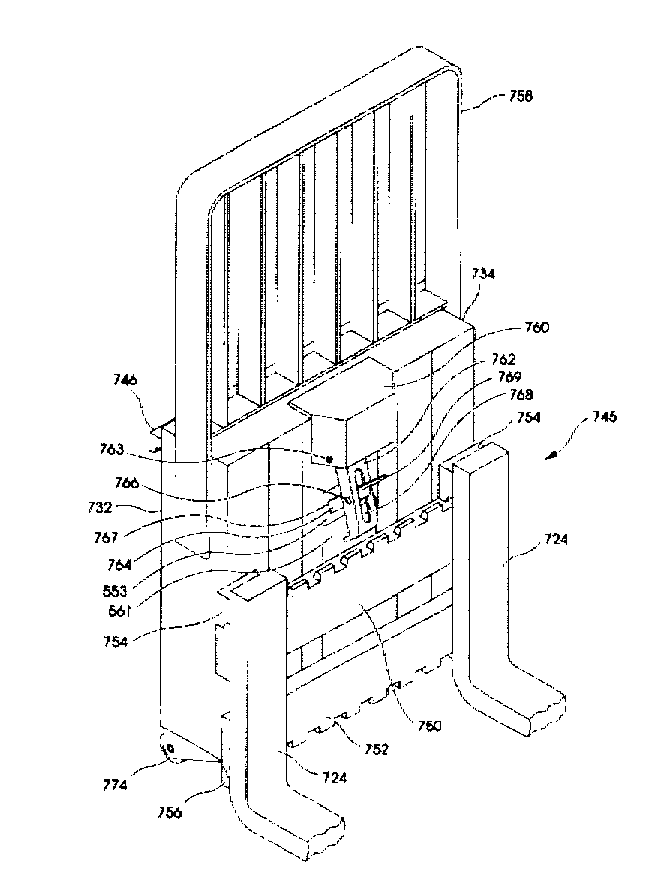

The tire-stacking device includes a platform for placing a plurality of tires side by side when the device is in a horizontal position. The device is thereafter raised by the lifting apparatus of a lift truck to a vertical position. The stack of tires is supported in this vertical position by a clamping arrangement attached to the base end of the device. The clamping arrangement is selectively releasable to permit an operator to deposit the stack of tires at a desired location. A hook is also provided for connecting the device to the lifting apparatus of a lift truck. A fork apparatus is further provided to be used in cooperative arrangement with the hook, a pair of existing fork lift forks, and a lift truck to lift and transport objects. A cart apparatus is also provided for facilitating the mounting and dismounting of the hook to the lifting apparatus of the lift truck.
First Claim
Other Claims data not available
