Pressure reducing system and method for using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 11, 1997
Grant Date -
N/A
app pub date -
Oct 2, 1995
filing date -
Jul 22, 1993
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

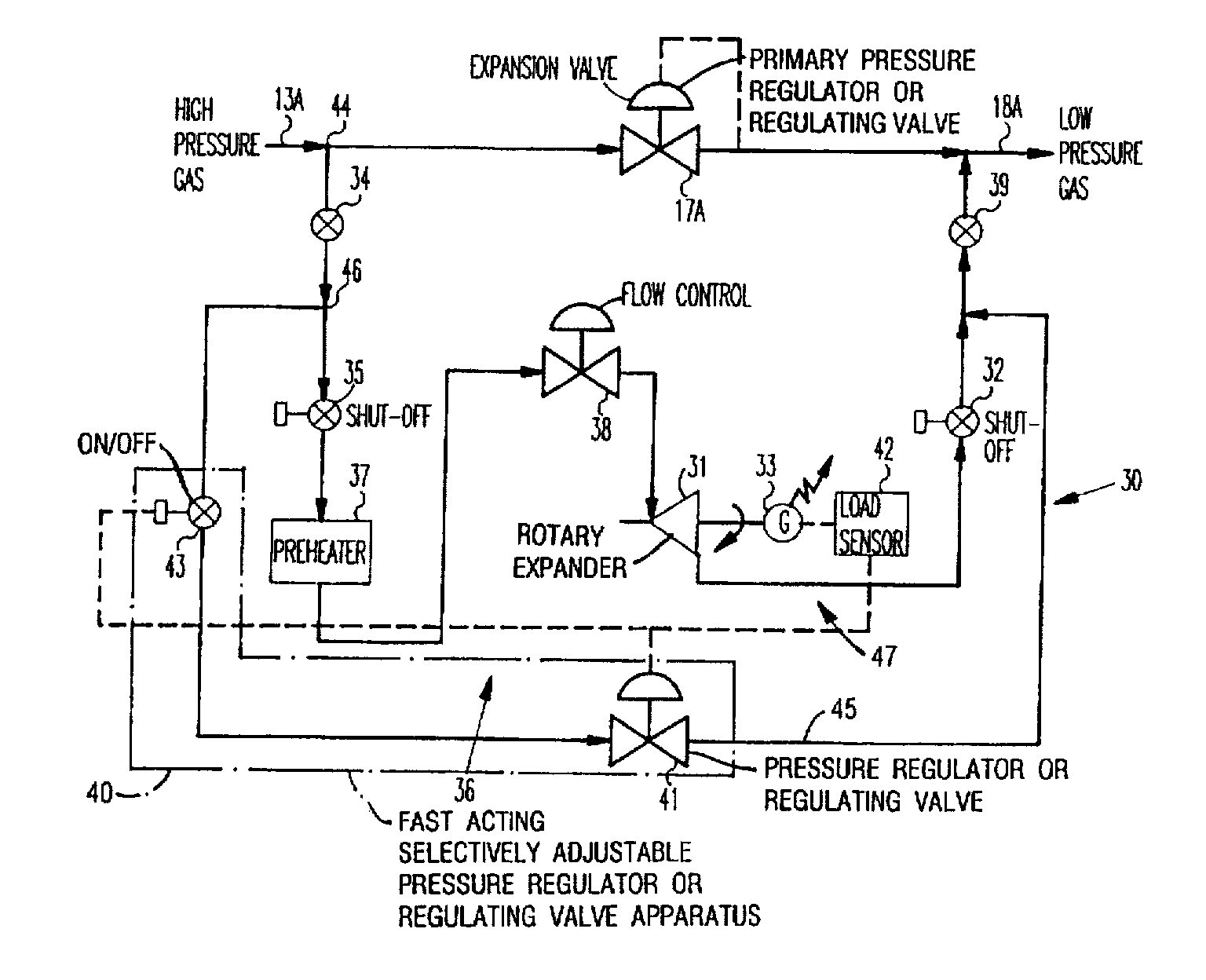

An energy recovery, pressure reducing system for reducing high pressure gas in a transmission pipeline to a low pressure gas in a consumer pipeline includes an expander system having at least one expander for expanding the high pressure gas and producing work and low pressure gas that is supplied to the consumer pipeline, and a generator coupled to said expander for converting the work to electricity which is supplied to an electrical load. The system further includes apparatus including an on/off valve serially connected to a pressure regulating valve, the apparatus being connected in parallel with the expander system. The on/off valve has an open state for effecting transmission of gas through the pressure regulating valve which has an adjustable flow control opening for throttling high pressure gas and producing low pressure gas when the on/off valve is in its open state; and a closed state for preventing transmission of gas through the pressure regulating valve. A control system is provided which is responsive to flow through the expander system for controlling the size of the flow control opening and the state of the on/off valve.
First Claim
Other Claims data not available
