Raisin harvesting apparatus and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 26, 1997
Grant Date -
N/A
app pub date -
Sep 8, 1994
filing date -
Sep 8, 1994
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

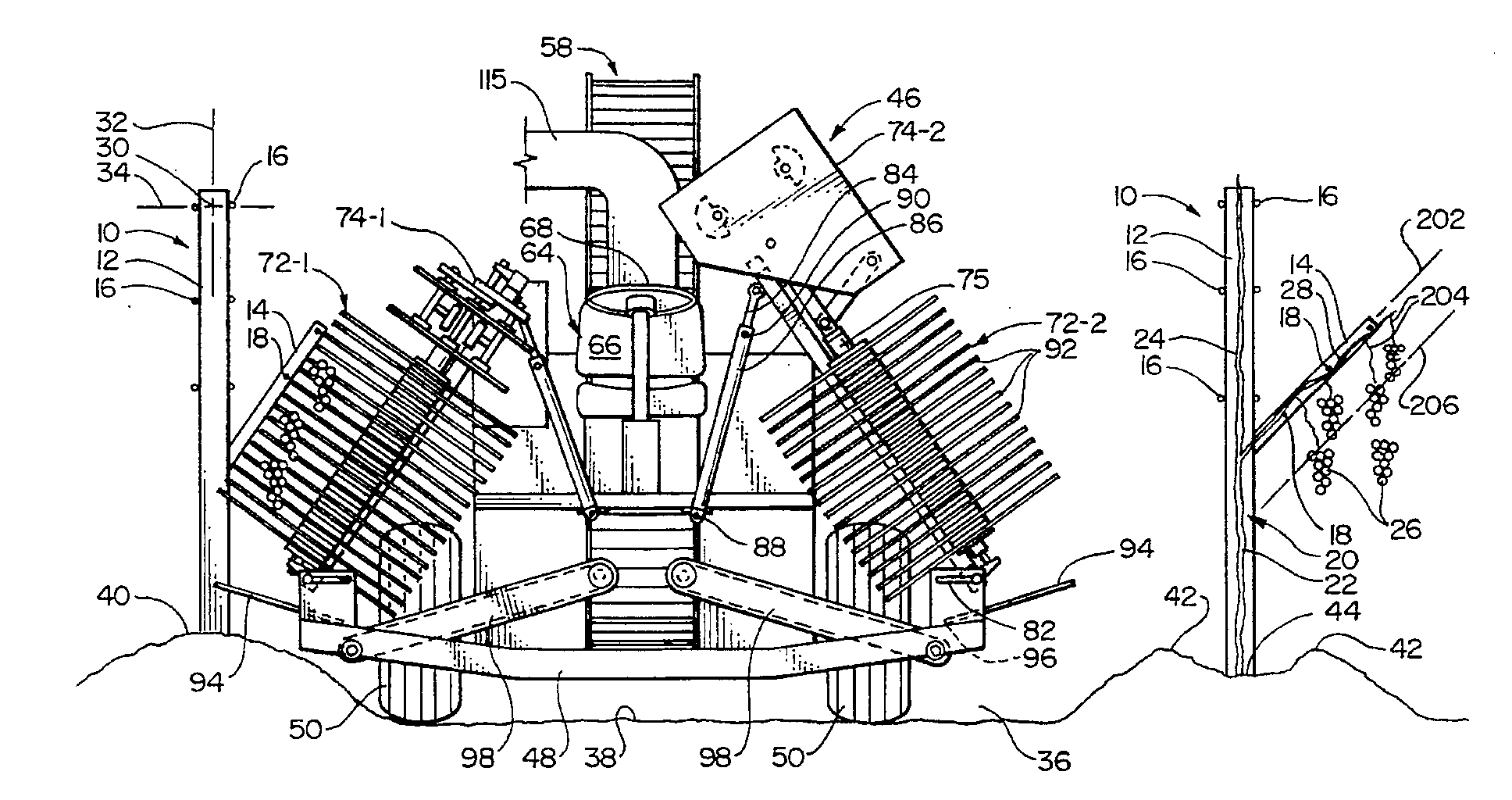

A raisin harvesting machine adapted to harvest raisins from vines where the raisin bunches are positioned in an upwardly and outwardly extending growing plane. The machine has a beater rod assembly which is positioned at a lateral slant so as to have a substantial alignment component parallel to growing zone of the raisins. In some embodiments, the machine moves along one row, the beater rod assembly moves into and out of the crop row in a harvesting motion. When the harvesting machine moves at an opposite direction along an adjacent row, the beater assembly is moved to an opposite side of the harvesting machine so as to be properly positioned to engage the raisins in the second crop row.
First Claim
Other Claims data not available
